Industrial cardboard double shaft shredder/waste wood pallet double shaft shredder machine
Type |
power |
Cutter Qty PCS |
reducer |
chamber mm |
feeding port |
overall size mm |
weight T |
capacity (T/h) |
WL-800 |
15kw*2 |
30 |
400 |
600*388 |
1000*766 |
1820*800*1930 |
2.1 |
0.5-0.8 |
WL-1000 |
22kw*2 |
20 |
500 |
640*588 |
1170*990 |
3260*1300*2370 |
3.5 |
1-1.5 |
WL-1200 |
37kw*2 |
30 |
355 |
1200*788 |
1600*1200 |
4700*2000*2700 |
8 |
2.5-3 |
WL-1500 |
55kw*2 |
30 |
400 |
1500*1188 |
1900*1450 |
5000*2200*2900 |
18 |
8-10. |
WL-1800 |
75KW*2 |
36 |
400 |
1800*1188 |
2300*1450 |
5300*2150*3000 |
20 |
12-15. |
WL-2000 |
90kw*2 |
24 |
450 |
2000*1188 |
2300*1500 |
5400*2150*3000 |
25 |
20-25. |
WL-2200 |
110kw*2 |
28 |
240 |
2200*1578 |
3100*2500 |
6200*2700*3500 |
33 |
26-30 |
WL-2400 |
132kw*2 |
24 |
240 |
2400*1678 |
3200*2600 |
7300*2800*3800 |
38 |
30-35. |
WL-2800 |
185kw*2 |
28 |
260 |
2800*2000 |
3700*3000 |
7800*2800*3800 |
45 |
35-40 |
Industrial waste shredder
1. Fishing rope
2. paper mill waste
3. medical scrap
4. plastic waste
5. Organics scrap
Double shaft shredder after the material crush into the chips, metal shredding equipment consists of shredder, conveyor,a magnetic separator,and filter bag dust removal,materials are shredded by shredder,then via conveyor, directly transported into metal crusher or secondary crushing, this will save the time and cost of secondary feeding,and is more conductive to improving the production efficiency, through these processing technologies, the recycling rate of waste material can reach more than 90%, which plays an important role in energy conservation and environmental proction, the entire production line is interlocking and closely connected, its an imprtant environmental equipment that is indipensable in the scrap metal recycling industry.
structure characteristics

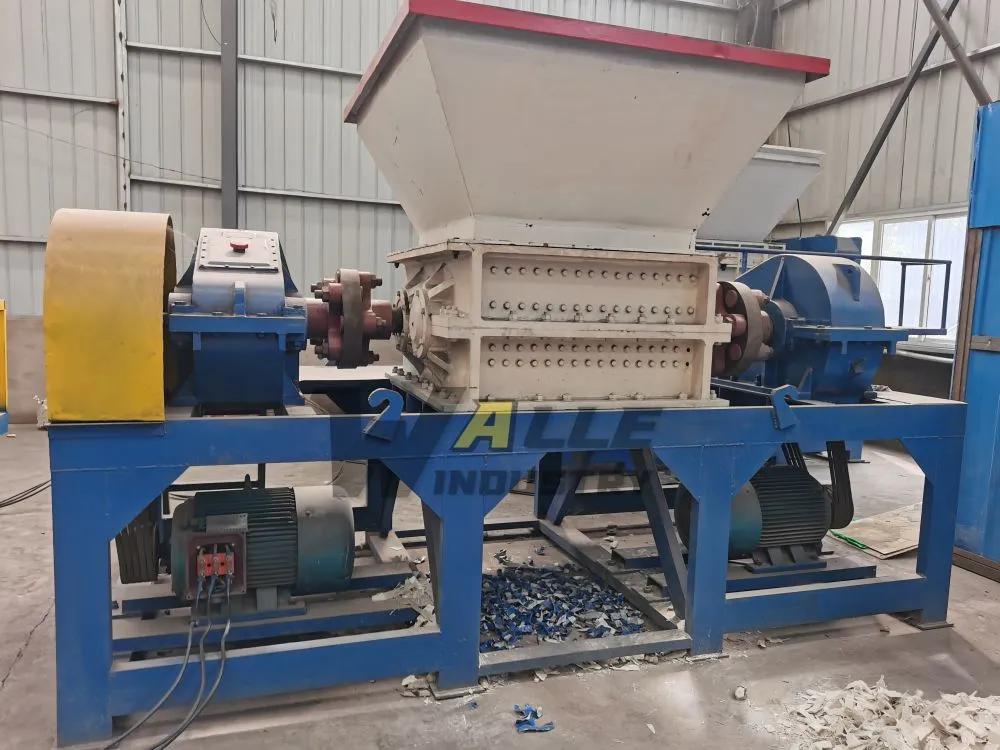

metal shredder mainly consist of motor, reducer,rotary cutter shaft, moving cutter,fixed cutter, frame,chamber legs ,ladder, handrail , there is fit the moving cutter on rotary shaft, the diameter of cutter, number of cutter is different as different model, the movable cutter is a recyclable cutter, which can be used again with the wire-cutting processing when being blunt, itts a claw flying cutter,the life time is long, and cutting ability is strong.
