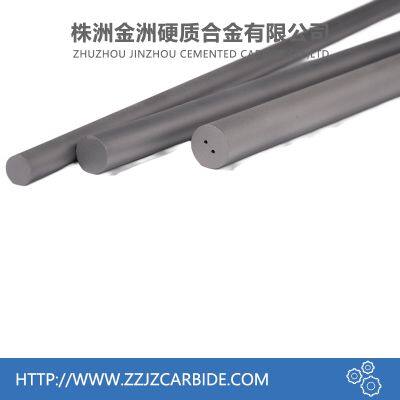

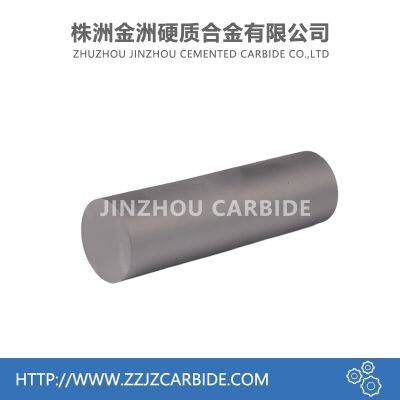

Solid Tungsten Carbide Rods for End Mills and Drills

Solid Tungsten Carbide Rods for End Mills and Drills thumbnail-1
Solid Tungsten Carbide Rods for End Mills and Drills thumbnail-2
Solid Tungsten Carbide Rods for End Mills and Drills thumbnail-3
Solid Tungsten Carbide Rods for End Mills and Drills photo-1
Solid Tungsten Carbide Rods for End Mills and Drills photo-2
Solid Tungsten Carbide Rods for End Mills and Drills photo-3
US$ 250 - 255 MOQ: 5 Kilograms
Key Specifications
Get Latest Price
Brand Name:
Jinzhou
Place of Origin:
China
Model Number:
330mm Solid Tungsten Carbide Rods
Contact Supplier Request Quote Chat Now
Zhuzhou Jinzhou Cemented Carbide Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jinzhou
Place of Origin China
Model Number 330mm Solid Tungsten Carbide Rods
Particle Medium Grain
Alloy Specification Diameter: 0.7mm~50mm, Standard Length: 310mm and 330mm, also can be customized.

Tungsten carbide rod, with good wear resistance and bending strength, can be used to manufacture tungsten carbide end mills, drills, reamers, taps, engraving knives, printed circuit boards special cutter, automobile special cutter, special cutter for engine and watch processing, and can also be made hard metal punches, dead center, core rod, perforating tool,anti-vibration boring bar.


Product Features:


  • 1. Adopting spray drying tower to prepare raw materials, with low oxygen content, high purity and even density.

  • 2. Adopting advanced automatic extrusion equipment, accurate size, uniform density, high roundness and straightness, various types of bars can be produced.

  • 3. Adopting HIP sintering technology, all the properties are stable, the denseness and strength of the products are effectively improved.

  • 4. According to the customer's requirements for high-precision grinding of cemented carbide rods, up to the mirror effect, precision grinding rods tolerance grade h7/h6/h5.

  • 5. Diameter ranges from 0.3mm~50mm, Length below 1000mm available, can be customized according to your specification drawing.

  • 6. A variety of grades can be selected according to the application: YG8, YG10, YG15, YG20, YL10.2, YL10.2A, etc.

  • 7. Suitable for processing materials such as steel, cast iron, stainless steel, heat-resistant steel, nickel-based and titanium alloys.

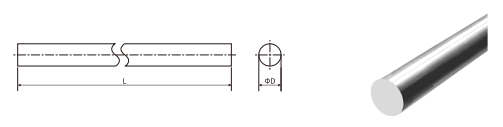

Specifications:

Type

Diameter

(mm)

Tol.of Diameter

(mm)

L

(mm)

Tol.of Length

(mm)
φ0.7x330 0.7 +0.4/+0.15 330/310 0~+5.0
φ0.9x330 0.9 +0.4/+0.15 330/310 0~+5.0
φ1.0x330 1.0 +0.4/+0.15 330/310 0~+5.0
φ1.2x330 1.2 +0.40/+0.20 330/310 0~+5.0
φ1.5x330 1.5 +0.40/+0.20 330/310 0~+5.0
φ1.6x330 1.6 +0.40/+0.20 330/310 0~+5.0
φ1.8x330 1.8 +0.40/+0.20 330/310 0~+5.0
φ2.0x330 2.0 +0.40/+0.20 330/310 0~+5.0
φ2.3x330 2.3 +0.40/+0.20 330/310 0~+5.0
φ2.5x330 2.5 +0.40/+0.20 330/310 0~+5.0
φ2.8x330 2.8 +0.40/+0.20 330/310 0~+5.0
φ3.0x330 3.0 +0.50/+0.20 330/310 0~+5.0
φ3.5x330 3.5 +0.50/+0.20 330/310 0~+5.0
φ4.0x330 4.0 +0.50/+0.20 330/310 0~+5.0
φ4.5X330 4.5 +0.50/+0.20 330/310 0~+5.0
φ5.0X330 5.0 +0.50/+0.20 330/310 0~+5.0
φ5.5X330 5.5 +0.50/+0.20 330/310 0~+5.0
φ6.0X330 6.0 +0.40/+0.20 330/310 0~+5.0
φ6.5X330 6.5 +0.50/+0.20 330/310 0~+5.0
φ7.0X330 7.0 +0.60/+0.20 330/310 0~+5.0
φ7.5X330 7.5 +0.60/+0.20 330/310 0~+5.0
φ8.0X330 8.0 +0.60/+0.20 330/310 0~+5.0
φ8.5X330 8.5 +0.60/+0.20 330/310 0~+5.0
φ9.0X330 9.0 +0.60/+0.20 330/310 0~+5.0
φ9.5X330 9.5 +0.60/+0.20 330/310 0~+5.0
φ10.0X330 10.0 +0.60/+0.20 330/310 0~+5.0
φ10.5X330 10.5 +0.60/+0.20 330/310 0~+5.0
φ11.0X330 11.0 +0.60/+0.20 330/310 0~+5.0
φ11.5X330 11.5 +0.60/+0.20 330/310 0~+5.0
φ12.0X330 12.0 +0.60/+0.20 330/310 0~+5.0
φ12.5X330 12.5 +0.70/+0.30 330/310 0~+5.0
φ13.0X330 13.0 +0.70/+0.30 330/310 0~+5.0
φ14.0X330 14.0 +0.70/+0.30 330/310 0~+5.0
φ15.0X330 15.0 +0.70/+0.30 330/310 0~+5.0
φ16.0X330 16.0 +0.70/+0.30 330/310 0~+5.0
φ17.0X330 17.0 +0.80/+0.30 330/310 0~+5.0
φ18.0X330 18.0 +0.80/+0.30 330/310 0~+5.0
φ19.0X330 19.0 +0.80/+0.30 330/310 0~+5.0
φ20.0X330 20.0 +0.80/+0.30 330/310 0~+5.0
φ21.0X330 21.0 +0.80/+0.30 330/310 0~+5.0
φ22.0X330 22.0 +0.80/+0.30 330/310 0~+5.0
φ23.0X330 23.0 +0.80/+0.30 330/310 0~+5.0
φ24.0X330 24.0 +0.80/+0.30 330/310 0~+5.0
φ25.0X330 25.0 +0.80/+0.30 330/310 0~+5.0
φ26.0X330 26.0 +0.80/+0.30 330/310 0~+5.0
φ27.0X330 27.0 +0.80/+0.30 330/310 0~+5.0
φ28.0X330 28.0 +0.80/+0.30 330/310 0~+5.0
φ29.0X330 29.0 +0.80/+0.30 330/310 0~+5.0
φ30.0X330 30.0 +0.80/+0.30 330/310 0~+5.0
φ31.0X330 31.0 +1.20/+0.60 330/310 0~+5.0
φ32.0X330 32.0 +1.20/+0.60 330/310 0~+5.0
φ33.0X330 33.0 +1.20/+0.60 330/310 0~+5.0
φ34.0X330 34.0 +1.20/+0.60 330/310 0~+5.0
φ35.0X330 35.0 +1.20/+0.60 330/310 0~+5.0
φ36.0X330 36.0 +1.20/+0.60 330/310 0~+5.0
φ37.0X330 37.0 +1.20/+0.60 330/310 0~+5.0
φ38.0X330 38.0 +1.20/+0.60 330/310 0~+5.0
φ39.0X330 39.0 +1.20/+0.60 330/310 0~+5.0
φ40.0X330 40.0 +1.20/+0.60 330/310 0~+5.0
φ41.0X330 41.0 +1.20/+0.60 330/310 0~+5.0
φ42.0X330 42.0 +1.20/+0.60 330/310 0~+5.0
φ43.0X330 43.0 +1.20/+0.60 330/310 0~+5.0
φ44.0X330 44.0 +1.20/+0.60 330/310 0~+5.0
φ45.0X330 45.0 +1.20/+0.60 330/310 0~+5.0
φ46.0X330 46.0 +1.20/+0.60 330/310 0~+5.0
φ47.0X330 47.0 +1.20/+0.60 330/310 0~+5.0
φ48.0X330 48.0 +1.20/+0.60 330/310 0~+5.0
φ49.0X330 49.0 +1.20/+0.60 330/310 0~+5.0
φ50.0X330 50.0 +1.20/+0.60 330/310 0~+5.0


Product Tags: solid carbide rods , cemented carbide rods , carbide rod with coolant hole , tungsten carbide rods , carbide round bar , polished carbide rods , unground carbide rods , carbide rods blank
