Alpha Powder - Sealed Conveying Valve

Alpha Introduction:

Our company specializes in the research and development and production of high sealing AB valves that meet the OEB4 and OEB5 levels, solving the problem of powder transfer for the pharmaceutical industry.

Manual and fully automatic AB valve We have mature solutions for various usage nodes of the entire closed line that meet the OEB5 level

We have very strict requirements for our products, and each process has mature quality standards and controllable measures to ensure that our products achieve international first-class standards.

As valve enthusiasts, we never stop exploring, creating, and innovating, always striving for our hearts and persevering.

Product Introduction:

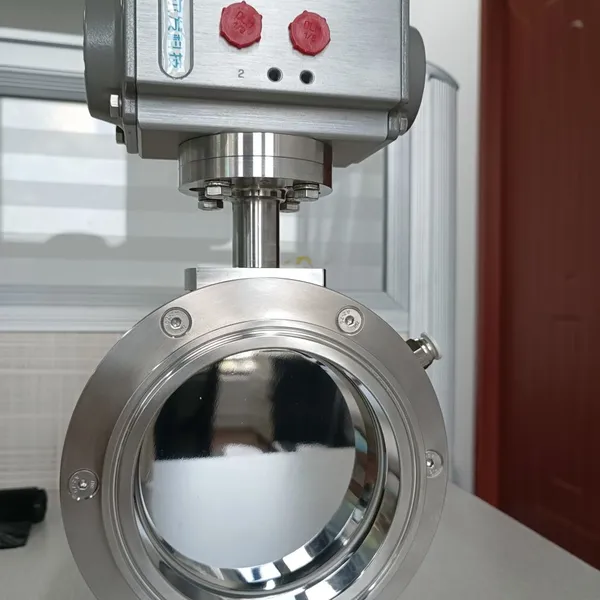

Alpha series split butterfly valve, also known as SBV butterfly valve.

Alpha αβ valve, composed of active and passive valves, it is used for material sealing, sterile transportation, avoiding cross contamination, and effectively protecting operators and the operating environment. Suitable for loading, unloading, batching, crushing, sampling, etc. under isolated conditions.

During the docking loading and unloading process, the active valve and passive valve are connected as a whole. After opening the butterfly valve, the docking and distribution of materials are carried out; After the material distribution is completed, the butterfly valve is closed. After loosening the fastening handle, the active and passive valves can be separated, and each equipment can be sealed and transported separately to ensure isolation.

Alphaαβ valve can reach OEB5 level, and relevant testing certificates and other documents can be provided to meet the needs of high-end customers at home and abroad Product Advantage：

1. Alpha split isolated valve dust leakage limit OEL<1 μ g/m 3 (isolation level OEB5), adding a vacuum cleaner can increase the isolation performance by an average of 35%;

2. Proven mature technology, with a maximum allowable deviation of ± 14mm for active valves;

3.180 ° symmetrical design, flexible docking position;

4. Modular design of material contact components, easy to replace;

5. Integrated design of buffer, high degree of valve matching, easy to operate and maintain;

6. Customized, integrated, and highly automated to meet high-end needs.

Size series:

DN50/100/150/200/250/300
