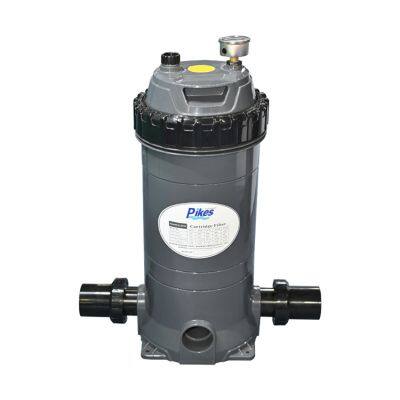

Pikes High Quality Recycled Cartridge Filter Paper Core New for Bathtub and Swimming Pool Critically Effective Pool Filters
US$ 48 - 48
MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1999
Total Employees:
101 - 200 People
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pikes Lightweight Black Plastic Sand Filter for Sale Convenient Pool Tool & Accessory With Max Operating Pressure 28psi/2.0barUS$ 65 - 65MOQ: 1 Set -
Pikes New Products Cheap Plastic Sand Filter Lightly Convenient Black Plastic Sand Filter for SaleUS$ 65 - 65MOQ: 1 Set
-
Factory Supply Fiberglass 1.5'' Plastic Sand Filter With Multiport Valve Top/Side Mounted for Small Swimming PoolsUS$ 80 - 80MOQ: 1 Piece
-
Factory Supply 1.5'' Fiberglass Plastic Sand Filter With Multiport Valve Top/Side Mounted for Small Swimming PoolsUS$ 80 - 80MOQ: 1 Piece
-
Factory Supply 1.5'' Fiberglass Plastic Sand Filter With Multiport Valve for Small Swimming Pools Top/Side MountedUS$ 80 - 80MOQ: 1 Piece
Pikes High Quality Recycled Cartridge Filter Paper Core New for Bathtub and Swimming Pool Critically Effective Pool Filters
Cartridge filtration is an effective trouble-free proven method of filtration. Pool water enters the filter and passes through a polyester single element cartridge. Suspended particles are trapped and the water is returned to the pool. As the build-up of dirt in the element increases, so the water pressure rises and the flow decreases. When the pressure reaches an unacceptable level,the element must be removed and cleaned.
Products Description
Model No. | Filter Area (m³) | Connections | Max Flow Rate | A (mm) | B (mm) | C (mm) | ||
F25 | 2.25 | 1.5inch 50mm | 92lpm | 5.5m³/h | 445 | 387 | 225 | |
AF50 | 4.63 | 1.5inch 50mm | 190lpm | 11.4m³/h | 625 | 567 | 225 | |
AF75 | 7.00 | 1.5inch 50mm | 283lpm | 17.0m³/h | 805 | 747 | 225 | |
AF100 | 938 | 2.0inch 63mm | 382lpm | 22.9m³/h | 985 | 927 | 225 | |
AF150 | 13.72 | 2.0inch 63mm | 555lpm | 33.4m³/h | 1165 | 1107 | 225 | |
This cartridge filters is compact and light.The UV-resistant tank can prevent it from the demage of the sun. Its maximum pressure is 350 kPa/50psi.
Paper cartridge pool filters / cartridge for water treatment | ||||||||
Maximum Working Pressure | 300kPa/50psi/3.5bar | |||||||
Max flow rate | 5.5m3/h-40.9m3/h | |||||||
Valve connection | 1.5inch 50mm/2inch 63mm | |||||||
Filter area | 2.25m^2-16.83m^2 | |||||||
Maximum Water Temperature | 40°C(100F) | |||||||
Features
1) Compact and light
2) UV-resistant tank
3) Easy to service
4) Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element
5) Screw type air bleeder for easy removal of the trapped air inside the filter tank
6) High quality oil filled pressure gauge
2) UV-resistant tank
3) Easy to service
4) Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element
5) Screw type air bleeder for easy removal of the trapped air inside the filter tank
6) High quality oil filled pressure gauge
Functions
1. maximum working pressure: 250kPa/36psi/2.5bar
2. factory testing pressure: 400kPa/58psi/4.0bar
3. size of silica sand: 0.5-1.0mm
4. maximum filtration velocity: 50cbm/h/sq
5. maximum water temperature: 40 degree
2. factory testing pressure: 400kPa/58psi/4.0bar
3. size of silica sand: 0.5-1.0mm
4. maximum filtration velocity: 50cbm/h/sq
5. maximum water temperature: 40 degree
Product packaging
Our Service
Our Advantages
1) High quality with Low Price
2) Delivery in time short
3) Vibration resistant Easy to transport and install.
4) Body with excellent thermal managing design.
5) Different colors for your select.
Payment Terms
1) Payment:30% in advance,+70% balance should be paid before delivery.
2) Lead time:1x20ft for 20-25 days;1x40ft for 25-29 days
3) Port of loading:guangzhou, Mainland China.
4) Discounts are offered based on order quantities.
1) High quality with Low Price
2) Delivery in time short
3) Vibration resistant Easy to transport and install.
4) Body with excellent thermal managing design.
5) Different colors for your select.
Payment Terms
1) Payment:30% in advance,+70% balance should be paid before delivery.
2) Lead time:1x20ft for 20-25 days;1x40ft for 25-29 days
3) Port of loading:guangzhou, Mainland China.
4) Discounts are offered based on order quantities.
