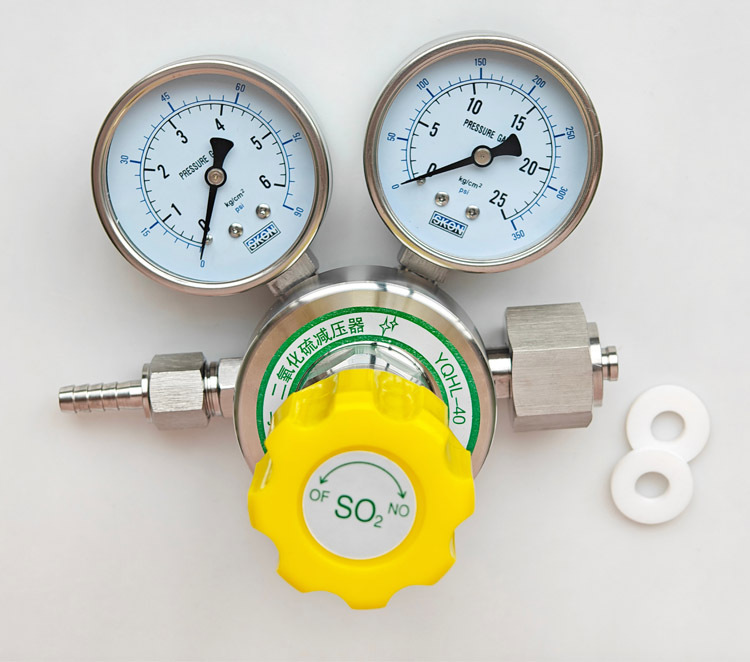

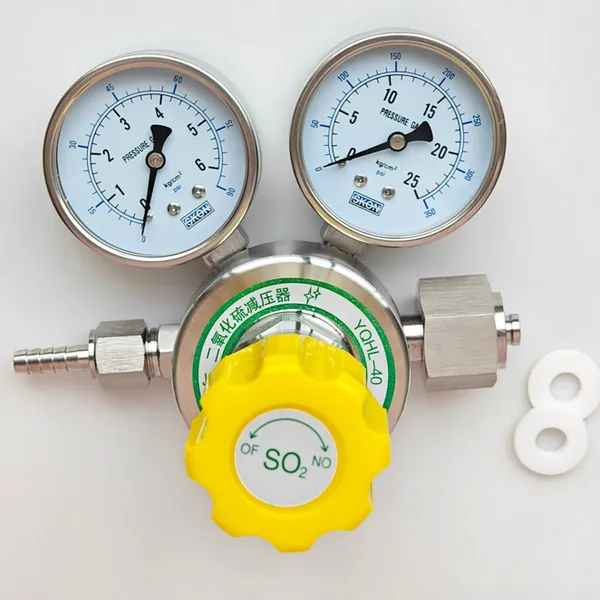

Stainless Steel Adjustable Gas Cylinder Pressure Reducer/Regulator, Sulfur Dioxide Pressure Reducing Valve

Stainless Steel Adjustable Gas Cylinder Pressure Reducer/Regulator, Sulfur Dioxide Pressure Reducing Valve

Model: YQHL - 40

Measurement Range: 0.01 - 0.4 (MPa)

Application: Sulfur Dioxide

Structure: Single-stage Type

**Basic Parameters**

- Name: Sulfur Dioxide Pressure Reducer

- Material: Stainless Steel

- Model: YQHL - 40

- Net Weight: 1.45 KG

- Medium: SO₂

- Input Pressure: 3 MPA

- Adjustment Range: 0.01 - 0.4 MPA

- Nominal Flow Rate: 10 L/MIN

- Inlet Connection Thread: G3/4

- Outlet Connection Thread: M16 × 1.5

- Features: High-quality stainless steel materials are used to forge various springs and gaskets, with a solid structure, being safe and reliable, and having strong sealing performance.

**Technical Parameters**

The sulfur dioxide pressure reducer is highly shockproof.

The structure of the pressure reducing valve is compact, equipped with a shockproof protective cover, which can effectively prevent shocks.

The sulfur dioxide pressure reducer is safe without gas leakage.

It is equipped with a unique sealing device, ensuring safe use and tight sealing without gas leakage.

The sulfur dioxide pressure reducer is resistant to pressure and impact.

The high-strength alloy/full-through valve body is resistant to pressure and impact, and is durable.

The sulfur dioxide pressure reducer has high accuracy.

It is equipped with double dial gauges which are closely integrated. The flow detection is precise and clear, and can be seen at a glance.
