7116C-60W Loudspeaker Acoustic Scanner

7116C-60W Loudspeaker Acoustic Scanner thumbnail-1
7116C-60W Loudspeaker Acoustic Scanner thumbnail-2
7116C-60W Loudspeaker Acoustic Scanner photo-1

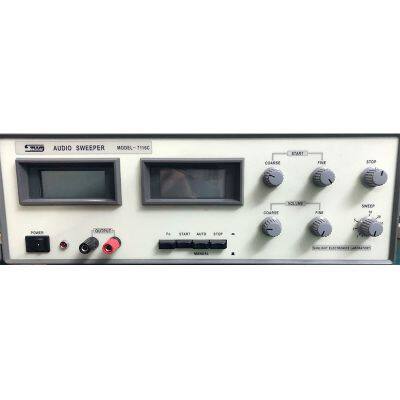

7116C-60W Loudspeaker Acoustic Scanner photo-2
US$ 1000 - 1100 MOQ: 1 Bag
Key Specifications
Get Latest Price
Brand Name:
SUNLILAB
Place of Origin:
Taiwan, China
Model Number:
8121c
Contact Supplier Request Quote Chat Now
Shenzhen BaiChuan Electronics Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
1 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUNLILAB
Place of Origin Taiwan, China
Model Number 8121c
Weight 7
Operating Temperature 7116c-60W
Supply Voltage 7116c-60W
Dimensions 7116c-60W
Display Type Other, 8121c
Accuracy Class 7116c-60W
Measuring Range 7116c-60W

 the spurious noise of the loudspeaker,headphone,loudspeaker system ... etc.,  suitable for use in production line, R&D, quality control and incoming parts inspection department.

  Low Distortion Sine Wave

THD

  Digital Display Voltmeter and Frequency Counter, complies the need for precise test.

 Has both manual and auto logarithmic sweeps. Allows random setting of start/stop  frequency  for  sweep  range.

  Simple to operate, non-experts can operate.

  Four kinds of  built-in power amplifier which are optional to buy. ( 20W, 60W, 100W  ). All designed with triple protection circuitries which permit long-term short circuit.  ( 200W includes both of Model-7116D and Model-160PD )

  High resolution ( 0.001V ) voltmeter :

Low voltage needed in testing the receiver & headphone can be obtained precisely by using coarse & fine volume control.

  With the supplement of frequency fine adjustment, the precise lowest resonant Fo value of Loudspeaker can be easily obtained.

  Excellent reliability :

With the accumulation of more than 20 years experience in professional design, 7116C has ultra low faulty rate, high reliability, can sustain whole day continuous testing.

Model - 7116C

Freq. Range :  20Hz～20 kHz in one range.
Freq. Response : ≦±0.25dB, 20Hz～20 kHz.
Sweep Mode : Manually or automatic log. sweep in one range. Setting spot ( random ) frequency also available.
Signal :  Sine wave, THD≦0.15%, (0.1% Typical.)( 20Hz ～ 20 kHz.)
Sweep Time: 0.3～40 second continuously adjustable.
Frequency Counter :  4 digits display.
Resolution :  1 Hz.
Accuracy :  ± 1 Hz.
Load Impedance : ≧ 3.2 Ω.
Voltmeter :  3¾ digits ,  Auto-ranging.
Low Range :  0.000v ～3.300v.
Resolution :  0.001v
High Range :  3.300v ～40.00v.
Resolution :  0.01v.
Accuracy :  ± 0.6%  of  reading  ± 2dgts.
Dimension : 36 (L) ×27 (D) ×13 (H) cm.
Net Weight :
7116C ( 20W ) : 6 KGS. ( Approx.)
7116C ( 60W ) : 8 KGS. ( Approx.)
7116C ( 100W ) : 10 KGS. ( Approx.)
Built-in Amplifier output voltage :

7116C  ( 20W )

7116C  ( 60W )

7116C  ( 100W )

8  Ohms

0 ~ 12.6 V

0 ~ 22.0 V

0 ~ 28.3 V

4  Ohms

0 ~ 9.0 V

0 ~ 15.5 V

0 ~ 20.0 V


Product Tags: Sweeper 7116c , Sweeper , SUNLILAB
