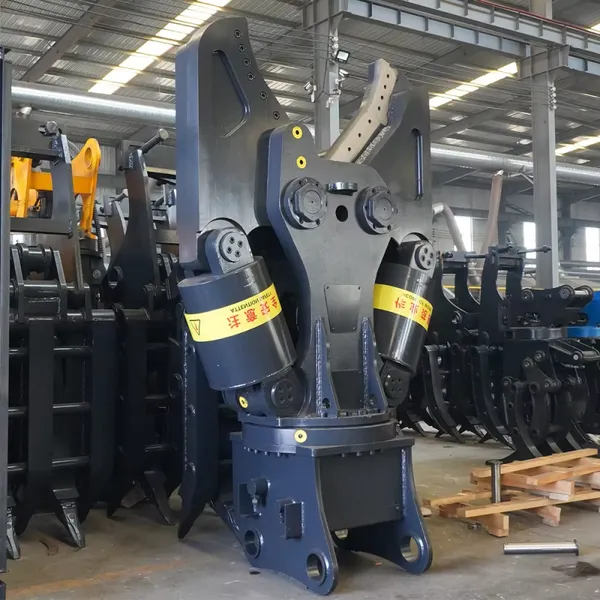

Double Cylinder Hydraulic Shear Crushing, Cutting, Dismantling, and Crushing Excavator Cutting Hydraulic Eagle Beak Scissors
CAD 2600 - 2600
MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Eagle Beak Cutter for Crushing Excavator Cutting Double Cylinder Hydraulic Shear for Crushing Cutting, and DismantlingUS$ 2600 - 2600MOQ: 1 Set -
Hydraulic Chickbeak Crusher Excavator Cutting Double Cylinder Hydraulic Shear Crushing, Cutting, DismantlingUS$ 2600 - 2600MOQ: 1 Set
-
Excavator Cutting Double Cylinder Hydraulic Shear Crushing, Cutting, Dismantling Demolition of BuildingsUS$ 2600 - 2600MOQ: 1 Set
-
Excavator Cutting Double Cylinder Hydraulic Shear Crushing, Cutting, Dismantling Demolition of BuildingsUS$ 2600 - 2600MOQ: 1 Set
-
Excavator Cutting Double Cylinder Hydraulic Shear Crushing, Cutting, Dismantling Demolition of BuildingsUS$ 2600 - 2600MOQ: 1 Set
Product Information
Excavator double cylinder hydraulic shear is a kind of tool installed on the excavator, which is mainly used for shearing and crushing various metal materials.
The hydraulic system of the excavator provides pressure oil to drive the expansion of the double hydraulic cylinder, so that the shear edges are close to or far away from each other, so as to realize the shear action of the metal material.
Model |
TD 100 |
TD 150 |
TD 290 |
TD 390 |
Weight（kg） |
500 |
1100 |
2850 |
3300 |
Opening length（mm） |
500 |
650 |
850 |
850 |
Blade length （mm） |
400 |
500 |
670 |
670 |
Height（mm） |
1360 |
1820 |
2350 |
2350 |
Width（mm） |
810 |
1080 |
1350 |
1350 |
Rated pressure（bar） |
180 |
240 |
300 |
300 |
Rated flow rate（lpm） |
180 |
230 |
260 |
380 |
Working pressure（bar） |
180 |
240 |
300 |
300 |
Suitable for excavators（ton） |
6-9 |
13-16 |
20-30 |
≥30 |
Product Show
Attention: When using the excavator dual cylinder hydraulic shear, the operator needs to undergo professional training and follow safety operating procedures to ensure the safety and efficiency of the operation.
Product Features
1.Strong shearing ability
The double-cylinder design can produce greater shear force than a single cylinder and can handle thicker and stronger metal structures.
2.Efficient operation
Quickly complete the cutting task and improve the construction efficiency.
3.Multi-functionality
Suitable for demolition of buildings, disassembly of scrapped vehicles, metal recycling and other working conditions.
4.Accurate control
With the operating system of the excavator, the operator can accurately control the position and force of the shear.
Product Details
Sharp blade
The unique shaped blade made of high toughness steel plate can be cut regardless of the thickness of the material.
Reasonably constructed
Efficient oil cylinders can enhance the shear force of the jaws and reduce opening and closing time, thereby improving production efficiency.
Durable and wear-resistant
The cutting body is made of imported HARD OX400 board, which has high toughness and wear resistance.
360 degree rotation
Using dedicated rotary support and motor, it can rotate 360 degrees, with flexible operation, high efficiency, stable performance, and high torque.
Product Application
1.Building demolition: Cut steel beams, steel bars and other building structural parts.
2.Scrap metal treatment: Cut large metal waste into sizes that are easy to transport and recycle.
3.Emergency rescue: In an emergency, cut obstacles to open up channels.
