Small Combination Copper Tube Double Cylinder Hydraulic Guillotine Metal Shear Scissor Machine
US$ 2600 - 2600
MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Equipment 360 Degree Rotation TD100 Excavator Double Cylinder Hydraulic ShearUS$ 2600 - 2600MOQ: 1 Set -
Cutting Quickly and Efficiently TD150 Safety Operating 100kg Double Cylinder Hydraulic ShearUS$ 2600 - 2600MOQ: 1 Set
-
Strong Shearing Ability TD290 Safety Greater Shear 300 Bar Rated Pressure Double Cylinder Hydraulic ShearUS$ 2600 - 2600MOQ: 1 Set
-
Efficient Operation 1350mm Quickly Complete Cutting Task TD390 Double Cylinder Hydraulic ShearUS$ 2600 - 2600MOQ: 1 Set
-
Multi-functionality 3300kg High Construction Efficiency 380lpm Double Cylinder Hydraulic ShearUS$ 2600 - 2600MOQ: 1 Set
Product Information

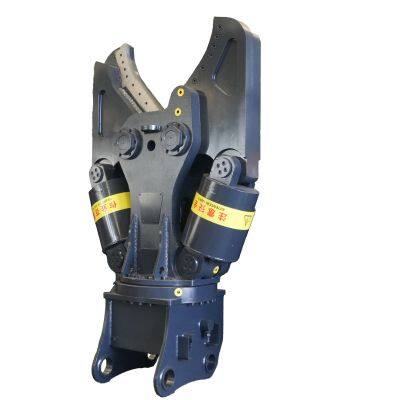

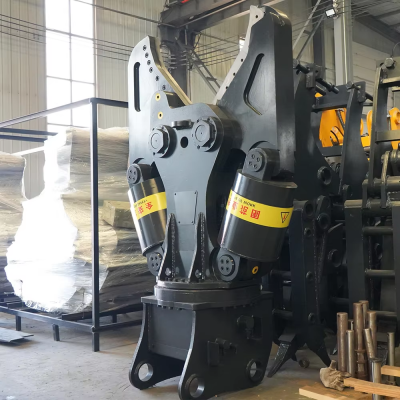

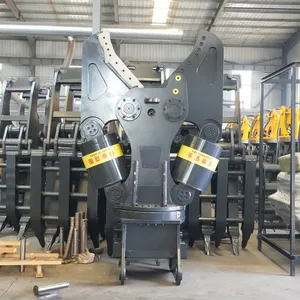

Excavator double cylinder hydraulic shear is a kind of tool installed on the excavator, which is mainly used for shearing and crushing various metal materials.
The hydraulic system of the excavator provides pressure oil to drive the expansion of the double hydraulic cylinder, so that the shear edges are close to or far away from each other, so as to realize the shear action of the metal material.
Model |
TD 100 |
TD 150 |
TD 290 |
TD 390 |
Weight（kg） |
500 |
1100 |
2850 |
3300 |
Opening length（mm） |
500 |
650 |
850 |
850 |
Blade length （mm） |
400 |
500 |
670 |
670 |
Height（mm） |
1360 |
1820 |
2350 |
2350 |
Width（mm） |
810 |
1080 |
1350 |
1350 |
Rated pressure（bar） |
180 |
240 |
300 |
300 |
Rated flow rate（lpm） |
180 |
230 |
260 |
380 |
Working pressure（bar） |
180 |
240 |
300 |
300 |
Suitable for excavators（ton） |
6-9 |
13-16 |
20-30 |
≥30 |
Product Show
Attention: When using the excavator dual cylinder hydraulic shear, the operator needs to undergo professional training and follow safety operating procedures to ensure the safety and efficiency of the operation.
Product Features
1.Strong shearing ability
The double-cylinder design can produce greater shear force than a single cylinder and can handle thicker and stronger metal structures.
2.Efficient operation
Quickly complete the cutting task and improve the construction efficiency.
3.Multi-functionality
Suitable for demolition of buildings, disassembly of scrapped vehicles, metal recycling and other working conditions.
4.Accurate control
With the operating system of the excavator, the operator can accurately control the position and force of the shear.
Product Details
Sharp blade
The unique shaped blade made of high toughness steel plate can be cut regardless of the thickness of the material.
Reasonably constructed
Efficient oil cylinders can enhance the shear force of the jaws and reduce opening and closing time, thereby improving production efficiency.
Durable and wear-resistant
The cutting body is made of imported HARD OX400 board, which has high toughness and wear resistance.
360 degree rotation
Using dedicated rotary support and motor, it can rotate 360 degrees, with flexible operation, high efficiency, stable performance, and high torque.
Product Application
1.Building demolition: Cut steel beams, steel bars and other building structural parts.
2.Scrap metal treatment: Cut large metal waste into sizes that are easy to transport and recycle.
3.Emergency rescue: In an emergency, cut obstacles to open up channels.
Packing & Delivery
Company Information
Shandong ZhongxXie Machinery Co., Ltd.
Shandong ZhongxXie Machinery Co., Ltd. was established in 2019 and is located in Shandong, China. It is a company that integrates research and development, production, international trade, e-commerce, network services, and logistics transportation.
Our current main products cover multiple categories such as excavators, bulldozers, drilling machinery, new energy photovoltaic pile drivers, rollers, loaders, cranes, forklifts, and tracked transport vehicles, providing you with excellent products and a good experience.
FAQ
Q: How is the quality of your products?
A: Our machines are manufactured strictly in accordance with national and international standards, and we test each device before delivery to ensure the normal use of the product
Q: How about the price?
A: We are a manufacturer that integrates research and development, production, and after-sales service. We can offer you more favorable prices.
Q: What should we do if there is a problem with the product?
A: Our engineers will analyze the problem for you and find the best solution.
Q: Do you provide OEM or ODM services?
A: Yes, we offer customized services where you can provide the necessary information to meet the diverse needs of global clients with different budgets.
Q: How to use this machine?
A: We will send you videos and operation manuals, and inform you how to use and maintain the machine.
