Widely Applicable Small Borehole Drilling Machine Easy Install and Remove Rotary Drilling for 1-36 Ton Excavator
US$ 650 - 650
MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Efficiency Compact in Size 70-310Bar Oil Pressure Excavator Hydraulic Earth Drill AugerUS$ 650 - 650MOQ: 1 Set -
Factory Manufacture 1.5ton Excavator Earth Auger Attachment Soil Drilling Auger Drilling MachineUS$ 650 - 650MOQ: 1 Set
-
Construction Machinery Attachments New Telescopic Earth Auger Hole Digging Spiral Drill MachineUS$ 650 - 650MOQ: 1 Set
-
High Quality Adjustment ZX Series Mini Excavator Attachment Hydraulic Earth Auger Drives for SaleUS$ 650 - 650MOQ: 1 Set
-
Factory Customized Strong Drilling Ability Mini Excavator Auger Post Hole Digger Drilling MachineUS$ 650 - 650MOQ: 1 Set
Product Information

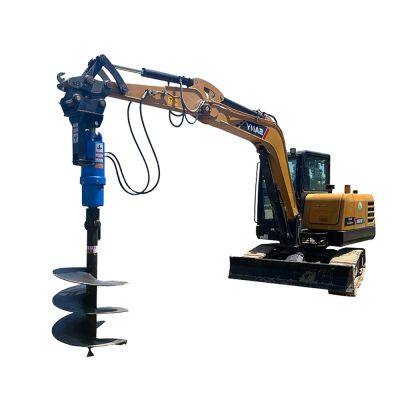

The spiral drill can replace the original drilling equipment in power pole drilling construction, tree planting, pit drilling, building pile driving drilling, and photovoltaic power generation drilling. Moreover, this equipment can achieve high efficiency, flexibility, safety, low cost, and multiple uses per machine. Using an excavator as a carrier, it can drill holes at any position within the diameter of the digging arm without moving the entire machine. It can drill vertically, at any angle, or horizontally, truly achieving efficient drilling and greatly reducing non drilling time.
Model | ZX-2000 | ZX-2500 | ZX-6000 | ZX-20000 | ZX-25000 |
Torque (Nm) | 639-2190 | 830-2847 | 1685-6057 | 13043-19564 | 16503-24755 |
Oil pressure (Bar) | 70-240 | 70-240 | 80-260 | 160-240 | 160-240 |
Oil flow (lpm) | 25-57 | 27-65 | 40-115 | 80-170 | 80-170 |
Speed (rpm) | 43-99 | 100-300 | 30-78 | 16-33 | 12-26 |
Height (mm) | 585 | 700 | 780 | 1100 | 1130 |
Diameter (mm) | 200 | 200 | 250 | 360 | 370 |
Weight (kg) | 70 | 150 | 130 | 280 | 290 |
Tonnage (Ton) | 1-2.5 | 1-3 | 4.5-6 | 13-20 | 15-22 |
Model | ZX-8000 | ZX-12000 | ZX-15000 | ZX-30000 | ZX-45000 |
Torque (Nm) | 2717-8152 | 3281-10662 | 5024-15071 | 20510-35323 | 23561-45624 |
Oil pressure (Bar) | 80-240 | 80-260 | 80-240 | 180-310 | 180-310 |
Oil flow (lpm) | 70-150 | 70-150 | 80-170 | 80-225 | 80-225 |
Speed (rpm) | 33-70 | 27-58 | 20-43 | 11-31 | 20-45 |
Height (mm) | 1000 | 1040 | 1060 | 1150 | 1411 |
Diameter (mm) | 270 | 330 | 350 | 370 | 442 |
Weight (kg) | 180 | 230 | 270 | 300 | 442 |
Tonnage (Ton) | 6-15 | 5-9 | 10-15 | 15-30 | 20-36 |
Product Show
Product Features
1.Strong drilling ability: can drilling under various geological conditions, including soil, rock, etc.
2.Efficient operation: improve the efficiency and speed of drilling with the power and flexibility of the excavator.
3.Adjustment: The length, diameter and angle of the auger can usually be adjusted according to the specific construction requirements.
4.Easy to install and remove: it can be quickly installed at the arm end of the excavator, and can be easily removed after use.

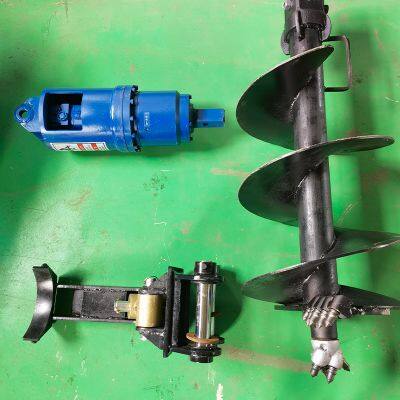

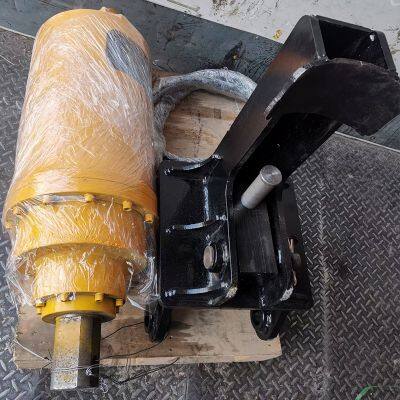

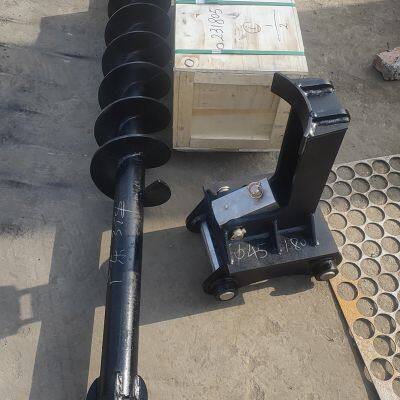

Product Details
The American hydraulic motor ensures strong power, and the two-stage planetary gearbox doubles efficiency, ensuring durability and reliabilit
Split type output shaft, allowing for easy replacement of drill rods of different lengths and diameters, making it easy to excavate various types of pits
The spacing between spiral blades is small, making mud removal more effective
The spacing between spiral blades is small, making mud removal more effective
Product Application
Widely used in scenarios such as steel sheet pile driving, photovoltaic pile driving, pit excavation, tree planting, drainage system drilling, pile foundation engineering drilling, etc
Packing & Delivery
Company Information
Shandong ZhongxXie Machinery Co., Ltd.
Shandong ZhongxXie Machinery Co., Ltd. was established in 2019 and is located in Shandong, China. It is a company that integrates research and development, production, international trade, e-commerce, network services, and logistics transportation.
Our current main products cover multiple categories such as excavators, bulldozers, drilling machinery, new energy photovoltaic pile drivers, rollers, loaders, cranes, forklifts, and tracked transport vehicles, providing you with excellent products and a good experience.
FAQ
Q: How is the quality of your products?
A: Our machines are manufactured strictly in accordance with national and international standards, and we test each device before delivery to ensure the normal use of the product
Q: How about the price?
A: We are a manufacturer that integrates research and development, production, and after-sales service. We can offer you more favorable prices.
Q: What should we do if there is a problem with the product?
A: Our engineers will analyze the problem for you and find the best solution.
Q: Do you provide OEM or ODM services?
A: Yes, we offer customized services where you can provide the necessary information to meet the diverse needs of global clients with different budgets.
Q: How to use this machine?
A: We will send you videos and operation manuals, and inform you how to use and maintain the machine.
