Strong Drilling Ability Reducing Non Drilling Time Hydraulic Excavator Mounted Rock Drilling
US$ 650 - 650
/ Set
1 Set(Min. Order)
- T/T Credit Card
You May Like
-
Efficient Operation High Efficiency and Speed Mini Excavator Drill Attachment Adjustment Bore Pile Drilling
-
Easy to Install and Remove Hydraulic Motor Excavator Rock Drilling Auger Strong Power Powerful Auger Drill
-
Convenient for On-site Transportation Hydraulic Excavator Rock Drill Easy Disassemble Rock Drill
-
Widely Applicable Excavator Mounted Drilling Rig Hydraulic Rock Dril Compact in Size Spiral Drill
-
Small Spacing Between Spiral Blades Stone Drilling Attachment for Excavator Effective Rotary Rock Drill
-
Durability Split Type Output Shaft Excavator Core Drilling Attachment Reliability Rotary Drilling Rig
Product Description
Product Information

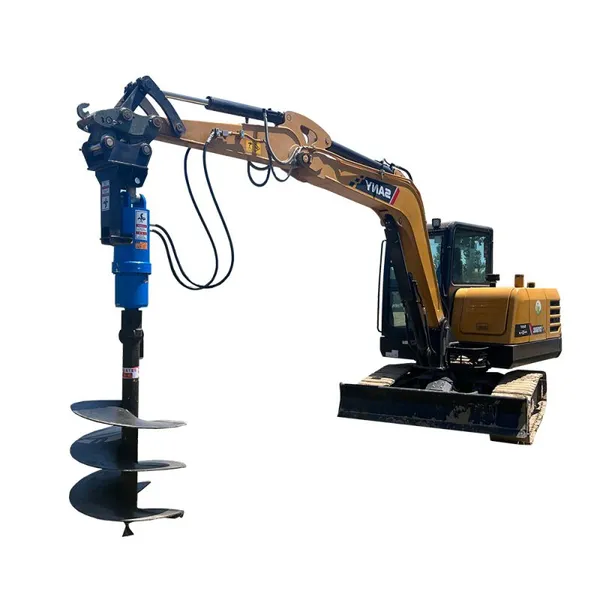

The spiral drill can replace the original drilling equipment in power pole drilling construction, tree planting, pit drilling, building pile driving drilling, and photovoltaic power generation drilling. Moreover, this equipment can achieve high efficiency, flexibility, safety, low cost, and multiple uses per machine. Using an excavator as a carrier, it can drill holes at any position within the diameter of the digging arm without moving the entire machine. It can drill vertically, at any angle, or horizontally, truly achieving efficient drilling and greatly reducing non drilling time.
Model | ZX-2000 | ZX-2500 | ZX-6000 | ZX-20000 | ZX-25000 |
Torque (Nm) | 639-2190 | 830-2847 | 1685-6057 | 13043-19564 | 16503-24755 |
Oil pressure (Bar) | 70-240 | 70-240 | 80-260 | 160-240 | 160-240 |
Oil flow (lpm) | 25-57 | 27-65 | 40-115 | 80-170 | 80-170 |
Speed (rpm) | 43-99 | 100-300 | 30-78 | 16-33 | 12-26 |
Height (mm) | 585 | 700 | 780 | 1100 | 1130 |
Diameter (mm) | 200 | 200 | 250 | 360 | 370 |
Weight (kg) | 70 | 150 | 130 | 280 | 290 |
Tonnage (Ton) | 1-2.5 | 1-3 | 4.5-6 | 13-20 | 15-22 |
Model | ZX-8000 | ZX-12000 | ZX-15000 | ZX-30000 | ZX-45000 |
Torque (Nm) | 2717-8152 | 3281-10662 | 5024-15071 | 20510-35323 | 23561-45624 |
Oil pressure (Bar) | 80-240 | 80-260 | 80-240 | 180-310 | 180-310 |
Oil flow (lpm) | 70-150 | 70-150 | 80-170 | 80-225 | 80-225 |
Speed (rpm) | 33-70 | 27-58 | 20-43 | 11-31 | 20-45 |
Height (mm) | 1000 | 1040 | 1060 | 1150 | 1411 |
Diameter (mm) | 270 | 330 | 350 | 370 | 442 |
Weight (kg) | 180 | 230 | 270 | 300 | 442 |
Tonnage (Ton) | 6-15 | 5-9 | 10-15 | 15-30 | 20-36 |

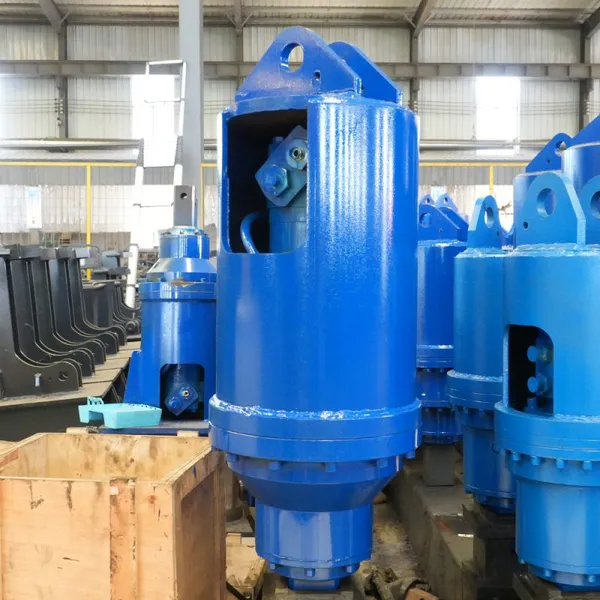

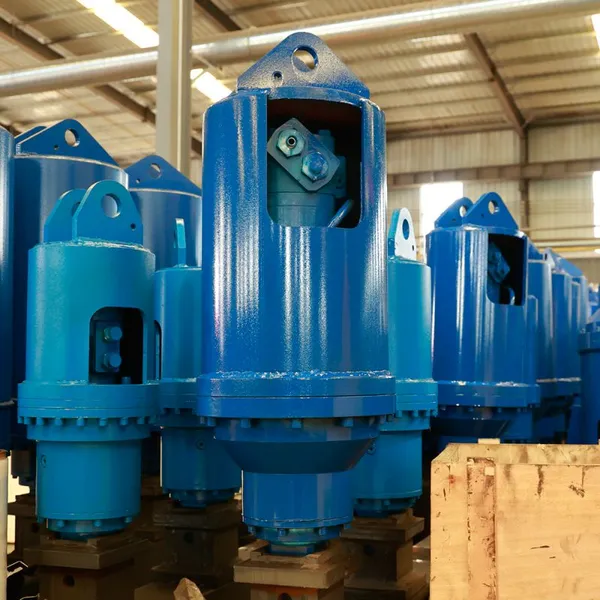

Product Show
Product Features
1.Strong drilling ability: can drilling under various geological conditions, including soil, rock, etc.
2.Efficient operation: improve the efficiency and speed of drilling with the power and flexibility of the excavator.
3.Adjustment: The length, diameter and angle of the auger can usually be adjusted according to the specific construction requirements.
4.Easy to install and remove: it can be quickly installed at the arm end of the excavator, and can be easily removed after use.
Product Details
The American hydraulic motor ensures strong power, and the two-stage planetary gearbox doubles efficiency, ensuring durability and reliabilit
Split type output shaft, allowing for easy replacement of drill rods of different lengths and diameters, making it easy to excavate various types of pits
The spacing between spiral blades is small, making mud removal more effective
The spacing between spiral blades is small, making mud removal more effective
Product Application
Widely used in scenarios such as steel sheet pile driving, photovoltaic pile driving, pit excavation, tree planting, drainage system drilling, pile foundation engineering drilling, etc
