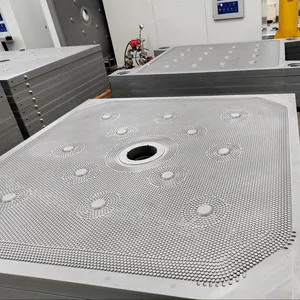

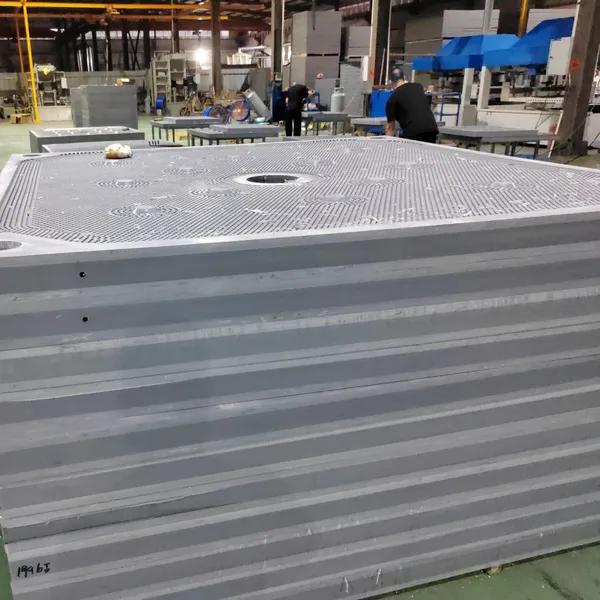

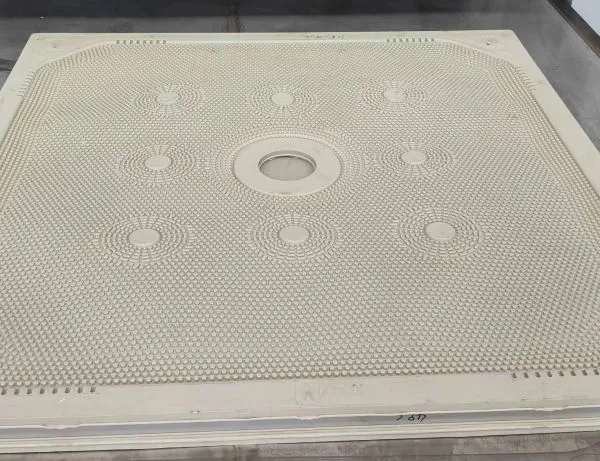

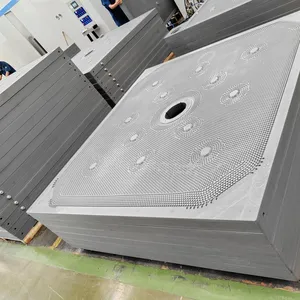

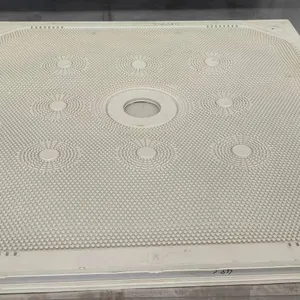

1200mm 1500mm Replaceable PP Membrane Squeeze Filter Presses and Filter Plates

FOB Price

US$ 100 - 600 / Piece

1 Piece(Min. Order)

Port shanghai,ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BOYAN	Place of Origin	China
Model Number	SHBYMFP	Material	PP
Size	470mm to 2000mm

Product Description

Main Features

1. Big pressing force(17-20MPa) can avoid leakage effectively.
2. Hydraulic station adopts motor, it is steady in operation.
3. Auto closing and auto opening.
4. Labor saving.
5. It specially apply to models with large capacity, it can ensure good filtering effect.

Application of Filter Press:
It is widely applied in many fields such as coal washing industry, petroleum industry, chemical industry, ceramic industry,
pharmacy, food industry, textile industry, printing and dyeing industry, paper making industry, waste water treatment industry
etc.

Working principle of Chamber Filter Press:

* 1. Slurry is pumped into the filter press. The solids are distributed evenly on the filter cloths during the feed (fill) cycle.
* 2. Solids begin to build on the filter cloth, trapping the ensuing particles and building a filter cake. The filter cake acts as a depth filter for solid/liquid separation. Filtrate exits the plates through the corner ports into the manifold.
* 3. When the correct valves in the manifold are open, the filtrate exits the press through the filtrate outlet. As the filter press feed pump builds pressure, the solids build within the chambers until they are completely full of filter cake.
* 4. Once the chambers are full, the fill cycle is complete and the filter press is ready to be emptied.

Key Advantages of Membrane Filter Presses:

Higher Filtration Efficiency:
Membrane filter presses achieve higher cake dryness compared to traditional filter presses, reducing the amount of liquid waste generated.
Shorter Cycle Times:
The addition of the membrane squeezing stage accelerates the filtration process, resulting in quicker cycle times and increased productivity.
Improved Cake Quality:
The membrane helps produce a more uniform and consistent filter cake, which can be easier to handle and dispose of.
Reduced Environmental Impact:
By producing drier filter cakes and reducing the volume of liquid waste, membrane filter presses can minimize the environmental impact of filtration processes.

The filter cake of the secondary diaphragm has low water content, easy discharge, convenient transportation, and saving transportation costs.
The secondary membrane filter plate can adapt to different feed rates to ensure the moisture content of the filter cake.
It can shorten the filtration time, save power consumption, and increase filtration efficiency and processing capacity.
Separate diaphragm design, the diaphragm has a long operating life, low maintenance cost, and high economic efficiency.
Equipped with PLC control system and man-machine interface, easy operation and high degree of automation.

Model	Number of Filter Plate	Filter Area (m²)	Filter Chamber Volume (L)	Filter Plate Size (mm)	Filter Plate Thickness (T)	Hydraulic Oil Pump (hp)	Equipment Dimensions LWH (mm)
BY-50	N	0.4*(N-1)	7*(N-1)	500*500	50	3HP	N(T+1)+2200710*1680
BY-63	N	0.62*(N-1)	9.25*(N-1)	630*630	60	3HP	N(T+1)+2700950*1780
BY-80	N	1.06*(N-1)	15.32*(N-1)	800*800	60	3HP	N(T+1)+27501250*1980
BY-100	N	1.62*(N-1)	23.64*(N-1)	1000*1000	60	5HP	N(T+1)+27501550*2100
BY-120	N	2.42*(N-1)	36*(N-1)	1200*1200	70	7.5HP	N(T+1)+28001850*2100
BY-160	N	4.21*(N-1)	65*(N-1)	1600*1600	75	10.5HP	N(T+1)+38002150*2300
BY-200	N	7.22*(N-1)	144*(N-1)	2000*2000	80	15HP	N(T+1)+43003000*2500
