Product Description

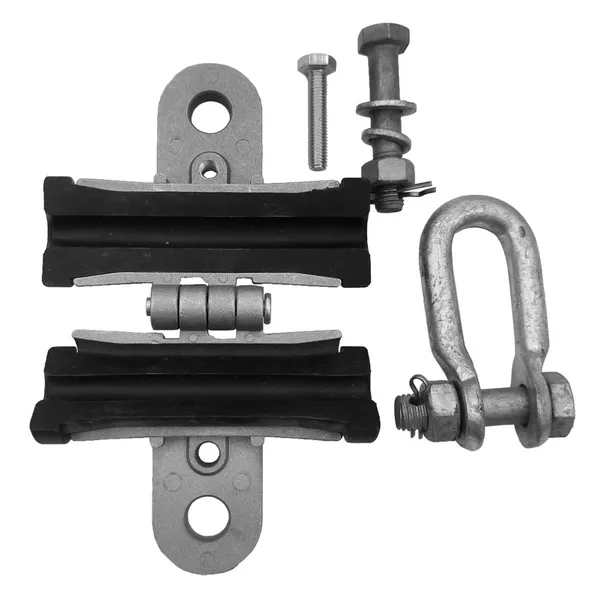

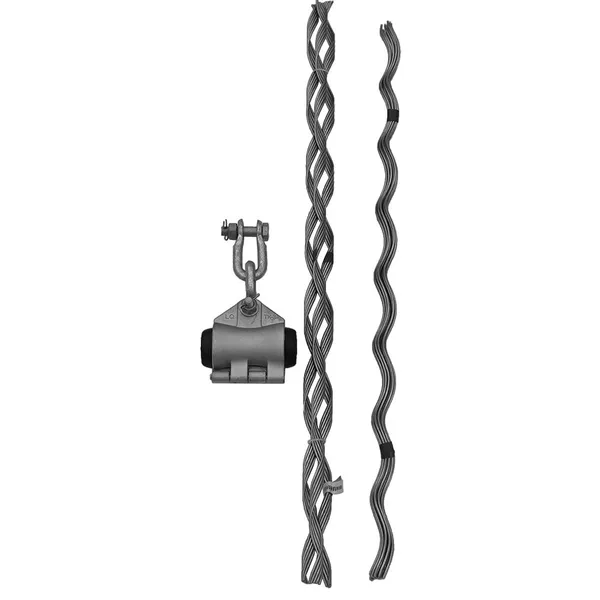

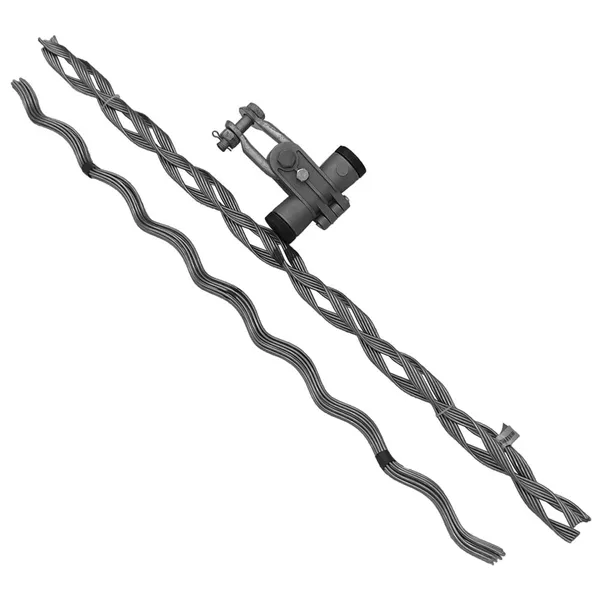

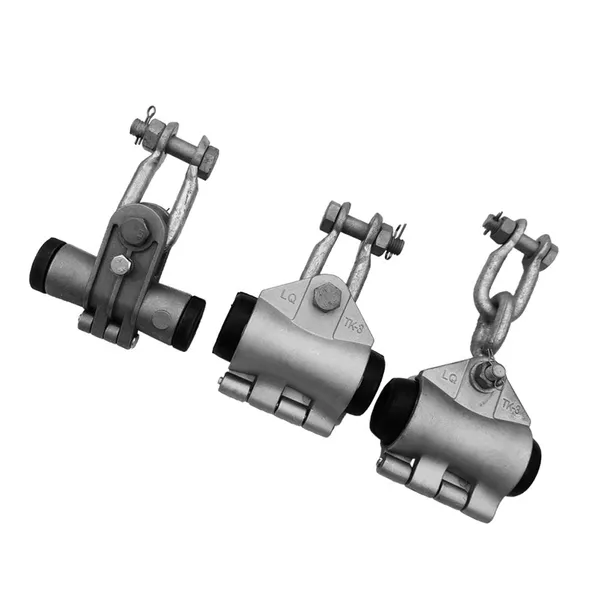

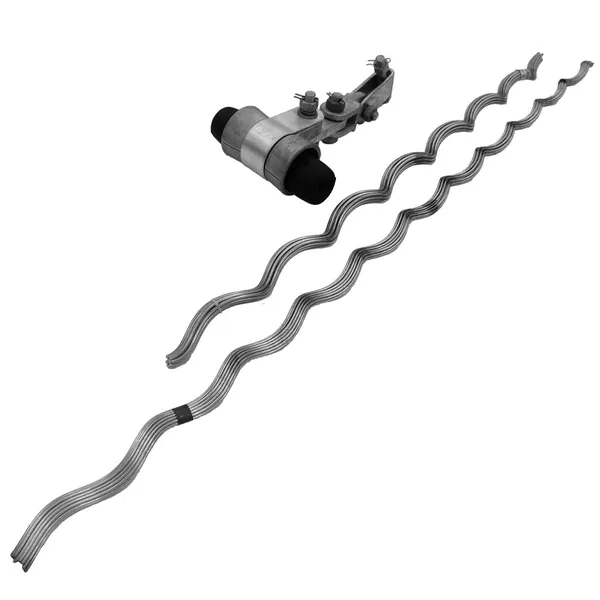

Composition: pre-twisted wire, rubber clamp block, sleeve, ZH right angle hanging ring, U-shaped hanging ring, bolt, nut, etc
Function: It mainly serves as a support and suspends ADSS optical cables on towers with line corners
Differentiation: The difference between tangent line clamp and suspension line clamp is that the tangent line clamp does not have a ZH hanging ring and an outer pre-twisted wire
Applicable scope
The model can be selected based on the fiber optic cable diameter and line span tension design. It can be used with clamps for pole lines or with tower connectors for tower lines
Characteristic
a. The suspension clamp has a large contact area with ADSS optical cable, with uniform stress distribution and no stress concentration points. At the same time, it enhances the stiffness of the optical cable at the hanging point position, providing better protection.
b. Has good dynamic stress tolerance and can provide sufficient gripping force to protect ADSS optical cables from safe operation under unbalanced load conditions.
c. This structure is equipped with flexible rubber clamps to enhance self damping and reduce wear.
d. End rounding treatment has increased the corona initiation voltage.
e. The high-quality aluminum alloy material improves the mechanical and anti-corrosion properties of the wire clamp, greatly extending its service life.
Ordering Notice
a. Select appropriate suspension clamps based on the operating span, outer diameter, ultimate tensile strength, and other parameters of ADSS optical cables.
b. The quantity configuration is: 1 set/tower with a line angle less than 25 °.
c. In order to meet the needs of installing ADSS optical cables on 10kV distribution lines in urban networks, our company has developed and produced suspension clamps suitable for spans of 150 meters and up to 1200 meters. It has a simple structure, convenient installation, and can reduce project costs.
ADSS optical cable with small pitch pre-twisted tangential clamp selection table
| Product specification | Applicable optical cable diameter(mm) | Pre-twisted wire length (mm) | Weight(kg) | Applicable span (≤ m) |
| LAXJ-100-10.0 | 9.0-10.0 | 0.8 | 100 | |
| LAXJ-100-11.0 | 10.01-11.0 | 0.8 | 100 | |
| LAXJ-100-12.0 | 11.01-12.0 | 0.8 | 100 | |
| LAXJ-100-13.0 | 12.01-13.0 | 0.8 | 100 | |
| LAXJ-100-14.0 | 13.01-14.0 | 0.8 | 100 | |
| LAXJ-100-15.0 | 14.01-15.0 | 0.8 | 100 | |
| LAXJ-100-16.0 | 15.01-16.0 | 0.8 | 100 | |
| LAXJ-150-9.4 | 9.0-9.4 | 800 | 1.0 | 150 |
| LAXJ-150-10.4 | 9.5-10.4 | 800 | 1.0 | 150 |
| LAXJ-150-11.5 | 10.5-11.5 | 800 | 1.1 | 150 |
| LAXJ-150-12.4 | 11.6-12.4 | 800 | 1.02 | 150 |
| LAXJ-150-13.4 | 12.5-13.4 | 800 | 1.05 | 150 |
| LAXJ-150-14.2 | 13.5-14.2 | 800 | 1.05 | 150 |
| LAXJ-150-14.9 | 14.3-14.9 | 800 | 1.1 | 150 |
| LAXJ-150-15.9 | 15.0-15.9 | 800 | 1.1 | 150 |
