Distillation machine for refine waste motor engine oil to diesel refinery plant with solid catalyst technology

FOB Price

USD $56000 - $65000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Shanghai/Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DOING	Place of Origin	China
Model Number	DY-D-1/3/5/10 /14	Use	Other
Certification	Other, CE, ETL, GS, ROHS, UL, UR, ISO, SGS	After-sales Service Provided	Overseas service center available
Dimension(LWH)	20127m	Fuel	Other
Condition	New	Power(W)	20-35kw
Material	Metal / Coil	Industry Used	Other
Cleaning Type	Burn-Off / Thermal System	Cleaning Process	Acid Cleaning / Pickling

Product Description

Converting used motor oil to diesel fuel processor can convert used motor oil to diesel fuel. This new way of processing used motor oil not only solves the hidden danger to the environment caused by used motor oil, but also realizes the reuse of motor oil resources. - See more at: http://192.168.88.85:81/index.php?u=show-1372.html#sthash.Wx7v6siu.dpuf

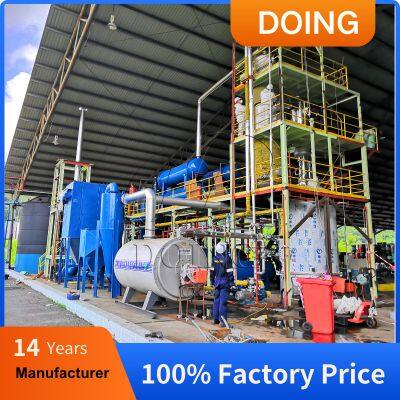

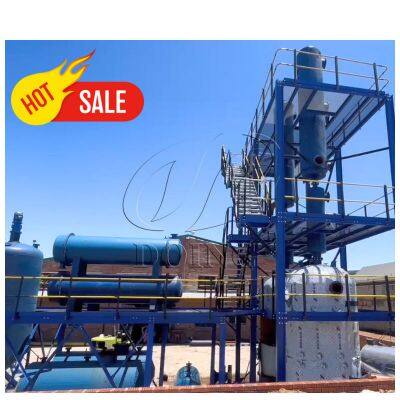

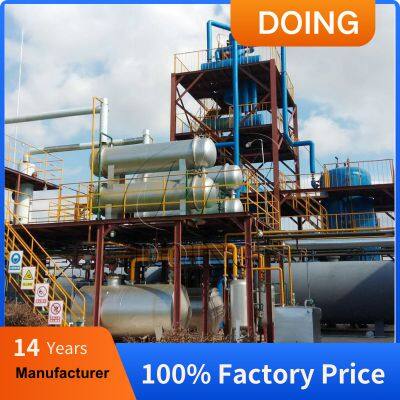

Used Engine Oil Distillation Plant

Used engine oil refining plant can process waste engine oil, used motor oil, black oil, tire oil, plastic oil to clean diesel and asphalt. And it’s worth mentioning that the diesel oil recovery average rate of Doing Company’s refining plant is as high as 80%-90% This equipment is matched with pyrolysis plant. It is widely applied in waste oil management industry. And its unique design and outstanding functions can help customer obtain considerable profit!

PRODUCT SPECIFICATIONS

Items	Contents
Model	DY-500KG, DY-1T, DY-5T, DY-10T, DY-15T, DY- 20T...
Raw material	used motor oil, waste engine oil, tire pyrolysis oil, plastic pyrolysis oil
Structure form	Vertical (easy cleaning and maintenance)
Heating method	Indirect heating to prolong the machine service life
Operating pressure	Constant pressure
Heating material	Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate	95%
Material of reactor	4 reactor with different durable materials
Thickness of reactor	18mm
Mode of cooling	Recycled water cooling
Power in total	20 Kw
Service life	average 7 years
Land area	180 square meters

Pyrolysis/Waste Oil to Diesel Recycling Process

Equipment application&Final Products

Profit Analysis

Project Case

Why Choose US

FAQ

Q: Are there any bad smell or odor from DOING used motor oil to diesel distillation plant while distillation system is working?
A: There will be no smell at all as the gas produced by DOING pyrolysis oil distillation plant will be purified by our exclusive tail gas purification unit before emission.

Q: What is the yield of this used motor oil to diesel distillation plant?
A: Typically the yield of our pyrolysis oil distillation plant is between 85-90% (depending on variations of water content, light HC and others ingredients from waste oil.)

Q: How many areas are required to build the used motor oil to diesel distillation plant?
A: The land area required usually depends on the capacity of your plant. We can calculate the area needed and give you the plant designs.

Q: What is the warranty of the used motor oil to diesel distillation plant?
A: 12 months free guanantee and life long standard paid service.

Q: Can you install the production line and train our stuffs?
A: Yes we can. We'll send engineers to help you install the pyrolysis oil distillation plant and train your workers until the machine is skillfully operated.
