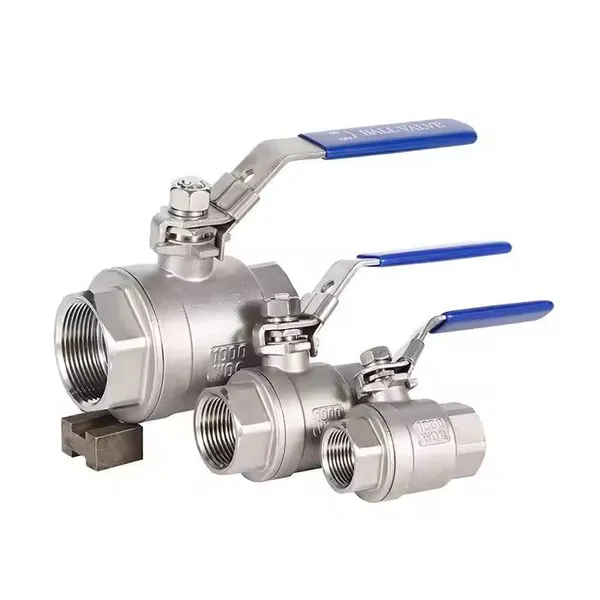

1000wog 2PCS Stainless Steel 304 316L Ball Valve With Threaded End
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2006
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2PC CF8M and WCB Material Screwed End 1000WOG Ball ValvesNegotiableMOQ: 1 Ton -
API 6D Flange 2 Piece Cast Steel 300LB Forged Trunnion Mounted Ball ValveNegotiableMOQ: 1 Ton
-
Fire Safe to API 607 Anti Blow-out Stem Cast Steel Trunnion Ball ValveNegotiableMOQ: 1 Ton
-
API 6D Class 2500 RTJ Ends Split Body 3 Piece Trunnion Mounted Ball ValveNegotiableMOQ: 1 Ton
-
DIN ASTM JIS Standard Plastic PVC CPVC Worm Gear Operated Type Butterfly ValveNegotiableMOQ: 1 Ton
Female Threaded (NPT, BSPT) Stainless Steel (SUS304) Ball Valve
Features:
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE:6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
Main Parts and Materials
|
1 |
Cap | CF8/CF8M | 7 | Stem | SS316/SS304 |
| 2 | Gasket | PTFE | 8 | Packing | PTFE |
| 3 | Seat | PTFE | 9 | Gland | SS304/SS |
| 4 | Ball | SS316/SS304/SS | 10 | Handle | SS201 |
| 5 | Body | CF8/CF8M | 11 | Spring Washer | SS304/SS |
| 6 | Thrust Washer | PTFE | 12 | Stem Nut | SS304/SS |
