Home > Electrical & Electronics > Integrated Circuit > General-purpose Integrated Circuit > Fudan Microelectronics EEPROM FM25W128-SOB-U-G-Q1
Fudan Microelectronics EEPROM FM25W128-SOB-U-G-Q1
Negotiable
MOQ: 3000 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Fudan Microelectronics
Place of Origin:
China
Model Number:
FM25W128-SOB-U-G-Q1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fudan Microelectronics EEPROM FM25Q128ANegotiableMOQ: 3000 Units -
Fudan Microelectronics EEPROM FM25Q64-SOB-U-GNegotiableMOQ: 3000 Units
-
Shanghai Belling EEPROM BL24C02A/BL24C04A/BL24C08A/BL24C16ANegotiableMOQ: 3000 Units
-
HH Zealcore EEPROM HE24C32B SOP8NegotiableMOQ: 3000 Units
-
Fudan Microelectronics EEPROM FM25S01ANegotiableMOQ: 3000 Units
Brand Name
Fudan Microelectronics
Place of Origin
China
Model Number
FM25W128-SOB-U-G-Q1
Package
8pin SOP
D/C
2024

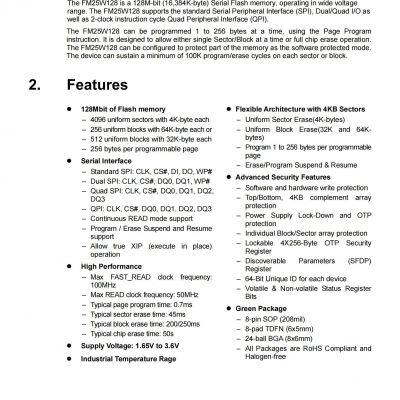

The FM25W128 is a 128M-bit (16,384K-byte) Serial Flash memory, operating in wide voltagerange. The FM25W128 supports the standard Serial Peripheral interface (SPl), DualQuad l0 aswell as 2-clock instruction cycle Quad Peripheral Interface (QPl).
The FM25W128 can be programmed 1 to 256 bytes at a time, using the Page Programinstruction. lt is designed to allow either single Sector/Block at a time or full chip erase operation.The FM25W128 can be confqured to protect part of the memory as the software protected modeThe device can sustain a minimum of 100K program/erase cycles on each sector or block.
