Home > Manufacturing & Processing Machinery > Metallurgy Machinery > YINFENG CNC-86120 6 Axces Cnc Spring Coiling Machine,12MM Compression Spring Machine

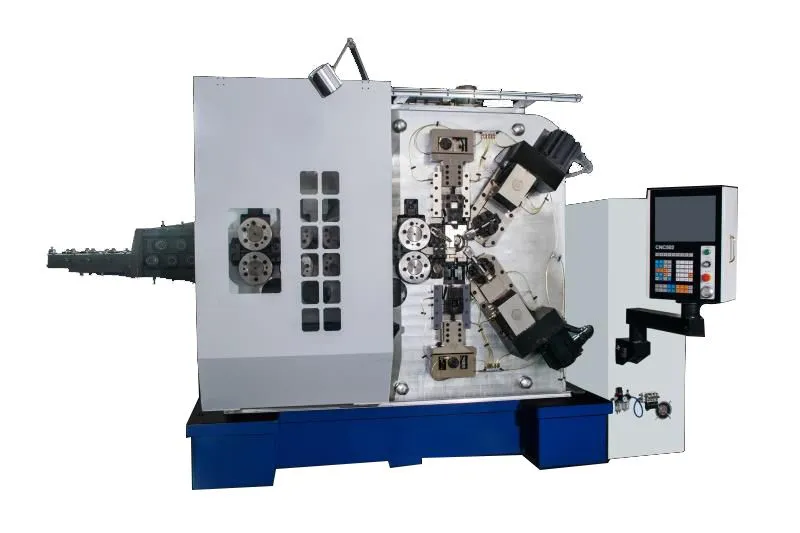

YINFENG CNC-86120 6 Axces Cnc Spring Coiling Machine,12MM Compression Spring Machine
US$ 6500 - 35000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
spring coiling machine
Place of Origin:
China
Model Number:
YF-CNC-86120
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
30 days
Related Products
-
CNC-86160 16mm Cnc Spring Coiling Machine,compression Spring MachineUS$ 6500 - 35000MOQ: 1 Set -
Yinfeng 0.8-10mm Automatic Spring Coil Grinding MachineUS$ 4500MOQ: 1 Set
-
0.2mm Embroidery Zardozi Spring Material Forming Machine, Wedding Dress, Sari Sherwani Stage Costume Coiled Spring Manufacturing Machine.US$ 5500 - 6500MOQ: 1 Set
-
8508 Wire Diameter 0.15- 0.8mm Spring Coiling 5 Axis Coiling Machine, Spring Making MachineUS$ 999 - 6500MOQ: 1 Set
-
YinFeng CNC-8320-8330 Wire Diameter 0.4- 3mm 3 Axis Coiling Spring Making MachineUS$ 999 - 6500MOQ: 1 Set
Brand Name
spring coiling machine
Place of Origin
China
Model Number
YF-CNC-86120
After-sales Service Provided
Engineers available to service machinery overseas
Product Paramenters
| Model | YF-CNC-86100 | YF-CNC-86120 | |
| Diameter of the wire(mm) | Φ3.0-10.0mm | Φ6.0-12.0mm | |
| Number of axes | 6 | 6 | |
| Max. ODofspring(mm) | 140 | 140 | |
| Length of the feeding wire | No limitation | No limitation | |
| Wire feeding speed(m/min) | 150 | 150 | |
| Quantity of the wire feed wheels | 5pairs | 5pairs | |
| Rotation | Left or right | Left or right | |
| Forming Way | Double points | Double points | |
| Servo Motor(kw) | Outside diameter servo power | 5.5kw*2 | 5.5kw*2 |
| Cutter servo power | 7.0kw*2 | 15kw*2 | |
| Pitch axis servo power | 4.5kw | 4.5kw | |
| Wire feeding | 30.0kw | 30.0kw | |
Company Profile：
Zhejiang Yinfeng Automation Technology Equipment Co.，Ltd. is a high-tech enterprise specialized in CNC spring machinery and assorted equipment research and development，design and marketing, has two decades of production history. All our systems and servo motors were introduced mature technology manufacturing and direct use of its related products from Japan and Taiwan. The equipment of the company has high-precision wires feed，molding action stability，novel and pleasant appearance and other features,favored by the majority of customers，the equipment are in the industry forefront for continuous many years.
Our equipment can produce：
Our equipment can produce pressure springs, tension springs, torsion springs, screw sleeves and wire forming products to meet the needs of a variety of industries, including electronics, toys, electrical appliances, sports equipment, automobiles,stationery, instruments, meters, hair accessories, All kinds of high-precision springs required for crafts, etc., can also produce sheet shrapnel and winder of different specifications. In the increasingly competitive market in the future, the company will, as always, adhere to the tenet of' 'Technology first, quality win, service intimacy", “exploitation and innovation, pursuit of excellence" , providing customers in the spring industry with qualified equipment which have stable quality and reasonable price.
We Can OEM Custom According To Your Requirement
To manufacturing and servicing spring machinery meet customer demandfor quality technology, take on spring manufacturing industry partner, we all willcontinue to develop more sophisticated machinery， and to provide moreconvenient and efficient technical advice and perfect after-sales service.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, we have been in this industry for over 20 years.
Q: How long is your delivery time?
A: Generally it is 5-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2005
Overseas Office
Yes
Factory Size
30,000-50,000 square meters
