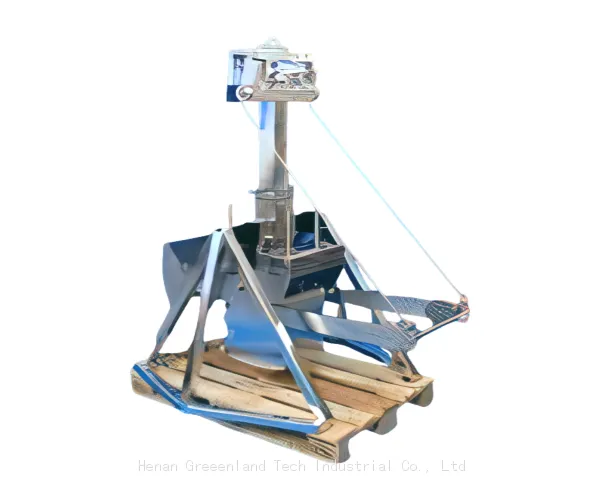

Help CenterBox Corer 600 Cm² Sediment Samplers
Related Products
-
Box Corer 7500 Cm² Sediment SamplersNegotiableMOQ: 1 Unit -
Box Corer 2500 Cm² Sediment SamplersNegotiableMOQ: 1 Unit
-
Ekman Bottom Corer 400 Cm² Sediment SamplersNegotiableMOQ: 1 Unit
-
Ekman Bottom Corer 225cm² Sediment SamplersNegotiableMOQ: 1 Unit
-
Van Veen Grab 2500 Cm²NegotiableMOQ: 1 Unit
Box Corer Application
KC Denmark's box corer's series is a marine geological sampling tool for soft sediment in lakes or oceans. Sediment Samplers is deployed from a research vessel with a deep-sea wire and suitable for any water depth. It is designed for a minimum of disturbance of the sediment surface by bow wave effects which is important for quantitative investigations of the benthos micro- to macrofauna, geochemical processes, sampling of bottom water or sedimentology.
The main racks for 600 cm² and 1000 cm² box corers are identical; the only difference is the size of the corer tube as well as the inner shovel.
Box Corer Lead weights
The bottom sampler weight base is configurable with up to 18 lead weights, each 20 kg (max. 360 kg). Larger capacity on request.
Box Corer Easy handling
When the rack is lifted by a winch the integrated handles allow an easy and swift guidance of the box corer.
Box Corer specification
Description: |
|
Box Corer frame |
50 x 50 x 5 mm square tube, AISI 316 stainless steel. |
Mounting and releaser |
AISI 316 stainless steel. |
Sample tube |
4 mm electro polished AISI 316 stainless steel. |
Shovel and shovel arms |
AISI 316 stainless steel. |
Wires |
AISI 316 stainless steel. |
Wire guidance |
Brass/Polypropylene. |
Weights |
Lead. |
Dimensions: |
|
Frame: |
|
Width & breadth |
110 x 80 cm. |
Height |
110 cm. |
Total height of fully mounted Box Corer |
210 cm. |
Total height of box corer when the sample has been taken |
360 cm. |
Shipping, dimensions and weights |
162 x 92 x 158 cm, gross weight 510 kg. |
Sample tubes (optional) |
|
600 cm2: |
29 x 20,7 cm. |
1000 cm2: |
34,5 x 29 cm. |
Weight: |
|
Total weight of complete Box Corer with 6 weights (600 cm2): |
App. 290 kg. |
Total weight of complete Box Corer with 6 weights (1000 cm2): |
App. 300 kg. |
Weight of each lead weight on weight station: |
20 kg. |
