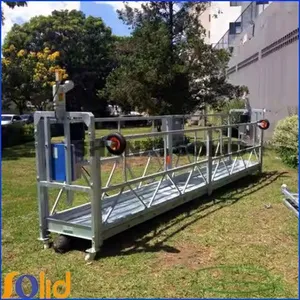

Help CenterLift Equipment ZLP630 Aluminum Suspended Working Platform
Related Products
-
Hot Sale ZLP630 ZLP800 Power Work Platform Suspended Scaffold Work Platform for Building Wall ConstructionNegotiableMOQ: 1 Ton -
ZLP Series Painting Aluminum Alloy Adjustable Suspending Window Cleaning PlatformNegotiableMOQ: 1 Ton
-
Supply Recyclable Non-Fumigation Plastic HDPE Pallets for StorageNegotiableMOQ: 1 Ton
-
Cheap Price High Quality Warehouse Storage Use Heavy Duty PP Plastic PalletNegotiableMOQ: 1 Ton
-
Top Quality Steel Unit Beam for Roof UseNegotiableMOQ: 1 Ton
1. Working Principle:
The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.
2. Usage and Application:
ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer,paint coatings,oil paint,or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations.
Applying this product can release scaffold free, reduce the costruction cost (cost 28% of tranditional scaffolding)and the efficiency will be greatly increased. Mean while, this products are with simple and flexible operation, easy transfer, convenient and practical, safe and relible.
Detail parameter for Liput Regular Suspended Platform
| Name | Technical Parameter | ||
| Model | ZLP800 | ZLP630 | |
| Rated load | 800kg | 630kg | |
| Lifting speed | 8-10m/min | 8-10m/min | |
|
Platform Dimension L*W*H(MM) Spray plastics corrosion-resistant |
7500*720*1300 | 6000*720*1300 | |
| Lifting height | 100m | 100m | |
| Cable | 100m | 100m | |
| Steel rope(specially-made) | 9.1mm | 8.3mm | |
| Hoist | Power | 1.8KW*2 | 1.5KW*2 |
| Voltage | 380V/50HZ | 380V/50HZ | |
| Safety lock | Permission force of impact | 30KN | 30KN |
| Locking Cable Angle | 3°~8° | 3°~8° | |
|
Suspension mechanism Galvanized |
Front beam overhang | 1.3~1.5m | 1.3~1.5m |
| Support adjustable height | 1.44~2.14m |
1.44~2.14m | |
| counterweight | 1000KG | 1000KG | |
| 20'ft container | 10 sets | 10 sets | |
