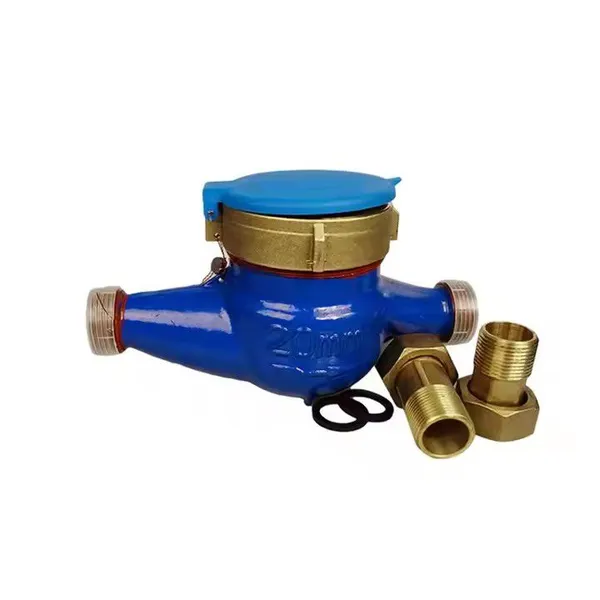

DN15 Brass Wireless Remote Reading Multi Jet Liquid Sealed Type R160 Water Meter
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Factory Size:
1,000-3,000 square meters
Total Employees:
11 - 50 People
Product Certifications:
ISO9001, ISO9000, ISO10441
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
15mm 20mm Multi Jet Water Flow Meter China Mechanical Water MeterNegotiableMOQ: 1 Ton -
LXSG-15-50mm Portable Residential Iron Horizontal Cold Water MeterNegotiableMOQ: 1 Ton
-
High Quality DN15 Brass Multi Jet Dry Type Vane Wheel Cold Water Meter ManufacturerNegotiableMOQ: 1 Ton
-
2" Inch DN50 Multi Jet Vane Wheel Type Flanges Connection Water MeterNegotiableMOQ: 1 Ton
-
20mm 32mm 50mm Vane Wheel Multi-Jet Dry Dial Magnetic Type Cold (Hot) Water MeterNegotiableMOQ: 1 Ton
Multi jet, Dry-dial
Material body: Brass.
Sizes: DN15 to 20mm, (½" - 3/4"), Available for cold water (30°C), hot water(90°C)
Accuracy: ISO 4064 Class B Standard
Universal use. Easy for interchange & maintenance
MAIN TECHNICAL DATA
|
Meter size Dia DN (mm) |
Class |
qs Overload Flow |
qs Nominal Flow |
qs Transitional Flow |
Qmin Min Flow |
Min Reading Lectura |
Max Reading Lectura |
| m3/h | 1/h | m3 | |||||
| 15 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
| B | 120 | 30 | |||||
| 20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
| B | 200 | 50 | |||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
|
Meter size Dia DN (mm) |
Length | Width | Height |
Connecting Thread D |
Weight Kg |
| mm | |||||
| 15 | 165 | 99 | 104 | G 3/4B | 1.4 |
| 20 | 190 | 99 | 106 | G 1B | 1.7 |
WORKING CONDITION
Water temperature:≤40ºC for cold water meter
Water temperature:≤90ºC for hot water meter
Working pressure:≤1.6Mpa
