Ultrasonic Metal Welding Machine-power Battery-JHN2020

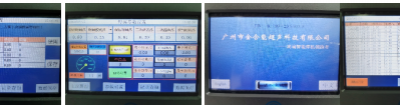

Smart digital display：

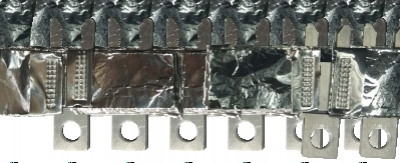

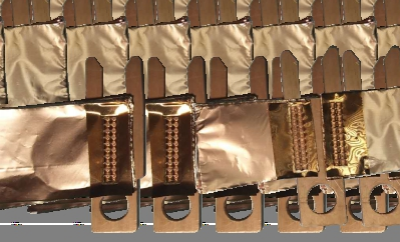

Multi-layer welding of power battery (power soft pack, power aluminum shell) High-end intelligent type, various PACK welding,

It can achieve one-time welding of large areas.0.2-0.3 aluminum to 0.2-0.3 copper nickel plated welding.

System power-on self-test          Automatic frequency tracking system;       Automatic tracking of frequency during work

Adjustable vibration pair, power compensation        Energy, time, multiple welding modes     50 kinds of welding parameters can be set

Welding abnormality alarm, real-time monitoring of welding effect

When an exception occurs, the window prompts the abnormal location.

Technical specifications：

Model number：JHN2020        frequency：20K      power：2000W        dimension：580x460x180mm         Process range：Welding within 20 layers

Model number：JHN2030        frequency：20K      power：3000W        dimension：580x460x180mm         Process range：Welding within 30 layers

Model number：JHN2042        frequency：20K      power：4200W        dimension：580x460x180mm         Process range：Welding within 40 layers

Model number：JHN2056        frequency：20K      power：5600W        dimension：580x460x180mm         Process range：Welding within 50 layers

Model number：JHN2080        frequency：20K      power：8000W        dimension：580x460x180mm         Process range：Welding within 80 layers

According to customer samples customized to meet the requirements of the fully automated non-standard equipment
