12 Strand White UHMWPE Mooring Rope for Tugboats Ropes LDMAX-12

12 Strand White UHMWPE Mooring Rope for Tugboats Ropes LDMAX-12 thumbnail-1
12 Strand White UHMWPE Mooring Rope for Tugboats Ropes LDMAX-12 thumbnail-2
12 Strand White UHMWPE Mooring Rope for Tugboats Ropes LDMAX-12 thumbnail-3
12 Strand White UHMWPE Mooring Rope for Tugboats Ropes LDMAX-12 thumbnail-4
12 Strand White UHMWPE Mooring Rope for Tugboats Ropes LDMAX-12 thumbnail-5
12 Strand White UHMWPE Mooring Rope for Tugboats Ropes LDMAX-12 photo-1
12 Strand White UHMWPE Mooring Rope for Tugboats Ropes LDMAX-12 photo-2
12 Strand White UHMWPE Mooring Rope for Tugboats Ropes LDMAX-12 photo-3
12 Strand White UHMWPE Mooring Rope for Tugboats Ropes LDMAX-12 photo-4
12 Strand White UHMWPE Mooring Rope for Tugboats Ropes LDMAX-12 photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1983
Factory Size:
30,000-50,000 square meters
Contact Supplier Request Quote Chat Now
Yangzhou Lida Rope Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Company Profile:

    Lida Rope technology Co., Ltd. was founded in 1983, the production base is located in Baoying County, Yangzhou City, Jiangsu Province. It is a professional chemical fibre rope manufacturing enterprise which integrates research and development, production, sales and international trade as one of the national high-tech enterprises.We can provide international recognized products thanks to our efforts to introduce advanced technology and equipment and upgrade production process over the past 40 years since our inception.

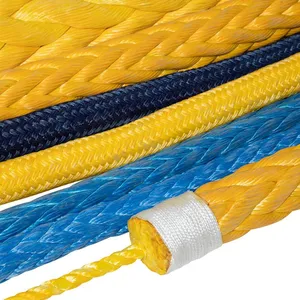

   We provide a wide variety of marine ropes, including UHMWPE ropes, polyamide ropes, polyester ropes, polypropylene ropes, Mixed ropes and winch rope etc. They range from 2mm to 140mm in diameter, and are available with 3-strand, 6-strand, 8-strand, 12-strand, double braid.


HMPE ropes are produced with ultra high molecular weight polyethylene (UHMWPE) fiber and advanced technology.

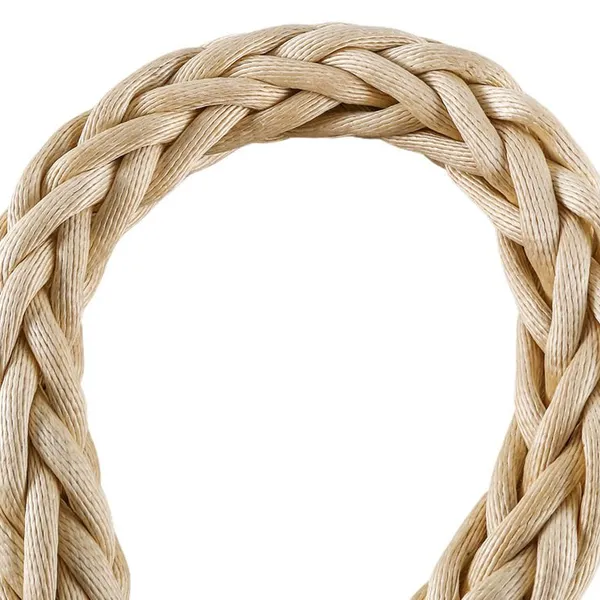

LDMAX-12 is a high-performance 12-strand single braid of ultra high molecular weight polyethylene (UHMWPE) yarns with special coating , being the strongest fiber in its class, and is stronger than the same sized wire rope—but it’s so light, it floats. Made with UHMWPE fiber,LDMAX® is coated, which enhances the fiber’s already high abrasion and cut resistant characteristics.Each strand of rope is covered with UHMWPE yarns to maximize its ultimate strength and improve abrasion performance, ensuring unparalleled durability and performance in even themost demanding applications.


Features:

  • Materiat: UHMWPE yarns with special coating

  • The strongest fiber rope in the world

  • Equivalent MBL,the weight is 14% of the wire rope

  • Specific gravity:0.97

  • Elongation: 4% at break

  • Melting point: 150℃

  • Good resistance to UV and chemicals

  • Superior abrasion resistance

  • No diferencein tensile strength when wet or dry

  • Workable below -20℃


Applications:

Mooring line/Super sized commercial vessel/Tug&Towing line/Wire Rope Replacement


Specification:

Size Lineardensity Weight Breaking Strength
BS(YarnsT/S-42g/) BS(YarnsT/S-33g/d)
Cir (inch) Dia(mm) ktex 220m(kg) ton KN ton KN
1/2 4 10 2.2 1.84 18.00 1.33 13
3/4 6 23 5.2 3.88 38.00 3.27 32
1 8 39 8.9 5.72 56.00 4.60 45
1-1/4 10 61 14.0 9.10 89.00 7.35 72
1-1/2 12 87 20.0 15.10 148.00 10.20 100
1-3/4 14 117 26.0 18.60 182.00 15.30 150
2 16 151 34.0 24.50 240.00 19.30 189
2-1/4 18 190 43.0 29.00 284.00 23.40 229
2-1/2 20 232 53.0 34.00 334.00 28.00 273
2-3/4 22 281 64.0 41.00 401.00 33.00 322
3 24 331 75.0 48.00 473.00 38.00 371
3-1/2 28 445 100 76.20 748.00 52.20 562
3-3/4 30 506 115 83.70 822.00 60.50 598
4 32 575 130 91.20 895.00 68.50 671
4-1/2 36 720 162 107.30 1052.00 80.40 789
5 40 868 200 131.00 1285.00 98.20 964
5-1/2 44 955 215 157.00 1540.00 118.00 1158
6 48 1137 260 185.00 1815.00 139.00 1364
7 56 1547 350 246.00 2408.00 184.00 1805
7-1/2 60 1784 400 265.00 2599.00 199.00 1952
8 64 2021 460 296.00 2903.00 222.00 2178
9 72 2598 590 365.00 3580.00 274.00 2688
10 80 3195 720 444.00 4355.00 333.00 3266
11 88 4170 940 519.00 5090.00 390.00 3825
12 96 4970 1120 606.00 5943.00 455.00 4463
13 104 5816 1310 695.00 6810.00 520.00 5096
14 112 6745 1520 783.00 7673.00 592.00 5800
15 120 7743 1750 924.00 9060.00 687.00 6730
16 128 8810 2000 1018.00 9980.00 779.00 7635
17 136 9945 2240 1122.00 11000.00 886.00 8682
18 144 11150 2520 1296.00 12700.00 1025.00 10045
±5% tolerance according to ISO2307


Our Advantages

Our company passed the ISO9001 quality system certification.We are authorized by many kinds of classification society as follows:

1.China Classification Society(CCS)

2.Det Norske Veritas(DNV)

3.Bureau Veritas (BV)

4.Lloyd's Register of Shipping( LR)

5.German LIoyd's register of shipping(GL)

6.American Bureau Veritas( ABS )



  "pursuing first-class quality,building centennial brand"



  We sincerely provide a full range of high quality services for all customers !



FAQ

Q1:What's the terms of Payments ?

A1:T/T 30% as deposit ,and 70% before delivery .


Q2:What's the  terms of delivery ?

A2:FOB,CFR,CIF


Q3:How about the delivery time ?

A3:Generally ,it will take 7 to 30 days after  receiving the deposit .The specific delivery time depends on the items  and quantity of the rope .
