Product Details

Place of Origin

China

Product Description

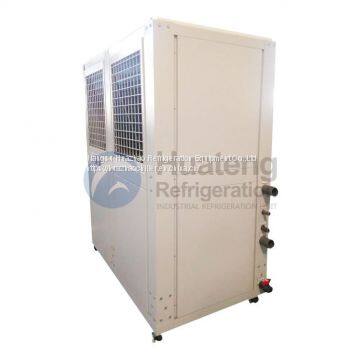

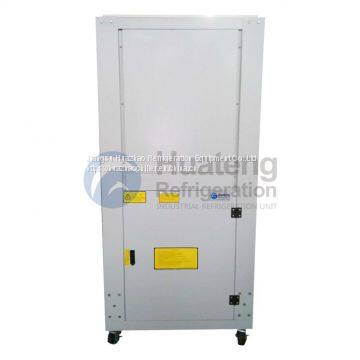

Air Cooled Scroll Chiller

Description:

The series modular air cooled scroll type chiller cooling capacity from 7KW to 120KW. This series units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. The user just need simply connect the pipeline of the water system and the required power supply,then can put into operation.

This series of chillers is widely used: it can provide process chilled water for industrial and mining enterprises such as textile, chemical and petroleum. The manufacturing technology of this product is mature and stable and reliable.

Features of chiller:

1. Employing original SCROLL compressor, compressor may according loading auto-adjust, add level sensor for prevent compressor low-loading to luck-oil, extent use life

2. Employing all-new imported high class component

3. Employing two sets of compressor which can be used jointly or independent

4. Switch control, easy operation and maintenance

5. The weld of brass pipe is non-oxidization

6. Condenser and Evaporator both to conform GB150, GB151, TB/T4750-2003, operation safe

Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective

Air cooled industrial chiller (R22)
Model		HTB-7F	HTB-14F	HTB-21F	HTB-28F	HTB-32F	HTB-40F	HTB-41F	HTB-56F	HTB-84F	HTB-112F
Cooling Capacity	KW	7.2	13.5	20.7	28	31.5	40	41.4	56	84	112
	Kcal/Hr	6192	11610	17802	24080	27090	34400	35604	48160	72240	96320
	RT	2.05	3.84	5.89	7.96	8.96	11.37	11.77	15.92	23.88	31.85
Power	50HZ	3P-380V-50HZ
Comprosser	Mode	Full closed high efficiency flexible scroll compressor
	Input power(KW)	2.4	4.2	6.1	8.1	9.2	12.4	12.2	16.2	24.3	32.4
	Rated load current(A)	4.4	9	11.6	14.6	16.2	23.9	23.2	29.2	43.8	58.4
Wiring specification		4	4	6	6	6	10	10	16	25	35
Add unloading way		0,100%						0,50%,100%		0,33%,66%, 100%	0,25%,50%, 75%,100%
Condensor	Cooling fan(KW)	0.2	0.18×2	0.24×2	0.3×2	0.6×2	0.6×2	0.78×2	0.78×2	0.78×3	0.85×3
Condensor	Structure form	Efficient internal thread copper pipe hydrophilic aluminium fin+Auxiliary water spray falling film technology
Evaporater	Freeze water temp（℃）	Inlet temp 12℃/outlet temp 7℃
	Freeze water flow（m³/h)	1.24	2.32	3.56	4.82	5.42	6.88	7.12	9.63	14.45	19.26
	Waterpipe diameter(DN)	32	32	40	40	40	40	40	50	65	80
Safeguard		Overload protection,overpressure,inverse phase,open phase protection,exhaust temperature protection,abnormal refrigerant protection,water pump chain protection, etc.
Size	L(mm)	960	1200	1250	1400	1400	1700	1700	1700	2600	2800
	W(mm)	700	650	900	900	900	1000	1000	1000	1100	1200
	H(mm)	1120	1250	1720	1750	1750	1900	1900	1920	1950	1980
Units Weight	Kg	190	220	280	300	320	350	420	540	610	690

Note:

1、Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。

2、Above is my company's industrial water-cooled water chiller parameters, evaporator is shell and tube type, if there is a demand for the built-in bank、non-standard products of water pump, can be designed and manufactured according to the concrete situation.

3、In order to ensure technology constantly updated, the above parameters are subject to change without prior notice

4、The specific parameters for non-standard products, welcome consulting our technical department.
