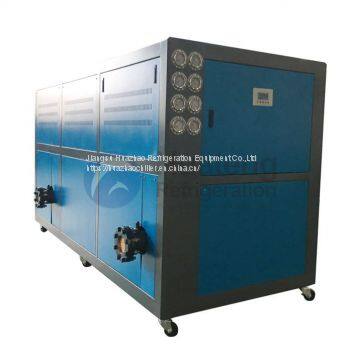

Oem Water Cooled Scroll Chiller,Custom Aluminum Industry Water Cooled Chiller
Description:
The series water cooled scroll type chiller cooling capacity from 9KW to 120KW. This series units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. It is automatically adjusted according to load changes and is more energy efficient.
Features of chiller:
1. Energy with high efficient
2. Operation noise and vibration is low
3. No friction loss
4. Low starting current
5. High system sustainability
6. Environmental protection
Safety system:
1 Compressor reverse protective
2 Freeze protector protective
3 Refrigerant safety valve
4 Buzzer
5 High-pressure gauge and Low-pressure gauge
6 Power phase failure protector
7 Coil over-heat protector
8 Temperature auto-switch
9 Refrigerant shortage protective
Water cooled scroll type chiller(R-134a) | ||||||||||
Model |
HTB-M10S |
HTB-M15S |
HTB-M20S |
HTB-M23S |
HTB-M30S |
HTB-M30S |
HTB-M41S |
HTB-M61S |
HTB-M82S |
|
Cooling |
KW |
9.5 |
15.1 |
20.4 |
23.2 |
29.8 |
30.2 |
40.8 |
61.2 |
81.6 |
Kcal/Hr |
8170 |
12986 |
17544 |
19952 |
25628 |
25972 |
35088 |
52632 |
70176 |
|
RT |
2.7 |
4.29 |
5.8 |
6.6 |
8.47 |
8.59 |
11.6 |
17.4 |
23.2 |
|
Power |
50HZ |
3P-380V-50HZ |
||||||||
Comprosser |
Mode |
Full closed high efficiency flexible scroll compressor |
||||||||
Input power(KW) |
2.19 |
3.49 |
4.55 |
5 |
6.8 |
6.98 |
9.18 |
13.65 |
18.2 |
|
Rated load current(A) |
5.4 |
9.25 |
11.2 |
10.8 |
16.7 |
18.5 |
22.4 |
33.6 |
44.8 |
|
Wiring specification |
4 |
6 |
6 |
6 |
10 |
10 |
25 |
25 |
25 |
|
Add unloading way |
0,100% |
0,50%,100% |
0,33%,66%, |
0,25%,50%, |
||||||
Condensor |
Cooling water temp（℃） |
Inlet temp 30℃/outlet temp 35℃ |
||||||||
Cooling water flow(m³/h) |
2.04 |
3.25 |
4.39 |
4.99 |
6.41 |
6.49 |
8.77 |
13.16 |
17.54 |
|
Waterpipe diameter(DN) |
32 |
32 |
40 |
40 |
40 |
40 |
50 |
50 |
65 |
|
Evaporater |
Freeze water temp（℃） |
Inlet temp 12℃/outlet temp 7℃ |
||||||||
Freeze water flow（m³/h) |
1.63 |
2.6 |
3.51 |
3.99 |
5.13 |
5.19 |
7.02 |
10.53 |
14.04 |
|
Waterpipe diameter(DN) |
32 |
32 |
32 |
32 |
40 |
40 |
40 |
50 |
65 |
|
Safeguard |
Water pump protection chain, electric leakage protection, overload protection, overpressure, the power reverse phase, open phase protection, abnormal refrigerant protection, exhaust temperature protection, Lack of water protection, etc. |
|||||||||
Size |
L(mm) |
1210 |
1250 |
1250 |
1400 |
1400 |
1500 |
1640 |
1900 |
2500 |
W(mm) |
650 |
700 |
700 |
700 |
700 |
700 |
700 |
850 |
800 |
|
H(mm) |
1080 |
1100 |
1100 |
1100 |
1100 |
1100 |
1100 |
1250 |
1250 |
|
Units Weight |
Kg |
240 |
300 |
320 |
340 |
370 |
440 |
560 |
630 |
720 |
Note:
1、Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。
2、Above is my company's industrial water-cooled water chiller parameters, evaporator is shell and tube type, if there is a demand for the built-in bank、non-standard products of water pump, can be designed and manufactured according to the concrete situation.
3、In order to ensure technology constantly updated, the above parameters are subject to change without prior notice
4、The specific parameters for non-standard products, welcome consulting our technical department.
Our company various industrial chiller with competitive price include: water chiller machine for supermarket; Semi closed Screw Type Chiller; 100 ton Refrigerant Air cooled Heat Pump Unit; school Scroll Type Pump Water Heater; -30 degree low temperature water chiller for agriculture.
More Product Please View Hifactory.
