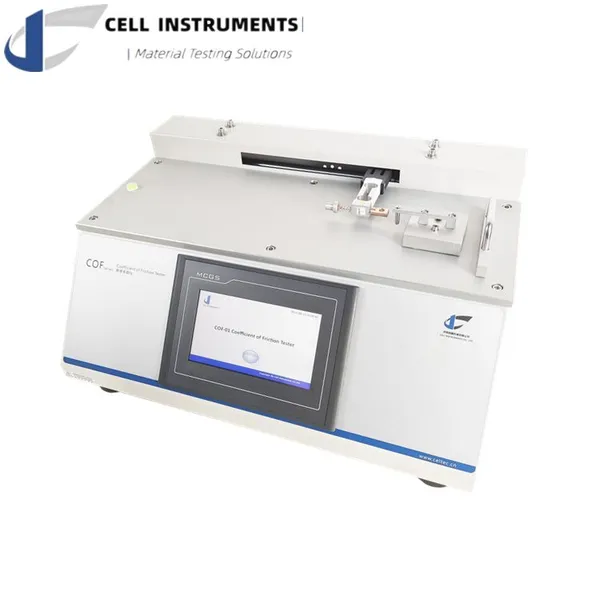

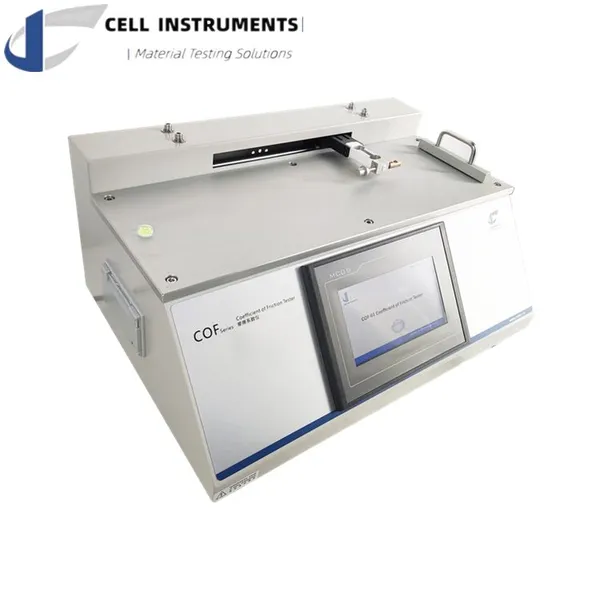

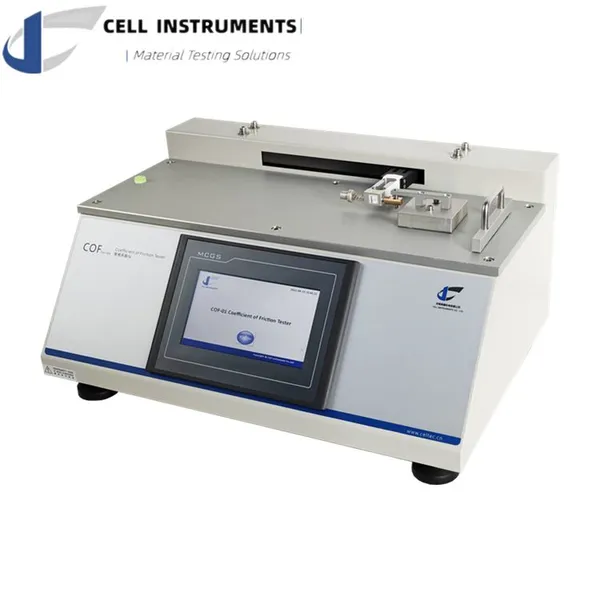

FPT-01 Friction and Peel Tester
The FPT-01 Friction and Peel Tester is a versatile and multifunctional device designed for various applications:
Measurement of Coefficient of Friction: It accurately measures both static and kinetic coefficients of friction for a wide range of materials, including plastic films, sheets, rubber, paper, paperboard, PP woven bags, fabrics, composites, and more. This capability is valuable for understanding how materials interact with each other and with various surfaces.
Delicate Peeling Force Test: The tester can perform delicate peeling force tests on materials such as release paper, adhesive tape, medical adhesives, composite films, and protective films. This feature is essential for assessing the ease of separation between different layers of materials, ensuring product quality and performance.
The FPT-01 Friction and Peel Tester is a versatile instrument that serves as a valuable tool for quality control, product development, and research in industries dealing with a wide range of materials, from packaging to medical applications.
System Description
FPT-01 Friction and peel tester has a fixed loadcell position, with a protection cover. A movable plane is installed firmly to ball lead screw. The sled is to put on sample sticking to the plane, which is then connected to loadcell, with a filament.
When performing peeling test, as the force is small, the right sample clamp is stuck to plane, using double side type. Then a separation action is performed to peel the sample and force is recorded during the process.
Technical Features
FPT-01 Friction and peel tester is a PLC-controlled unit with industrial-grade stability and operates through an intuitive HMI touch screen interface. The precision ball lead screw mechanism ensures consistent speed and displacement control.
The system offers two distinct testing methods: one for measuring the coefficient of friction (COF) and another for assessing peeling forces. In COF tests, precise free speed settings are available, while peeling tests consider parameters that influence peeling results, such as initial and tail portions.
Other features
1. Real-time data analysis and display, including results and graphical curves.
2. Compliance with various test standards.
3. Integration of a dot matrix micro printer.
4. Inclusion of an advanced peeling program. 5. Optional RS232 and software.
Major Standards
ISO 8295, ASTM D1894, TAPPI T816, ISO 8510-2, ASTM D4917, ASTM D3330, TAPPI T549
Main Parameters
Force Range 5N, 10N, or 30N (or others)
Accuracy 0.5 F.S.
Sled 200±1g (or as required)
Stroke 500mm
Test Speed 1~500mm/min
Power 110~220V 50/60Hz
