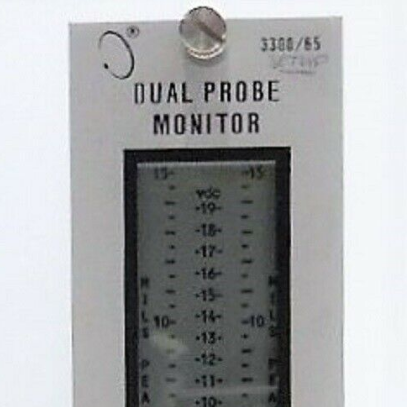

Bently Nevada 3300/65-03-01-00-00-01-00 Dual Probe Monitor

Description

The 3300/65 Dual Probe Monitor combines the shaft relative displacement signal of a Bently Nevada proximity transducer and casing vibration from a velocity transducer, both of which are installed in the same axis on the machine, into one measurement of shaft absolute vibration. Dual Probe Monitors are designed for machines with fluid film bearings, such as large steam and gas turbines, where a significant amount of shaft vibration is transmitted to the case. If you are uncertain as to whether your machine transmits significant vibration to the casing, we can provide engineering services to determine the characteristics of your machine and recommend an appropriate monitoring system. Four distinct measurements are provided by the Dual Probe Monitor: • Shaft relative vibration - A proximity probe measurement of shaft vibration relative to the bearing housing. • Bearing housing vibration - A seismic measurement of the bearing housing vibration relative to free space. • Shaft absolute vibration - A vector summation of shaft relative vibration and bearing housing vibration. • Shaft average radial position relative to the bearing clearance - A proximity probe dc gap measurement.

Dual Probe Monitor

3300/65-AXX-BXX-CXX-DXX-EXX-FXX

A: Full-scale Range Option 0 1 0 to 5 mils 0 2 0 to 10 mils 0 3 0 to 15 mils 0 4 0 to 20 mils 1 1 0 to 150 µm 1 2 0 to 250 µm 1 3 0 to 400 µm 1 4 0 to 500 µm

B: Relative Transducer Input Option 0 1 3300 or 7200 Proximitor® 0 2 7200 11 mm (not XL) Proximitor 0 3 7200 14 mm or 3300 HTPS Proximitor

C: Agency Approval Option

0 0 Not required 0 1 CSA/NRTL/C Note: CSA/NRTL/C option is only available with relays when the monitor is ordered in a system.

D: Intrinsic Safety Barrier Option 0 0 None 0 1 External with Velocity Seismoprobe 0 3 External with Velomitor Note: External Safety Barriers must be ordered separately.

E: Seismic Transducer/Alarm Relay Option 0 0 Seismoprobe, no relay 0 1 Seismoprobe, Epoxy-sealed 0 2 Seismoprobe, Hermeticallysealed 0 3 Seismoprobe, Quad Relay (Epoxy-sealed only) 0 4 Velomitor, no relay 0 5 Velomitor, Epoxy-sealed relay 0 6 Velomitor, Hermetically-sealed relay 0 7 Velomitor, Epoxy-sealed Quad relay 0 8 Spare Monitor – No SIM/SIRM

F: Trip Multiply Option 0 0 None 0 1 2X 0 2 3X

Our products are all original with one year warranty, welcome to inquiry!
