BLIIOT Smart Manufacturing Profinet I/O Modules BL201 for S7-200SMART PLC

BLIIOT Smart Manufacturing Profinet I/O Modules BL201 for S7-200SMART PLC thumbnail-1
BLIIOT Smart Manufacturing Profinet I/O Modules BL201 for S7-200SMART PLC thumbnail-2
BLIIOT Smart Manufacturing Profinet I/O Modules BL201 for S7-200SMART PLC thumbnail-3
BLIIOT Smart Manufacturing Profinet I/O Modules BL201 for S7-200SMART PLC thumbnail-4
BLIIOT Smart Manufacturing Profinet I/O Modules BL201 for S7-200SMART PLC thumbnail-5
BLIIOT Smart Manufacturing Profinet I/O Modules BL201 for S7-200SMART PLC photo-1
BLIIOT Smart Manufacturing Profinet I/O Modules BL201 for S7-200SMART PLC photo-2
BLIIOT Smart Manufacturing Profinet I/O Modules BL201 for S7-200SMART PLC photo-3
BLIIOT Smart Manufacturing Profinet I/O Modules BL201 for S7-200SMART PLC photo-4
BLIIOT Smart Manufacturing Profinet I/O Modules BL201 for S7-200SMART PLC photo-5
US$ 95 - 138 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
BL201
Contact Supplier Request Quote Chat Now
Shenzhen Beilai Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number BL201

Product Description

The BL201 coupler is a data acquisition and control system based on a powerful 32-bit microprocessor design with a Linux operating system.

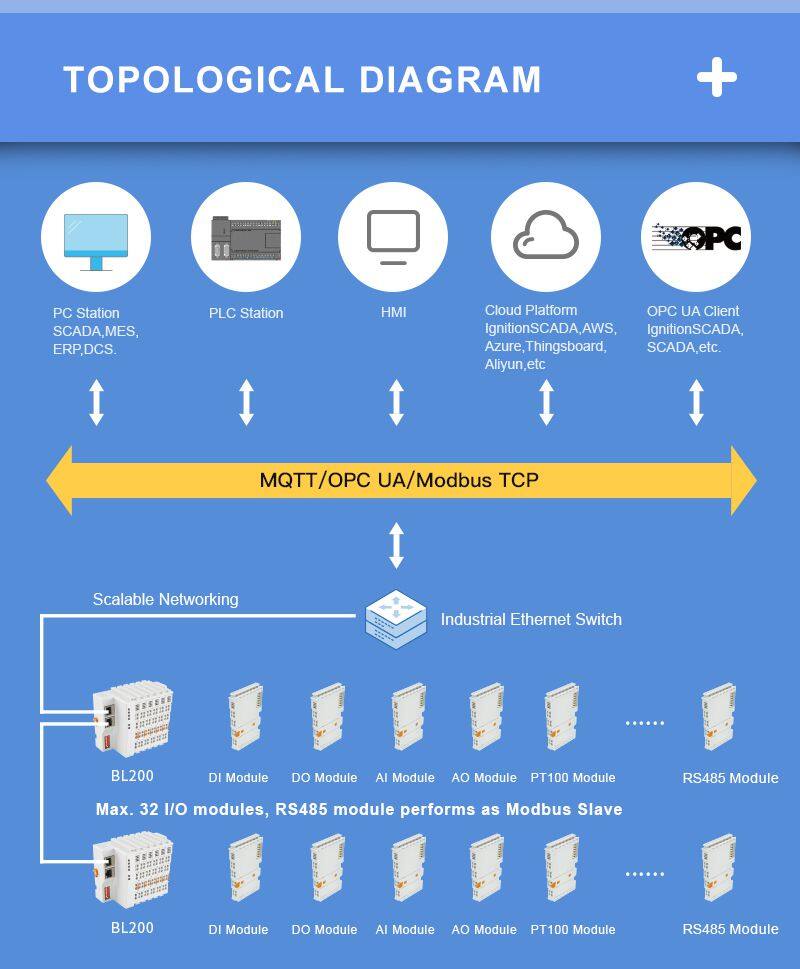

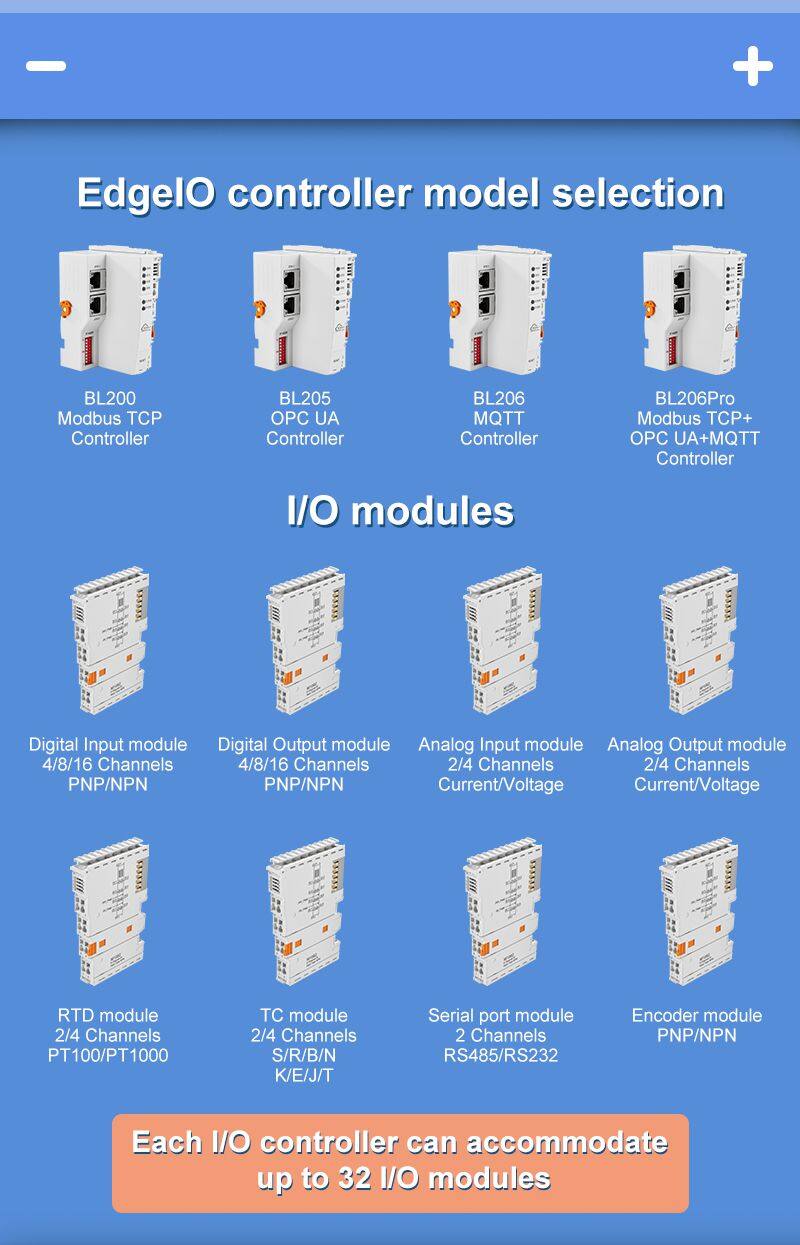

The BL201 distributed I/O system consists of 3 parts: Coupler, I/O modules and terminal modules.

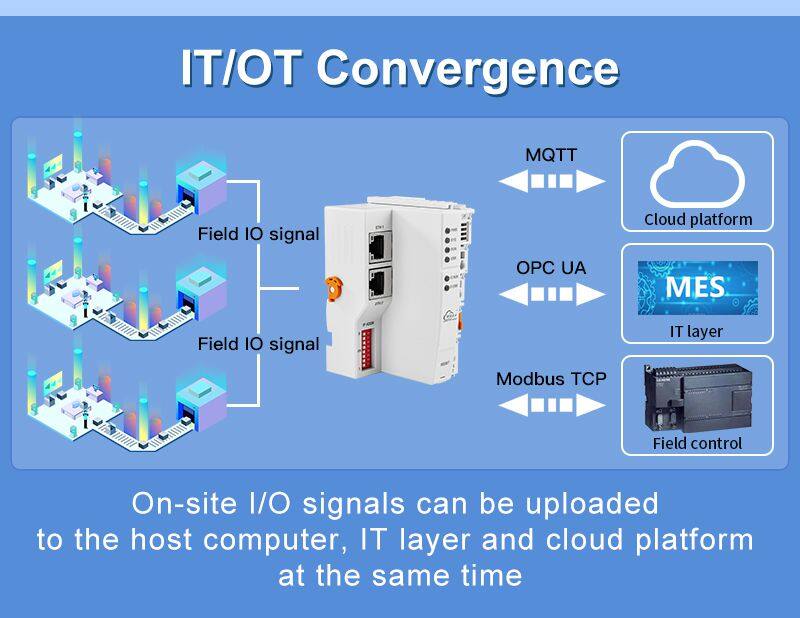

The communication between the node and the field devices (eg PLC) takes place via the Ethernet interface of the fieldbus coupler, and the communication between the fieldbus coupler and the I/O modules takes place via the local bus. The two Ethernet interfaces are internally integrated with a switch function, which can establish a linear topology without the need for additional switches or hubs.

The system needs to use the power module to provide 24VDC system voltage and 24VDC field voltage. Since two independent power supplies are used, the field voltage input interface and system voltage input interface of BL200 series couplers are electrically isolated from each other.

When assembling fieldbus node modules, each I/O module can be arranged in any combination, and it is not required to be grouped by module type.
A terminal module must be plugged into the end of a fieldbus node to ensure correctdata transmission.

Detailed Photos


Certifications
EMC EN 55022: 2006/A1: 2007 (CE &RE) Class B
IEC 61000-4-2 (ESD) Level 4
IEC 61000-4-3 (RS) Level 4
IEC 61000-4-4 (EFT) Level 4
IEC 61000-4-5 (Surge)Level 3
IEC 61000-4-6 (CS)Level 4
IEC 61000-4-8 (M/S) Level 4
Product Parameters
Name Parameter Description
System power Input voltage(system) 24 VDC
Input current(system) MAX 500 mA@24VDC
Power Efficiency 84%
Internal bus voltage 5VDC
Coupler current consumption MAX 300mA@5VDC
I/O current consumption MAX 1700mA@5VDC
Isolation protection 500 V system/supply
Field power Input voltage (field) 24 VDC
Current carrying capacity (power jumper contacts)  MAX 10 ADC
Ethernet Number 2 X RJ45
Transmission medium Twisted Pair STP 100 Ω Cat 5
MAX cable length 100m
Baud rate 10/100 Mbit/s
Isolation protection ESD contact: 8KV, Surge: 4KV(10/1000us)
System Operating system Linux
CPU 300MHz
RAM 64MB
Flash 128MB
I/O Modules MAX 32
Protocol Profinet
Process data area Input up to 1440 bytes, output up to 1440 bytes
RT Support, minimum cycle 1ms
Connection Method CAGE CLAMP
Wire diameter 0.08 mm² ⋯ 2.5 mm², AWG 28 ⋯ 14
Strip length 8 mm ⋯ 9 mm / 0.33 in
Environment Working temperature 0 ⋯ 55 °C
Storage temperature -40 ⋯ 70 °C
Relative humidity 5 ⋯ 95% no condensation
Working altitude 0 ⋯ 2000 m
Protection type IP20
Dimension Width 48mm
Length 100mm
Height 69mm
Material Color Light gray
Housing material Polycarbonate, Nylon 6.6
Fire load 1.239 MJ
Weight 180g
Installation Method DIN-35 rail
Certificates EMC EN 55022: 2006/A1: 2007 (CE &RE) Class B
Company Profile

Founded in 2005, Beilai Technology is an innovative manufacturer dedicated to the development and manufacturing of loT devices. Beilai is the pinyin of barium-rhenium in Mandarin. Barium is a lively element, and rhenium is the last element discovered by human beings.
The meaning of barium-rhenium is to be brave in innovation and explore the most cutting-edge technology.
Beilai offer partners with a wide range of hardware including Industrial Ethernet I/O Module, Distributed I/O System, Remote I/O Module, Industrial IoT Gateway, Cellular IoT M2M RTU, Embedded ARM Computer, Industrial 4G Edge Router, X86 Embedded Industrial Computer, Remote Battery Measurement System, Cellular SMS Controller, Network Fault Monitoring Alarm, Cellular Gate Opener, OEM and ODM services.

Product Tags: S7-1500 PLC , Remote Control , Profinet , I/O Controller , S7-300 PLC , S7-400 PLC , Distributed IO Module , I/O System , Modular I/O System
