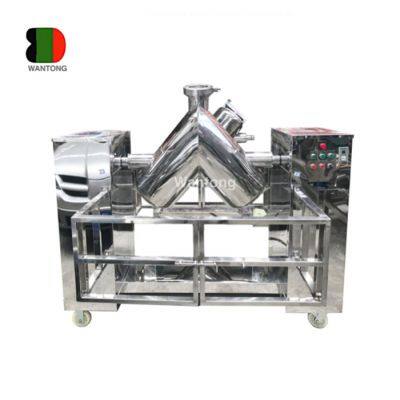

V chemical food powder cone mixer mixing equipment machine
The V-mixer machine is a type of mixing machine that achieves homogeneous mixing of materials through the movement of the mixing vessel. The movement takes place clearly in the two arms of the cylinder, which are inclined at an angle of 70° to 90°, forming a "V" shaped design. The shape is particularly good at enhancing the mixing of the product. During the tumbling process, the product in the cylindrical arms is always splitting and regrouping. The rotation separates the batches and thus moves them into two separate wings. We offer V mixers, double cone mixer and triple cone mixers, etc.
V Mixing Machine Main Uses
This machine is applicable to mix dry powder and granule material for the pharmacy and other relative industries.
Food processing: premixes, grains, coffee blends, dairy powders, vitamin supplements, soups, spices ......
Pharmaceuticals: pre-mixing for granulation
Plastics: mixing of masterbatches, granules
Chemicals: Metal powder blends, minerals
Construction: Steel premixes
V Shaped Mixer Characteristics
This machine is easy to operate and it mixes evenly with the vacuum charging equipment. It can also be equipped with compulsive blending setup. It can mix fine powder and more than two forms of powders including the materials that contain water. It can get the good result of mixing little quantity materials and additive (meaning that little admixture additives). Adopted unbalance canister body, it features the excellent mixing result. It is convenient to discharging the products using the butterfly valve. It is easy to install, discharge and clean. The machine is made of the stainless steel, so the inside is glabrous. It has no dead angle and accords with GMP. It can easily achieve high precision mixing in short cycles and is easy to clean, easy to maintain and repair, and rarely subject to external contamination.
Main Features
1.this V mixer machine is made up of stainless steel 304(we also can do as consumer requirement)
2.this mixer has a total volume 0.18 m^3 empty
3.this mixing machine is meeting ISO 9001 and CE and GSG certificate
4.this mixer machine is suitable for mix powder, granule
5.this mixer can add the stir bar inside mix tank, it also can add the spray system to spray liquid (if consumer need. inform us in advance)
6.this mixer can make into vacuum condition (if consumer need, inform us in advance)
7.this V mixer can add the frequency changer (adjust the rotation speed), if consumer need, inform us in advance
8.voltage: 220v or 380v or as consumer requirement
Technical Parameters
Type |
V-200 |
V-300 |
V-500 |
V-1000 |
V-2000 |
V-3000 |
V-4000 |
Barrel Volume(m3) |
0.2 |
0.3 |
0.5 |
1.0 |
2.0 |
3 |
4 |
Capacity(kg/batch) |
40 |
60 |
100 |
200 |
400 |
600 |
800 |
Mixing time(min) |
3-8 |
6-10 |
|||||
Blending speed(r/min) |
12 |
12 |
12 |
10 |
10 |
8 |
8 |
Power（KW） |
1.1 |
1.1 |
2.2 |
4 |
7.5 |
11 |
15 |
Overall Size（L*W*H）(mm) |
2000*400*1600 |
2050*710*1700 |
2370*1000*1850 |
2900*1350*2450 |
3340*1650*2980 |
4690*2200*4000 |
4950*2200*4230 |
Weight(kg) |
290 |
300 |
550 |
850 |
2040 |
2500 |
2800 |
Working Principle of the Mixer Machine
The entire housing is V-shaped, consisting of 2 cylinders welded at 75° to 90°, and rotates to allow mixing of the components by diffusion mixing. there is no agitator inside the V-mixer, and all movement of the powder is due to an avalanche of product caused by the rotation of the housing. Optimal mixing is obtained after a certain number of rotations. These mixers usually have 2 openings at the top of the "V" shape, which facilitates easy discharge of the mixer at the end of mixing.
Welcome to contact us for more details about our V mixers and grinders.
