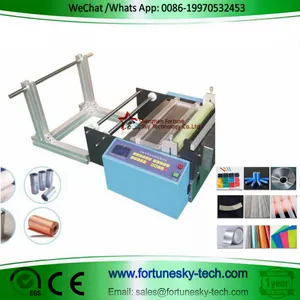

The HZX Series: Automatic Foil and Film Cutting Machines - Effortlessly Cut Sheets to Your Exact Needs
The HZX Series Automatic Foil and Film Cutting Machines introduce a revolution in cutting efficiency for aluminum and copper foil, non-woven fabrics, wallpaper, PVC film, PE film, and more.
Effortless Operation, Exceptional Results:
Versatile Material Handling: Effortlessly cut a wide range of materials, including aluminum and copper foil, non-woven fabrics, wallpaper, PVC film, PE film, and reflective film.
Precise Sheet Cutting: Simply set your desired cutting length, and the machine delivers fast, accurate cuts every single time. Experience cutting speeds of up to 100 sheets per minute (at 50mm cutting length).
User-Friendly Design: The intuitive interface simplifies operation, allowing for easy setting of cutting lengths.
Technical Specifications:
Model No. Cutting Tool Cutting Width (mm) Cutting Length (mm) Precision (mm) Cutting Thickness (mm) Speed (pcs/min) Weight (Kg)
HZX-400 Upper and Lower Blade 1-360 0-9999.9 0.1 0.5 100 345
HZX-500 Upper and Lower Blade 1-460 0-9999.9 0.1 0.5 100 75
HZX-600 Upper and Lower Blade 1-560 0-9999.9 0.1 0.7 100 83
HZX-700 Upper and Lower Blade 1-660 0-9999.9 0.1 0.8 100 92
The HZX Series: Automatic Foil and Film Cutting Machines - Effortlessly Cut Sheets to Your Exact Needs
The HZX Series Automatic Foil and Film Cutting Machines introduce a revolution in cutting efficiency for aluminum and copper foil, non-woven fabrics, wallpaper, PVC film, PE film, and more.
Effortless Operation, Exceptional Results:
Versatile Material Handling: Effortlessly cut a wide range of materials, including aluminum and copper foil, non-woven fabrics, wallpaper, PVC film, PE film, and reflective film.
Precise Sheet Cutting: Simply set your desired cutting length, and the machine delivers fast, accurate cuts every single time. Experience cutting speeds of up to 100 sheets per minute (at 50mm cutting length).
User-Friendly Design: The intuitive interface simplifies operation, allowing for easy setting of cutting lengths.
Technical Specifications:
Model No. Cutting Tool Cutting Width (mm) Cutting Length (mm) Precision (mm) Cutting Thickness (mm) Speed (pcs/min) Weight (Kg)
HZX-400 Upper and Lower Blade 1-360 0-9999.9 0.1 0.5 100 345
HZX-500 Upper and Lower Blade 1-460 0-9999.9 0.1 0.5 100 75
HZX-600 Upper and Lower Blade 1-560 0-9999.9 0.1 0.7 100 83
HZX-700 Upper and Lower Blade 1-660 0-9999.9 0.1 0.8 100 92
Additional Information:
Decoiler (uncoiler) is not included with the machine but a free aluminum alloyed decoiler with a payload capacity of 10-15KG is provided.
The HZX Series Automatic Foil and Film Cutting Machines are perfect solutions for businesses seeking to streamline and elevate their cutting processes for various foil and film materials. Their versatility, precision, and user-friendly design make them valuable assets for any production line.
