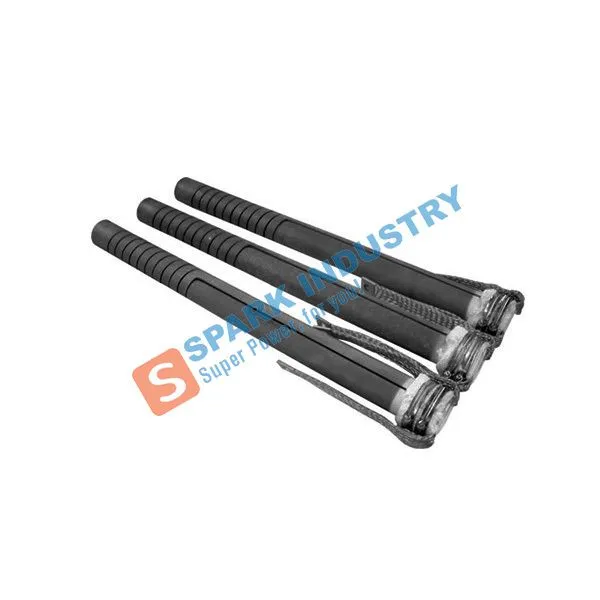

Help CenterSGR Type SiC Heating Elements Fast Heating Long Life 1500 Deg C.
Related Products
-
U Type Silicon Carbide Rod Cold Ends Metallized With AluminumUS$ 10 - 50MOQ: 10 Pieces -
W Type SiC Heating Elements Withstands as High as 1500°CUS$ 10 - 50MOQ: 10 Pieces
-
1500 Long Service Life H Type Silicon Carbide Rod Anti-oxidization Anti- CorrosionUS$ 10 - 50MOQ: 10 Pieces
-
DB ( Dumbbell ) Type Silicon Carbide Heating Element for FurnacesUS$ 10 - 50MOQ: 10 Pieces
-
Strong Acid Resistance G Type SiC Heating ElementsUS$ 10 - 50MOQ: 10 Pieces

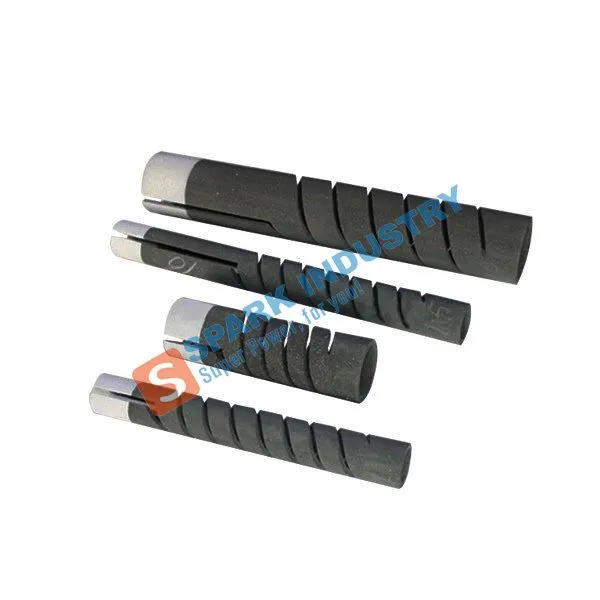

SCR(SGR, SEU) type double-spiral silicon carbide heating elements are cut so as to place both electrical terminations on the same end of the element.They are supplied with the terminal assembly attached. SGR (SCR) type Torch Furnace silicon carbide design or dimensions preclude wiring from both sides of the furnace. This type is ideal for blind holes and the operating temperature can be up to 1500 deg C.
it is also widely used in various high temperature electric furnaces and other electric heating debices, such as in the industrial of magnet, ceramics, powder metallurgy, glass, metallurgy and michinery etc.
Features:
1, High temperature resistance, resistance to oxidation and corrosion
2, Fast heating, long life, small deformation at high temperature, easy to install and maintain
3, With automatic electronic control systems, precision constant temperature can be obtained, curve temperature control can be obtained too according to the needs of production
To Order SCR (SGR, SEU) Type Silicon Carbide Heating Rod, please provide the following information:
Type: SCR
Outer diameter (OD): mm
Hot zone length (HZ): mm
Cold end length (CZ): mm
Overall length (OL): mm
Example:
SCR,OD=31.7mm,HZ=305mm,CZ=241mm,OL=546mm,Resistance 4.46 ohms
Specify as: SCR,31.7/305/546/4.46 ohms
Outer Diameter |
Hot zone |
Cold zone |
Overall length |
Range of resistance |
8 |
100-300 |
60-200 |
240-700 |
2.1-8.6 |
12 |
100-400 |
100-350 |
300-1100 |
0.8-5.8 |
14 |
100-500 |
150-350 |
400-1200 |
0.7-5.6 |
16 |
200-600 |
200-350 |
600-1300 |
0.7-4.4 |
18 |
200-800 |
200-400 |
600-1600 |
0.7-5.8 |
20 |
200-800 |
250-600 |
700-2000 |
0.6-6.0 |
25 |
200-1200 |
250-700 |
700-2600 |
0.4-5.0 |
30 |
300-2000 |
250-800 |
800-3600 |
0.4-4.0 |
35 |
400-2000 |
250-800 |
900-3600 |
0.5-3.6 |
40 |
500-2700 |
250-800 |
1000-4300 |
0.5-3.4 |
45 |
500-3000 |
250-750 |
1000-4500 |
0.3-3.0 |
50 |
600-2500 |
300-750 |
1200-4000 |
0.3-2.5 |
54 |
600-2500 |
300-750 |
1200-4000 |
0.3-3.0 |
