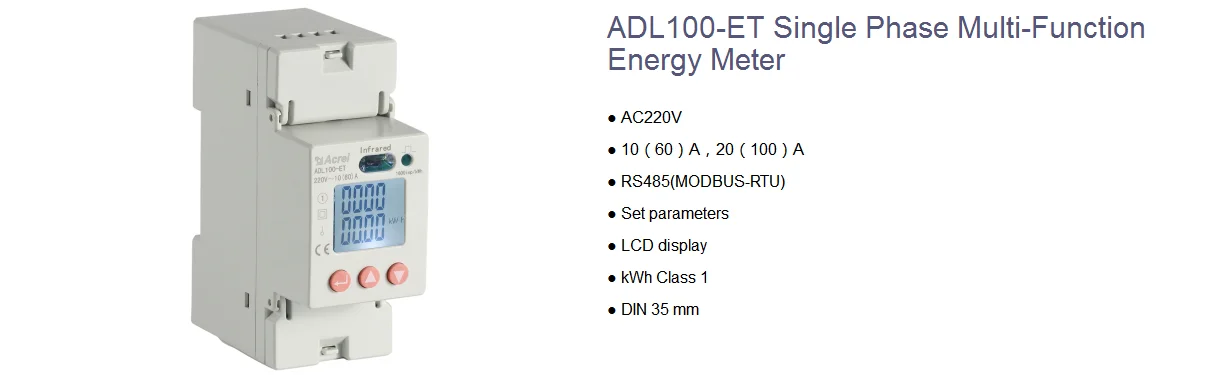

Acrel ADL100-ET/C CE Approved RS485 Single Phase Multifuction KWH Meter / IoT Cloud Electricity Meter
US$ 41.3 - 41.3
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ADL100-ET/C
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangsu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel ADL100-ET/F Multi Traiff Energies CE Approved Single Phase Multifuction KWH Meter / IoT Cloud Electricity MeterUS$ 41.3 - 41.3MOQ: 1 Piece -
High Quality Acrel ADL400 Din Rail 3phase 4wire 220/380V Energy Meter for Power Consumption Monitoring With MID CertificateUS$ 46.9 - 46.9MOQ: 1 Piece
-
High Quality Acrel ADL400/F Multi Tariff Energies Din Rail 3phase 4wire 220/380V Energy Meter for Power Consumption Monitoring With MID CertificateUS$ 53.2 - 53.2MOQ: 1 Piece
-
Acrel ADL3000-E Multi Tarrif Three Phase Energy Meter Electric Charging Meter Car 2 Channel RS485 CommunicationUS$ 70 - 70MOQ: 1 Piece
-
Acrel ADL400 Smart Electricity Meter / Din Rail Eneryg Meter/ Solar Power MeterUS$ 70 - 70MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
ADL100-ET/C
Phase
Single Phase
Output Voltage
220V
Operating Temperature
-25℃~55℃

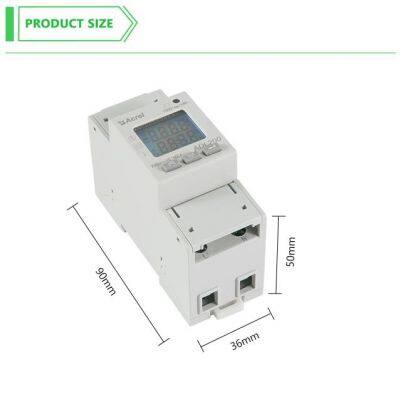

Dimensions
36mm*96 mm*70mm

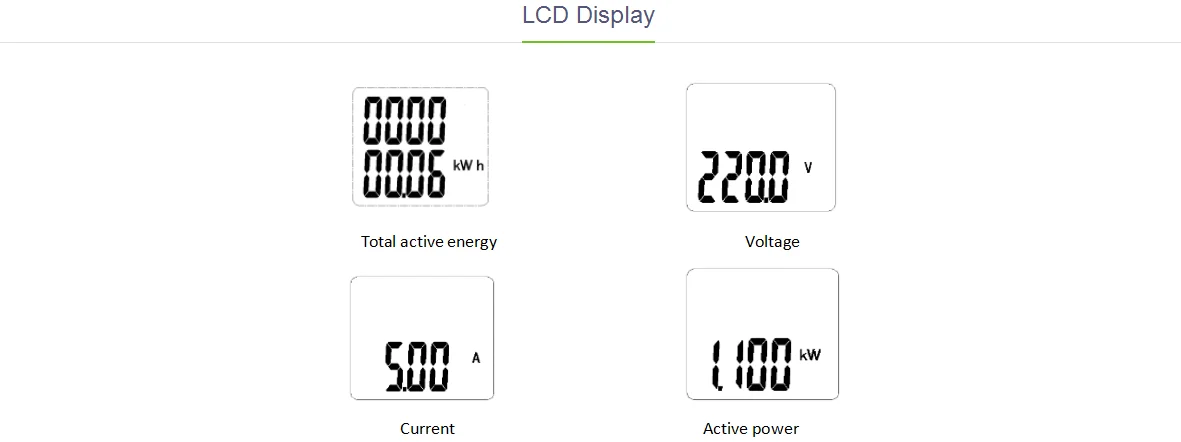

Display Type
Analog and Digital
Accuracy Class
1 class
Measuring Energy Range
000000.00~999999.99kWh

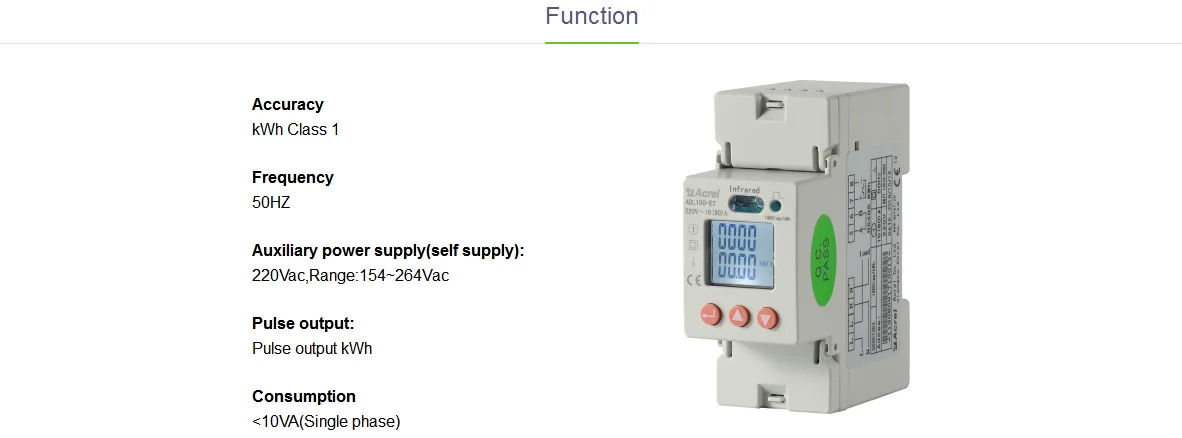

Technical Parameters
Voltage | Reference voltage | AC 220V | |||||
Reference frequency | 45-65 Hz | ||||||
Consumption | <10VA( Single phase) | ||||||
Current | Maximum | 60A | |||||
Starting current | 0.004 Ib | ||||||
Consumption | <4VA(Maximum current) | ||||||
Measurement performance | Accuracy of active kWH | Class 1 | |||||
Standards complicant | IEC 62053-21:2003 | ||||||
Pulse | Pulse width | 80+20 ms | |||||
Pulse constant | 3200 imp/kWH | ||||||
Communication | Interface | RS485 | |||||
Protocol | Modbus-RTU | ||||||

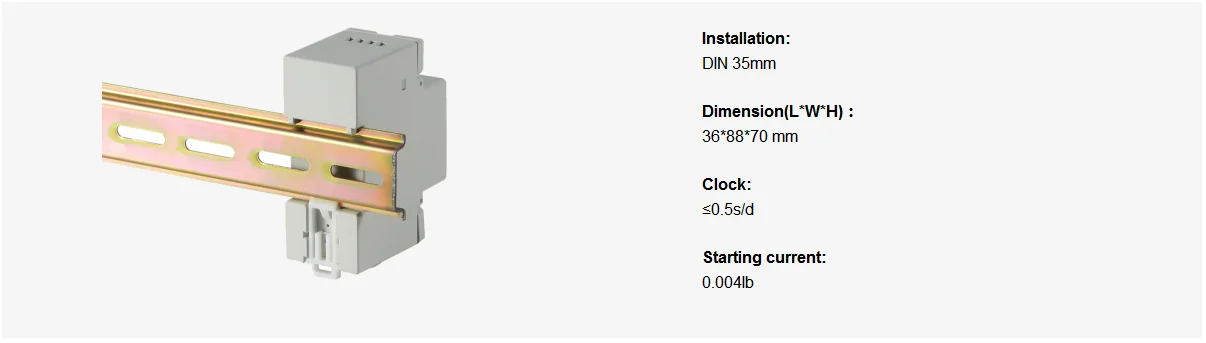

Outling | L*W*H(mm) | 36*88*70 | |||||
Environment | Temperature | Operating:-25℃~55℃；Storage:-40℃~70℃ | |||||
Humidity | ≦95% (No condensation) | ||||||
Altitude | <2000m | ||||||
