30-50t Excavator Loader Machine Hydraulic Electric Control Rotating Clamp Timber Tree Wood Log Grapple Wood Rotator Grab

Product introduction:

I. Basic Structure and Composition

The hydraulic timber grab comprises primarily of the following integral parts:

• Hydraulic Cylinders: Serving as the power source, they facilitate the opening and closing of the grab, driving its operations.

• Jaw Plates (or Bucket Plates): Typically crafted from wear-resistant materials, they are pivotally connected to the frame, creating a space to ensnare the timber.

• Frame: This structure supports the entire grab, housing the hydraulic system and control components within.

• Hydraulic System: Encompassing motors, hydraulic pumps, valve blocks, and piping, it regulates the extension and retraction of the hydraulic cylinders, subsequently controlling the grab's opening and closing movements.

II. Working Principle

The hydraulic timber grab operates on the principle of hydraulic transmission. When the motor powers the hydraulic pump, the pump converts mechanical energy into hydraulic energy, which is then transmitted through piping to the hydraulic cylinders. The pistons within these cylinders expand and contract under the influence of hydraulic energy, driving the movement of the jaw plates. When the jaw plates close, they capture and secure the timber within the grab; conversely, when they open, the timber is released to the designated location.

III. Features and Advantages

• Efficiency: The hydraulic timber grab executes timber gripping and handling tasks swiftly and precisely, significantly enhancing operational efficiency.

• Safety: Employing hydraulic transmission technology, the grab's opening and closing movements are smooth and controllable, mitigating potential safety hazards during operation.

• Adaptability: It can be adjusted and optimized according to various timber sizes and shapes, catering to diverse gripping requirements.

• Durability: The jaw plates and critical components are often made of abrasion-resistant materials, enabling them to withstand significant impacts and wear, thereby prolonging their service life.

IV. Application Fields

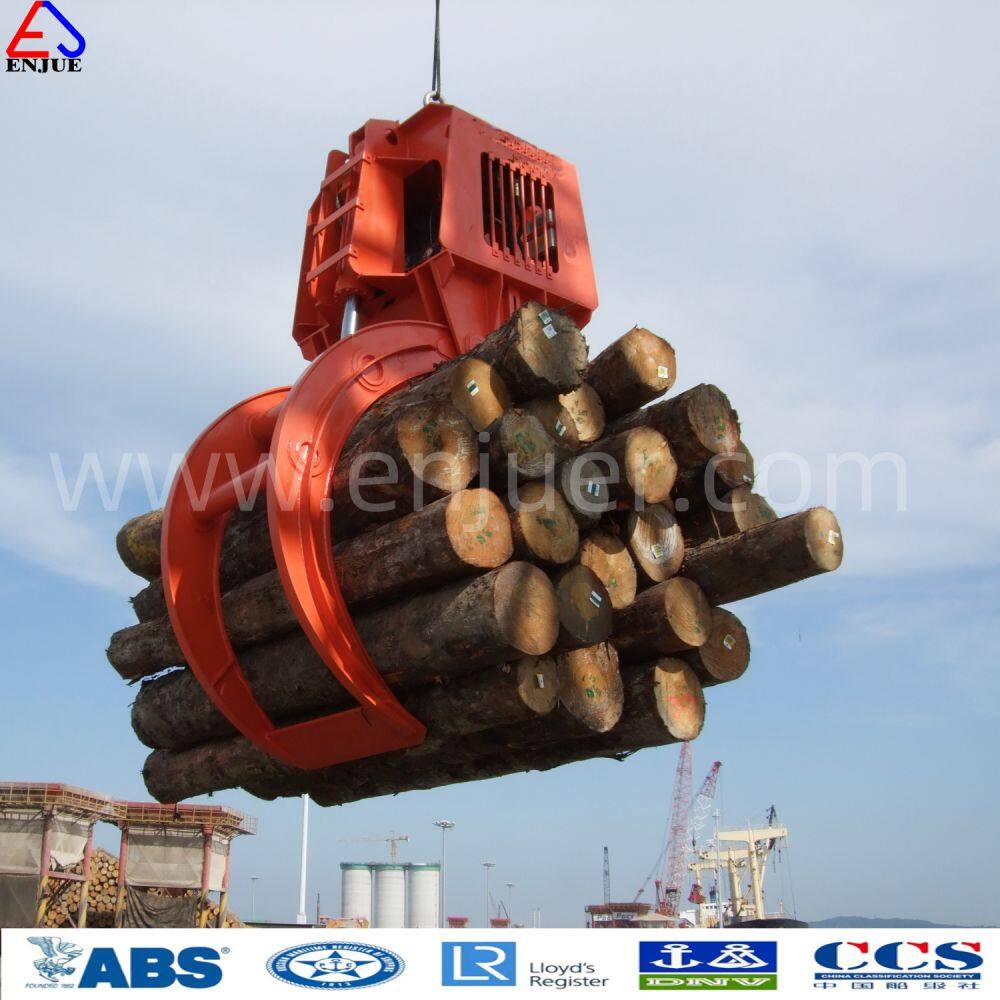

The hydraulic timber grab finds extensive applications in sectors such as timber processing, forestry, and port logistics. In the timber processing industry, it is utilized for loading, unloading, and handling of logs. In forestry, it aids in tree felling and transportation. Additionally, within port logistics, it plays a pivotal role in the loading and unloading of timber onto and off ships.

Our Services:
Act as a good adviser and assistant of client, we can help them to get rich and generous   returns  on their investment.

1. Pre-sale services:
      a: Design customised project for clients.
      b: Design and manufcture products according to clients special requirement.
      c: Train technical personnel for clients.

2. Services during the sale:
      a: Help clients to find reasonable freight forwarders ahead of delivery.
      b: Help clients to draw solving plans.

3. After-sale services:
       a: Assist clients to prepare for the construction scheme.
       b: Install and debug equipment.
       c: Train the first-lin operators.
       d: Examine equipment.
       e: Take initiative to eliminate the troubles immediately.

If you are interested in our products, pls feel free to contact with us by email  or WECHAT/WHATAPP , if you can provide below inquiry informaion that would be better :

1. What kind grab do you need ? Elecrtic hydraulic grab, radio controlled grab, four rope grab ?

2.What kind bulk cargo will be discharged?

3. What,s the (SWL)safe work Load of your crane ?

4.How many pcs do you need ?

5. Any special certificate request ?

6. Which port is the destination port ?

Please never hesitate contact with me!  Your reliable partner!

My Whatsapp : +8615102153877
