Semi-automatic coaxial stripping machine is suitable for all kinds of flexible and semi-flexible coaxial line, charging pile cable, medical line in the communication industry, peeling neatly, precision and no damage to conductors; The machine can meet the special requirements of multi-layer peeling, multi-stage peeling, automatic continuous starting and so on.
product feature：
1, semi-automatic coaxial stripping machine is also called coaxial stripping machine, suitable for the communication industry, medical automotive industry, especially for the rise of new energy wiring harness, automotive wiring harness all kinds of flexible and semi-flexible coaxial line, charging pile cable, medical line, peeling, neat, precision does not damage the conductor;
2, coaxial line stripping machine man-machine interface, easy to understand the operation, can peel up to 9 layers, can store up to 99 kinds of processing data;
3. The starting mode can be operated by manual button, top rod touch and foot switch, which is suitable for different working occasions, responsive and fast;
4, coaxial line stripping machine adopts servo motor, precision ball screw and multi-point motion control system, stable and efficient performance.

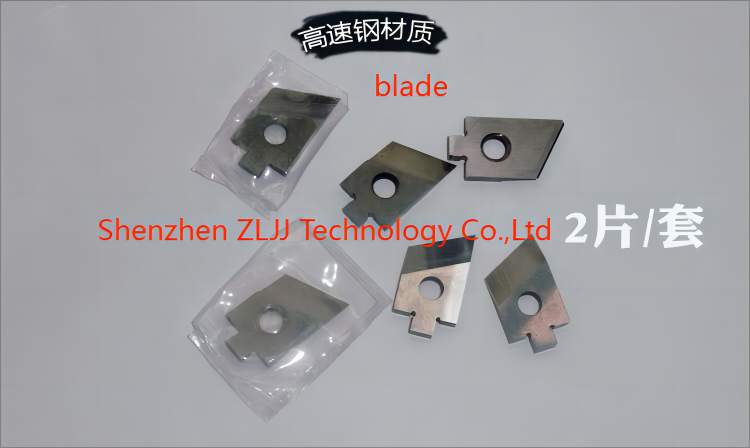

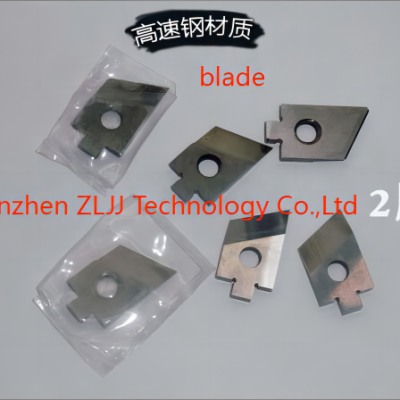

5, the tool adopts imported tungsten steel and titanium alloy coating, sharp and durable;
6, semi-automatic coaxial line stripping machine can meet the special requirements of multi-layer peeling, multi-section peeling, automatic continuous starting and so on.
Product Parameter：

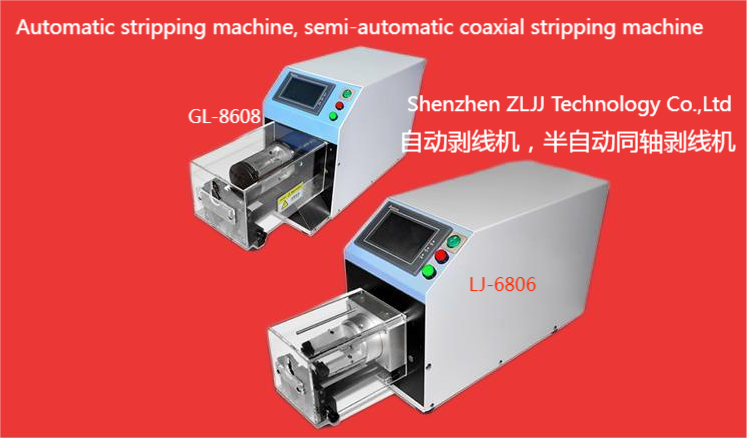

Type number : LJ-6806 : LJ-8608
Machining diameter : Up to 6.99mm : 3.0 to 18 mm
Cutting depth : The 0.01 mm : The 0.01 mm
Processing efficiency : 700-1200pcs/h depends on the cable:400-800pcs/h
Maximum strip length : 48mm : 90mm
Maximum number of peeling layers:9 floors : 9 floors
Overall dimension:600 * 185 * 280 : 720 * 280 * 350
weight : 24kg : 40 kg
Electric source : AC220V 50 60HZ : AC220V 50 60HZ
Work rate : 400W : 550W
