Help Center8way RDM Signal Distributor
Related Products
◆ Digital signal type: using the international common DMX512-RDM two way
communication protocol, and RJ45 terminal interface transmission of digital signals; Allows your console device to easily read and set the lamp parameters at a distance (such as: set the lamp address, read the lamp
library parameters, find the lamp, etc.), also allows your console
device to drive more lighting equipment;
◆ 1 signal input, 1 straight signal output (there is electrical isolation between signal input and straight signal), with signal input indicator;
8 electrical isolation signal distribution output, each with signal
indicator;
◆Enhance the ability of data bus access to the number of devices. Protect the DMX512 output interface of the lighting console, isolate the fault
site, and improve the safe operation reliability of the digital lighting control system.
◆ With two way DMX512-RDM protocol function, lighting information can be fed back to the lighting console with RDM function such as the MA console.

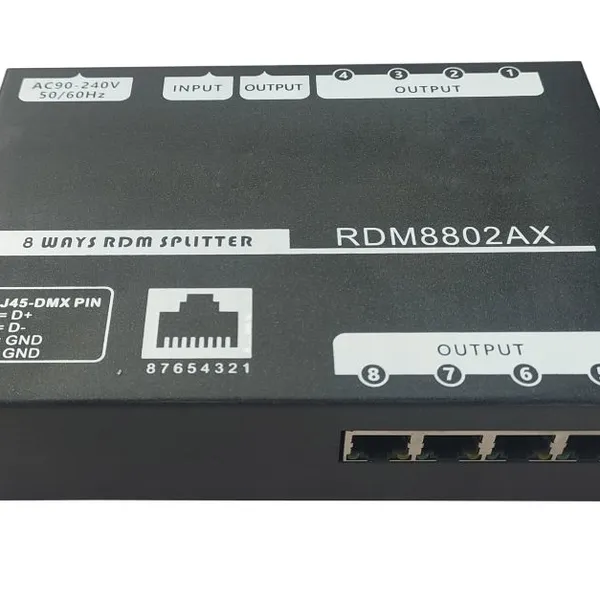

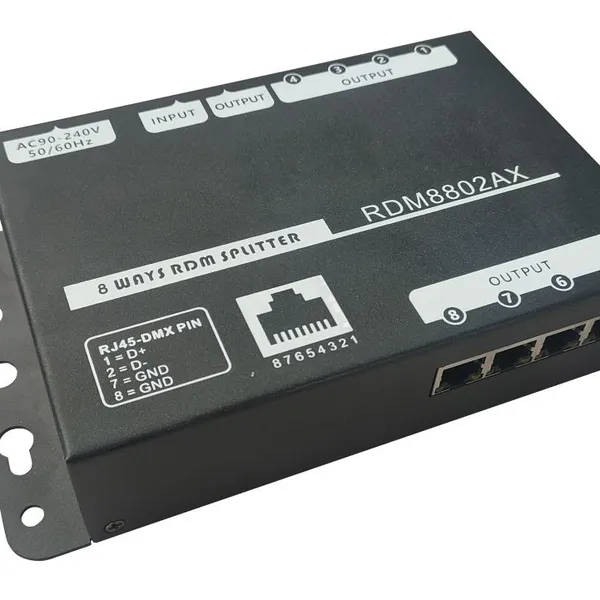

◆ Signal connection socket: Input and output ports are RJ45 terminals
◆ Input to output electrical isolation voltage: > AC300V
◆ Power supply: AC90V~240V, 50Hz / 60Hz, 15W;
◆ Size: 25×12.3× 4.3cm
◆Installation method: can be fixed with screws or hanging with light hook installation.
