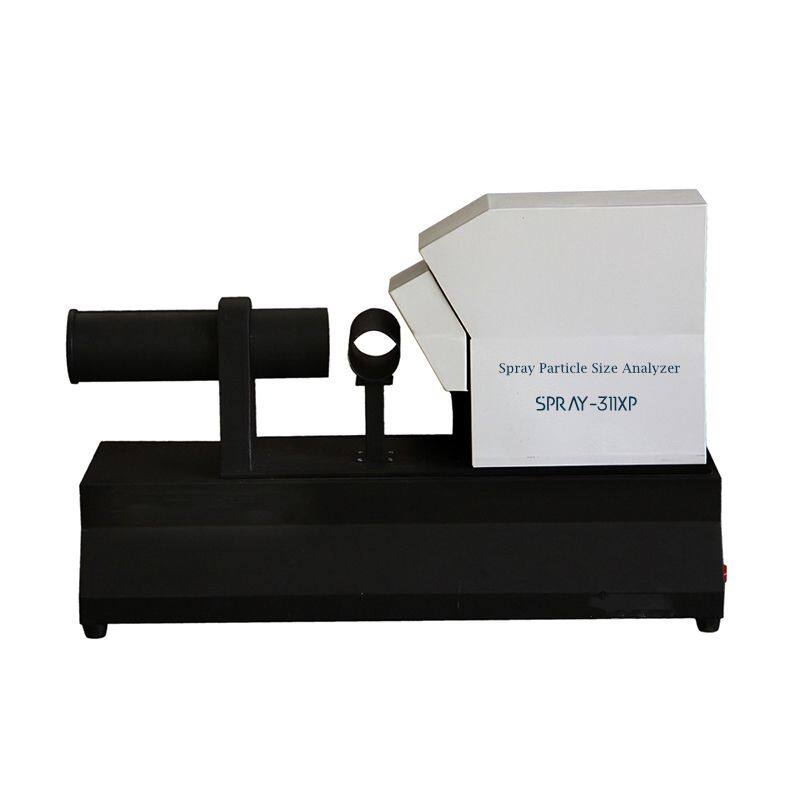

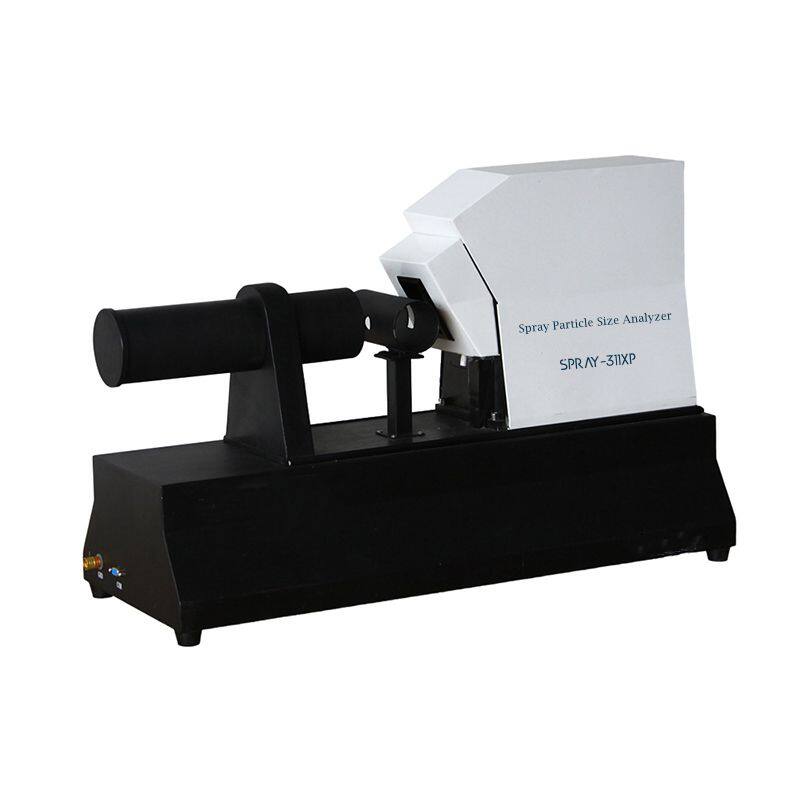

SPRAY-311XP Particle Size Distribution of Automobile Paint Sprays Analyzer Profile:
SPRAY-311XP desktop spray laser particle size analyzer is designed and developed specially for the droplet particle size distribution test of small spray equipment. It integrates several patent technologies including lens protection devices, it can measure droplets particles in the air without touch, it’s mainly applied to medical atomizer, atomization medicine, various aerosol, spray, and other small spray equipment, especially suitable for the national pharmacopoeia for inhalation aerosol, spray, powder mist and other particle size testing requirements.
SPRAY-311XP analyzer working diagram
SPRAY-311XP Particle Size Distribution of Automobile Paint Sprays Analyzer Applications:
Medical nebulizer, nasal spray, respiratory nebulizer, ultrasonic sprayer, facial steamer, aromatherapy, facial steamer, electronic cigarette, anesthesia nebulizer, oxygen concentrator.
SPRAY-311XP Particle Size Distribution of Automobile Paint Sprays Analyzer Specifications:
Model |
SPRAY-311XP |
Standards |
ISO13320:2009, GB/T19077-2016, Q/0100JWN001-2013 |
Size Range |
0.1-100µm |
Detector Channels |
40 pcs |
Accuracy Error |
|
Repeatability Error |
|
Light Source |
semiconductor red laser λ= 650nm p>1mw |
Feeding |
open |
Measurement Area Length |
6cm |
Dimension |
L66 x W26 x H45 cm |
N.W. |
19 KG |
SPRAY-311XP Particle Size Distribution of Automobile Paint Sprays Analyzer Features:
1) Unique optical path patented technology
Based on laser scattering principle, adopt a single beam of parallel light path and the dual-lens, dual-array detector technology to ensure high collection of scattering light at different angles, this extends the measurement limitations, improves the resolution of the instrument.
2) Unique air flow protection device
Airflow protection system can effectively protect the lens to avoid droplet pollution in the testing process, prolong the service life of the instrument.
3) Auto calibration: the multiple scattering automatic correction function be designed according to the spray field concentration ensures the accuracy and repeatability of the test results and can be adapted to the measurement of spray with different concentrations.
4) There are three software distribution modes, free distribution, R-R distribution, and Log distribution. It can meet the particle size testing of various industries.
5) Using the patented software analysis technology of free fitting, can truly reflect the particle size distribution data.
6) The desktop spray laser particle size analyzer is specially developed for the particle size requirements of inhaled aerosols, sprays, and powder aerosols in the pharmacopoeia. For testing, it integrates a variety of patented technologies, and it is the best choice for small spray particle size testing.
find more from www (dot) goldapp (dot) com (dot) cn.
