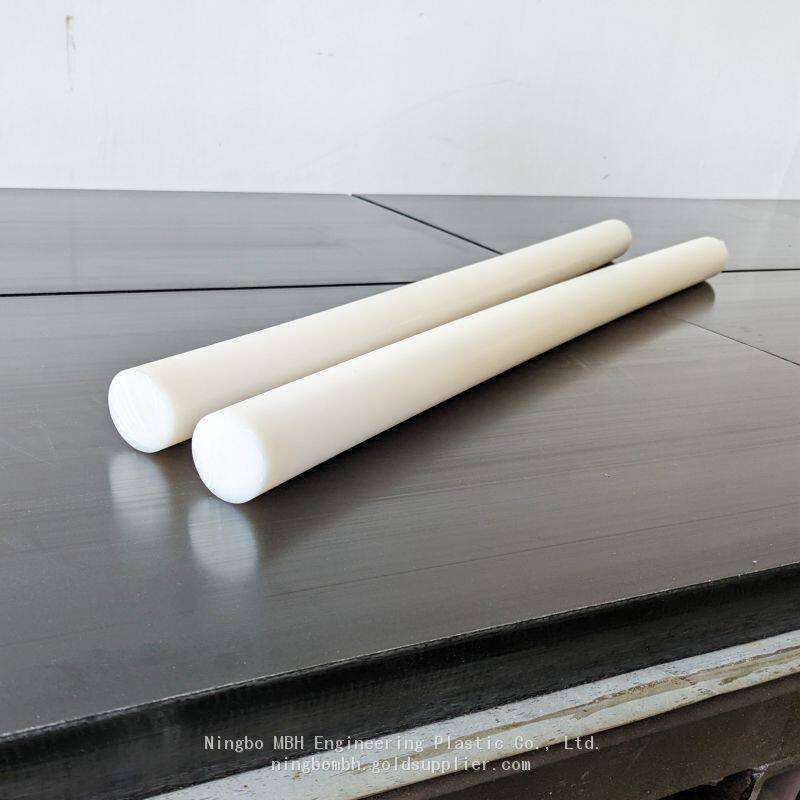

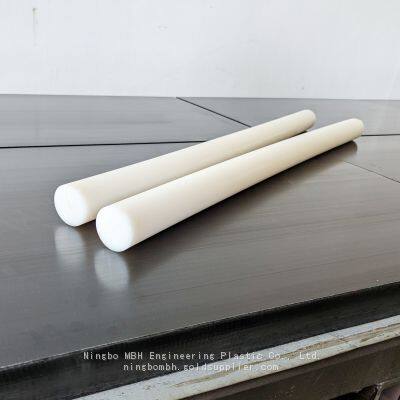

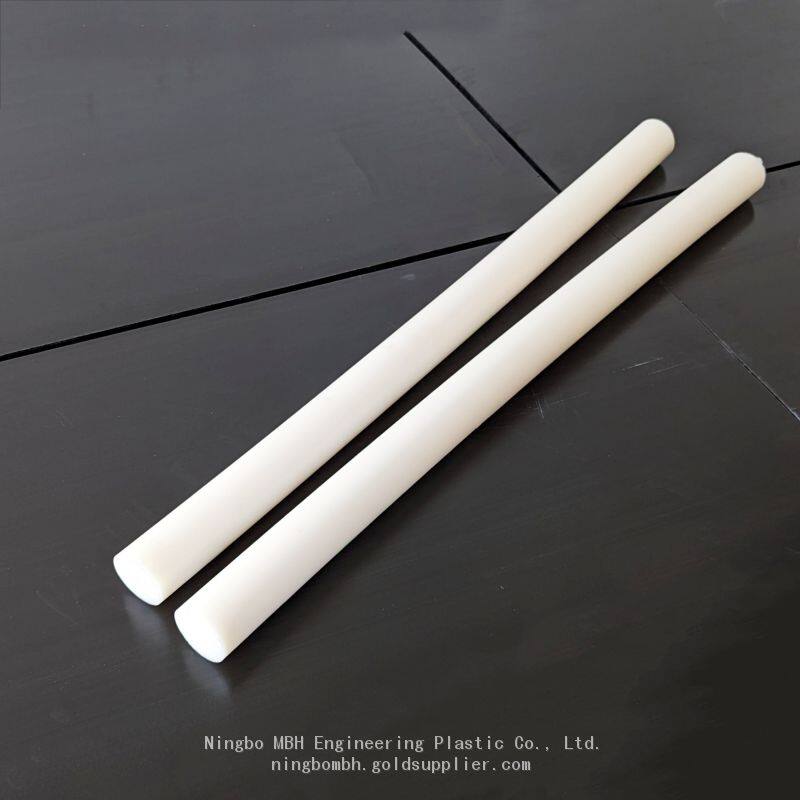

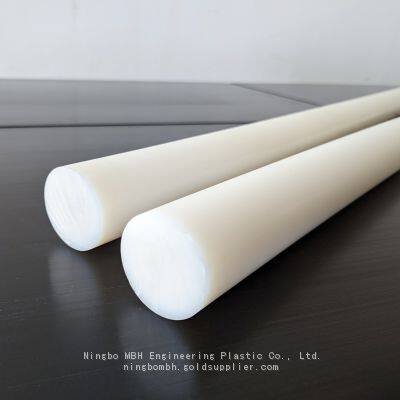

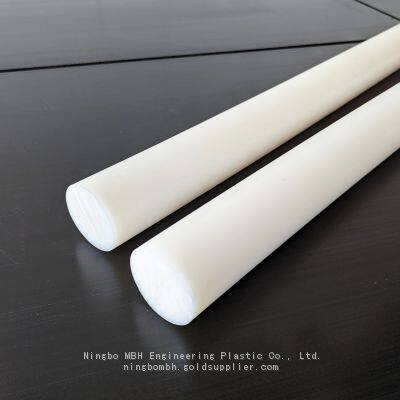

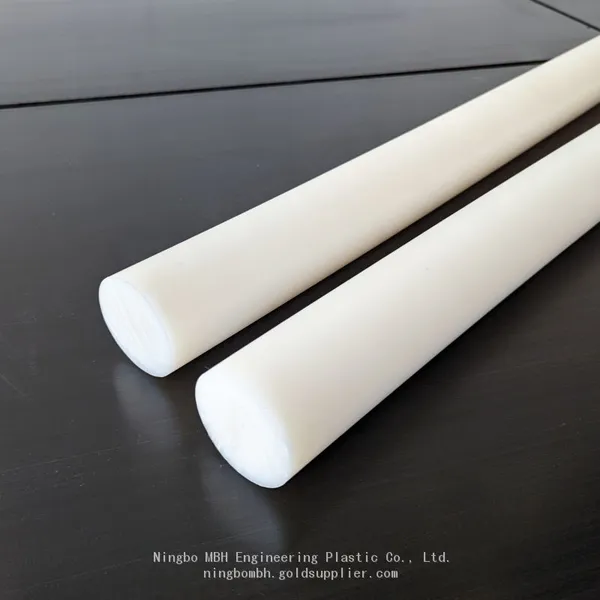

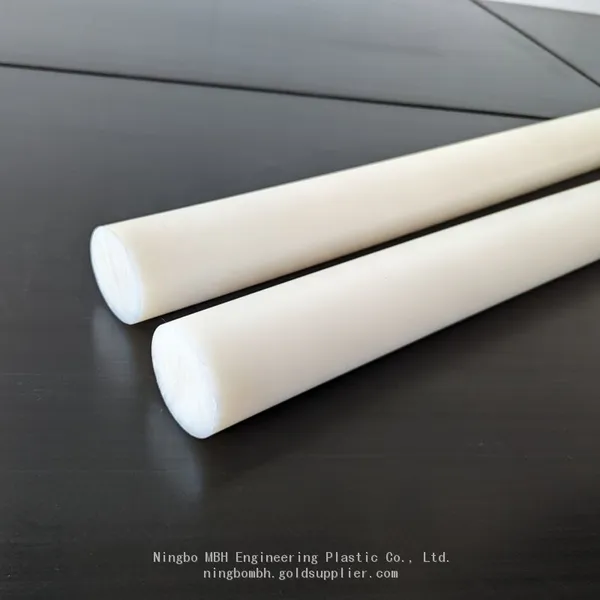

China Ningbo Manufactured Customized Extruded Tefel ETFE Rods

US$ 400 - 500 MOQ: 1 Kilogram

Key Specifications

Brand Name:

MBH

Place of Origin:

China

Model Number:

MBH-ETFER-055

Ningbo MBH Engineering Plastic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

3 days

Brand Name MBH

Place of Origin China

Model Number MBH-ETFER-055

Material Other, ETFE

Size D55mm

Thickness 1000mm

ETFE (ethylene tetrafluoroethylene) commonly referred to as Tefzel® is a modified copolymer of ethylene and tetrafluoroethylene. It has medium stiffness, which makes it suitable for applications such as chemical tank linings that require weldability and the ability to conform to curved metal or FRP surfaces. ETFE is often used in applications that demand mechanical toughness, moderate stiffness, and outstanding chemical resistance.

PCTFE Main Advantage:
Main Advantage:
Especially suitable for cryogenic applications
Excellent resistance to creep
Dimensionally stable over a wide temperature range
Extremely low gas permeability
FDA approval
Transparent and coloured compounds
Working temperature from -240°C to +180˚C
Chemically inert to a wide range of industrial chemicals and solvents
Exceptional dielectric insulation properties
Rugged, good abrasion resistance, and impact strength
May be welded with hot air welding equipment
High resistance to outdoor weathering
Radiation and heat sterilization resistant
ETFE TYPICAL PROPERTIES

Marbarm ETFE
ITEM	UNIT	TEST METHOD	TEST Value
Melting point	ºC	D-3159	245~255
Proportion	g/cm³	HG/T 2904-1997	1.70~1.75
Rockwell hardness	HB	D-2240	61~70
Tensile Strength(23ºC)	Mpa	HG/T 2904-1997	30~50
Elongation at break(23ºC)	%	HG/T 2904-1997	300~450
Notched Impact Strength(23ºC)	Ft-lb/in	HG/T 2904 1997	No Break
water absorption	%	HG/T 2902-1997	≤0.03
Oxygen Index	%	GB/ T 2406-93	30~40
Flammability	Level	GB/T 2408-2008	V-0
Dielectric constant	/	HG/T 2904-1997	≤2.4
Dielectric dissipation factor	/	HG/T 2904-1997	0.008
Puncture voltage resistance(0.2mm)	KV	ASTM D149	Over 7.SKV
GTT(glass-transition temperature)	ºC	DMA	80~120
Service temperature	ºC	UL-746	-50~150

Material	Brand	Size (Rod)	Services	Application
ETFE	MBH	Dia. 4 /5/6/7/8/9/10/13/16/18/22/ 25/26/40/45/50/55/	sheet/rod extrusion and machining and plastic modified services	medical, pharmaceutical, and semi-conductor, Aerospace, Auto etc.
