M10 182mm Topcon Solar Cells MS-SC182MTB16

M10 182mm Topcon Solar Cells MS-SC182MTB16 thumbnail-1
M10 182mm Topcon Solar Cells MS-SC182MTB16 thumbnail-2
M10 182mm Topcon Solar Cells MS-SC182MTB16 thumbnail-3
M10 182mm Topcon Solar Cells MS-SC182MTB16 thumbnail-4
M10 182mm Topcon Solar Cells MS-SC182MTB16 thumbnail-5

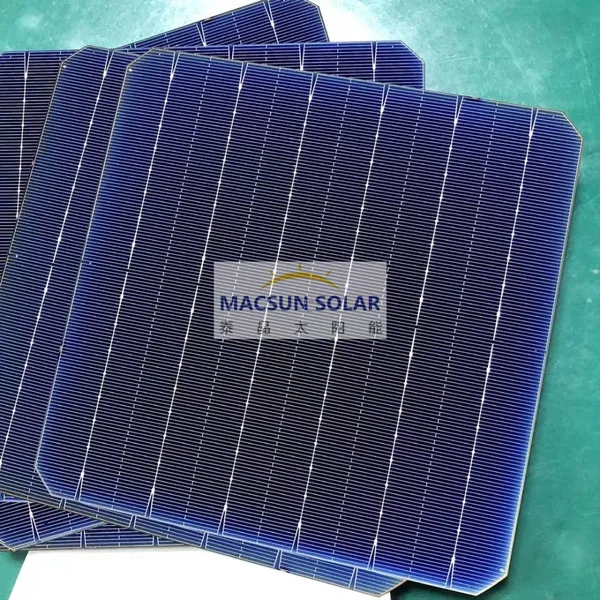

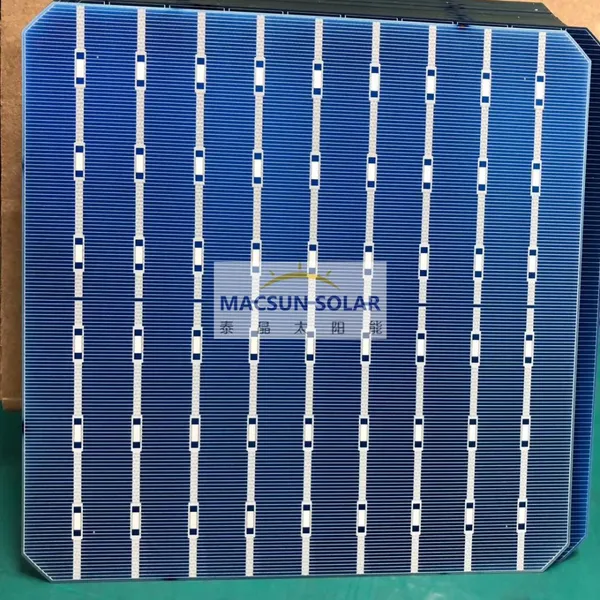

M10 182mm Topcon Solar Cells MS-SC182MTB16 photo-1
M10 182mm Topcon Solar Cells MS-SC182MTB16 photo-2
M10 182mm Topcon Solar Cells MS-SC182MTB16 photo-3
M10 182mm Topcon Solar Cells MS-SC182MTB16 photo-4
M10 182mm Topcon Solar Cells MS-SC182MTB16 photo-5
US$ 0.5 - 0.8 MOQ: 200000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Macsun Solar
Place of Origin:
China
Model Number:
MS-SC182MTB16
Contact Supplier Request Quote Chat Now
Macsun Solar Energy Technology Co.,Limited
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Macsun Solar
Place of Origin China
Model Number MS-SC182MTB16
Material Monocrystalline Silicon
Size 182mm
Product Name： M10 182mm Topcon Solar Cells MS-SC182MTB16

Geometry Characteristics：
Product model:182 mono-crystalline Bifacial solar cell
Geometry：182.2mmx182.2mm±0.5mm, Φ 247.28mm±0.5mm
Cell thickness:130μm±13μm

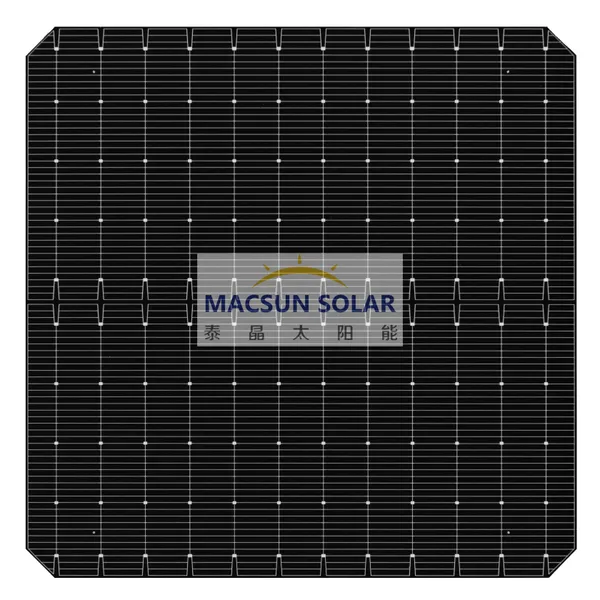

Front design：16 busbars, 12 pads, 132 fingers, busbar width 0.036±0.02mm
Rear design：16 busbars, 12 pads, 134 fingers, busbar width 0.036±0.02mm

Product Characteristics：
High efficiency, Eta≥24.5%
Bifacial rate up to 80%
Light-induced Degradation is "0"
Superior anti-PID performance
Temperature coefficient of Power as low as -0.32%/K
Relative conversion efficiency≥97% under low light(200W/m2)
Lower Cell to Module (CTM) Loss Rate, more suitable for high- efficiency module

Quality Control：
The accuracy of the efficiency test is controlled within ±0.1%
Electrical performance, appearance, EL 100% automatic inspection
Calibration cells are traceable to Fraunhofer ISE

Temperature Coefficients：
TkCurrent： 0.045%/K‘
TkVoltage：−0.25%/K
TkPower：-0.32 %/K

Macsun Solar supplys Solar Cell, Solar Panel, Solar Power Station, Solar Power System, Solar Lamp, Solar Street Light, Solar Traffic Light, Solar Garden Light, Solar Charger, and other Solar product. We install the solar power system, solar power plant, solar farm, and other solar projects.

Product Tags: Topcon Solar Cells , Topcon Solar cells , Topcon Solar Panels , M10 182mm solar cells , Half cut solar cells , Perc Mono Solar Cells , Solar Cells , Solar Wafers , HJT Solar Cells
