Portable Hydraulic Oil Cleaning Machine

Application:

This series portable hydraulic oil cleaning can be used to handle (lower than 50%) and serious emulsified turbine oil, hydraulic oil, anti-wear oil , lubricant oil, waste engine oil, ship oil, waste marine oil, bunker oil, motor oil, fuel oil and so on. Many waste ship oil with large water in it, the portable hydraulic oil cleaning is best choice. Since if use centrifugal machine to handle the oil with water, which will let the oil emulsified, then the water and oil is not easy to separate out. So you can choose this vacuum oil purifier to handle that kind oil, which can handle the water out quickly.

The working priciple:

The water and gas discharges from vacuum separator, after via cooling and dehumidification cooling system twice, and finally exhaust air by a vacuum pump. The dried oil via separator vacuum vaporization dewatered by vacuum pump, which passes the oil pump change the negative pressure into positive pressure , after fine filtration, the cleaning oil discharge from the outlet, completing the process.

The main technology:

fessional technology: molecular de-emulsification, thin film evaporation combined with cooling systems.

2.Dehydration of high content water: after several times recycle, it can dehydrate the oil having water content up to 50%.

3. High efficiency: it can remove 0.65L to 2.8L water in one minute.

4. Long life span: It needn't change the dewatering system.

5. Remove water, high capacity emulsion breaking, not only be able to remove high amount of water from oil easily, but also easy to remove trace water from oil.

Optional Customized Design As Per Client’s Requirements:

(1) PLC intelligent control with touch screen operation and operation status dynamic display.

(2) Online moisture tester, online particle counter and online flow meter with adding-up function.

(3) Frequency converter for free adjustment of flow rate

(4) The whole structure of the machine: mobiles style with four wheels, fixed style, mobile style with trailer(double axles or single axle), fully enclosed style, conceal eaves type and open style of canvas etc.

RFQ

1.How often do clients need to change filters

Usually half to one year to change the filters. But it depends on oil cleanness.

2.What is your material of your machine?

Carbon steel or Stainless steel (Standard type is SUS304, it can be customized according to your request)

3. Any any of the products be customized?

Yes, we can customize the color, industrial power and your logo on machine. On the other hand, if you need the brand ingredients on the machine, you can have the choice on the imported pumps electrical ( electrical elements , PLC, touch screen LCD controller)

How to delivery:

Powerful wooden box, the general delivery time is 1 ~ 5 working days, if the machine is in stock, after the full payment can be shipped. For shipping companies, you can choose yours or ours, We have many years of export experience, then we can help you. The load port time depends on your own country. If you have no time, you can choose to delivery by air.

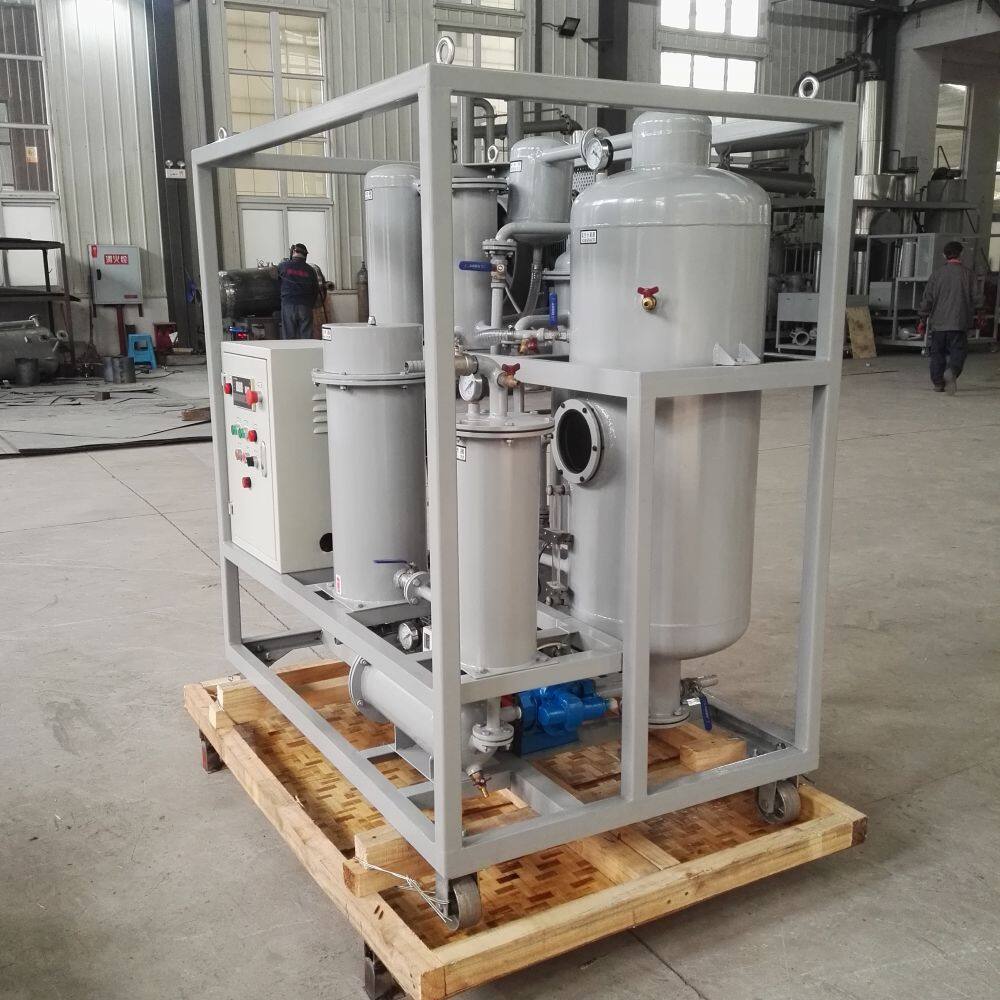

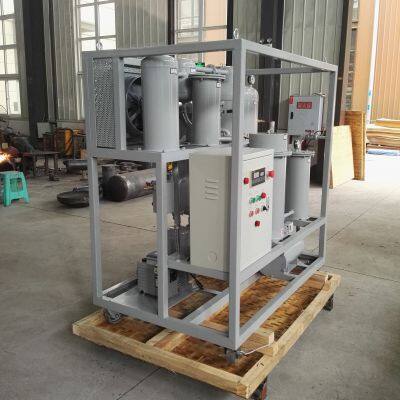

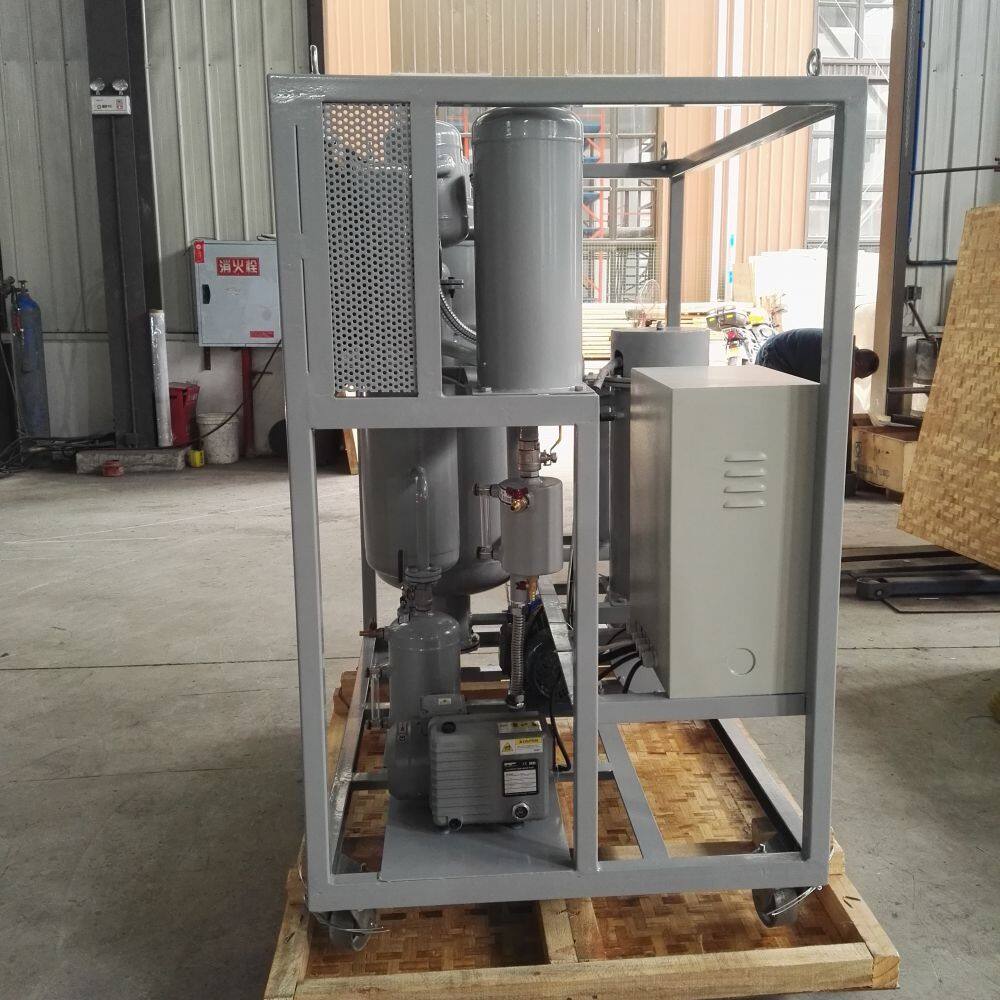

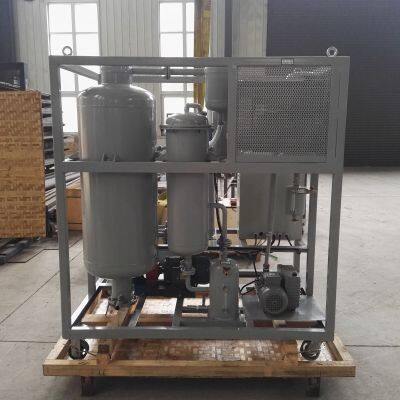

Portable hydraulic oil cleaning pictures:
