Home > Industrial Equipment & Components > Compressor > Compressor Unit > PSA Nitrogen Generator

PSA Nitrogen Generator

US$ 2000 - 10000 MOQ: 1 Set

Key Specifications

Get Latest Price

After-sales Service Provided:

Engineers available to service machinery overseas

Warranty:

1 Year

Condition:

New

Contact Supplier Request Quote Chat Now

Shanghai Success Engine Compressor Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Any China Port

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

After-sales Service Provided Engineers available to service machinery overseas

Warranty 1 Year

Condition New

PSA Nitrogen Generator

The Principles of PSA Nitrogen Generator
PSA( Pressure Swing Adsorption) is an advanced gas separation technology, based on the physical adsorption of the internal surface in the adsorbent to gas molecules, separating the gas by the characteristics of absorbing to the quantity of different gas in general pressure. The CMS (Carbon Molecular Sieve) is a sorbent picked up from the air, used in separating Oxygen and Nitrogen molecular. The absorption quantity of CMS is greatly higher for Oxygen than Nitrogen under the same pressure.

Flow Chat for PSA Nitrogen Generator


Equipment Selections
Based on the actual requirement of user, we will provide the energy-saving PSA Nitrogen Gas Generator solution.
Technical Parameter Summary Purity: 95%-99.9995% N2 Capacity: 1-2000Nm3/h Discharge N2 Pressure: 0-5.5 Bar (Normal) N2 Dew Point: -40℃ (Normal) Operation: Full automatic

Generally ,PSA oxygen gas generator is composed of five parts: A. Compressed Air Purification System, B. Air Tank System, C.O2/N2 Separation System, D. Nitrogen Buffer System, E. Electrical Control System.
A, Compressed Air Purification System (1), Air Compressor (2), First-grade Filters (3), Refrigeration Drier (4),Second-grade Filters (5),Third-grade Filters (6),Oil Removal B, Air Tank System (7),Air Tank	C,O2/N2 Separation System (8),Absorption Tower A (9),Absorption Tower B (10),Closing Valve (11),Pneumatic Valves (12),Guided Tracheal (13),Muffler (14),Carbon Molecular Sieve (15),Air-Cushion (16),Air Distribution (17),Wide Gas Collection (18),Adjust Pressure Filters (19),Cylinder (20),Base	D,O2 Buffer System (21)N2 Tank (22)Flow Meter (23)Reduce Pressure Valve (24)Emptying Valve (25)Export Control Valve E, Electrical Control System (26)N2 Analyzer (27)Automatic Alarm (28)PLC Controller (29)Electromagnetic Valve
Other optional supply like nitrogen booster, high pressure nitrogen storage tank and the filling stations can be bought separately.

ModelPurityCapacityModelPurityCapacityModelPurityCapacityESNG95-195%1ESNG99-199%1ESNG99.5-199.50%1ESNG95-55ESNG99-55ESNG99.5-55ESNG95-1010ESNG99-1010ESNG99.5-1010ESNG95-2020ESNG99-2020ESNG99.5-2020ESNG95-3030ESNG99-3030ESNG99.5-3030ESNG95-4040ESNG99-4040ESNG99.5-4040ESNG95-5050ESNG99-5050ESNG99.5-5050ESNG95-100100ESNG99-100100ESNG99.5-100100ESNG95-120120ESNG99-120120ESNG99.5-120120ESNG95-150150ESNG99-150150ESNG99.5-150150ESNG95-200200ESNG99-200200ESNG99.5-200200ESNG95-500500ESNG99-500500ESNG99.5-500500ESNG95-800800ESNG99-800800ESNG99.5-800800ESNG95-10001000ESNG99-10001000ESNG99.5-10001000ESNG95-20002000ESNG99-20002000ESNG99.5-20002000ESNG99.9-199.90%1ESNG99.99-199.99%1ESNG99.999-1100.00%1ESNG99.9-55ESNG99.99-55ESNG99.999-55ESNG99.9-1010ESNG99.99-1010ESNG99.999-1010ESNG99.9-2020ESNG99.99-2020ESNG99.999-2020ESNG99.9-3030ESNG99.99-3030ESNG99.999-3030ESNG99.9-4040ESNG99.99-4040ESNG99.999-4040ESNG99.9-5050ESNG99.99-5050ESNG99.999-5050ESNG99.9-100100ESNG99.99-100100ESNG99.999-100100ESNG99.9-120120ESNG99.99-120120ESNG99.999-120120ESNG99.9-150150ESNG99.99-150150ESNG99.999-150150ESNG99.9-200200ESNG99.99-200200ESNG99.999-200200ESNG99.9-500500ESNG99.99-500500ESNG99.999-500500ESNG99.9-800800ESNG99.99-800800ESNG99.999-800800ESNG99.9-10001000ESNG99.99-10001000ESNG99.999-10001000ESNG99.9-20002000ESNG99.99-20002000ESNG99.999-20002000

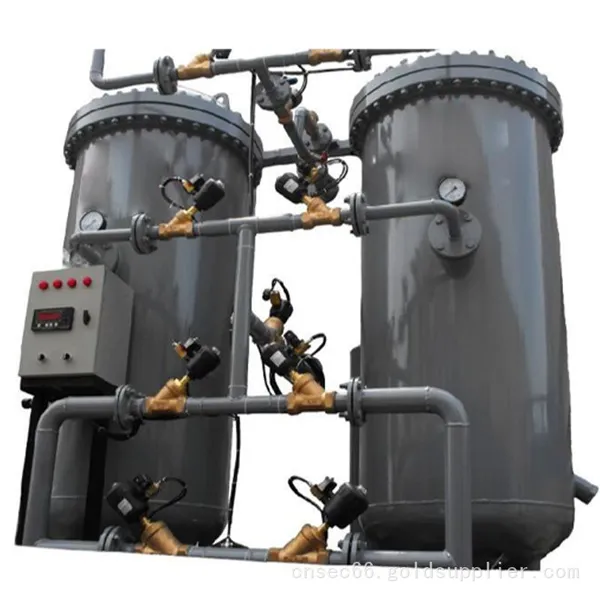

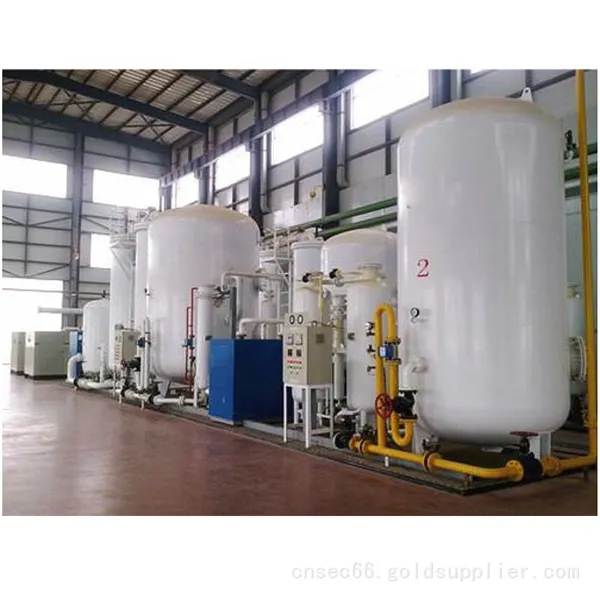

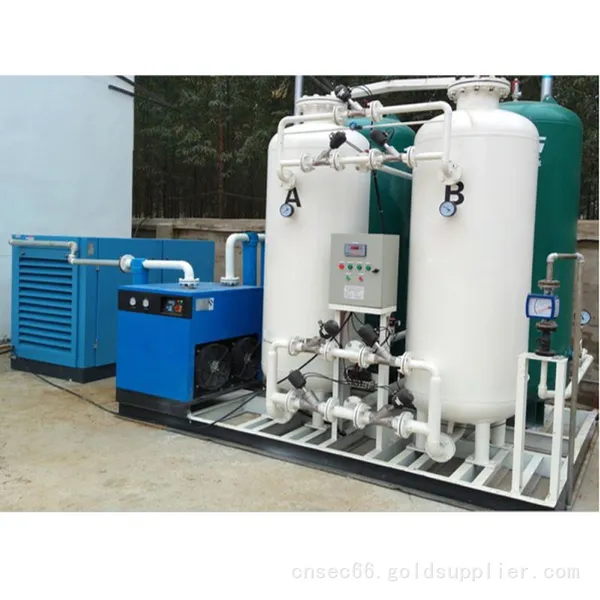

Pictures of PSA Nitrogen Generator


Eamil us for detailed quotation: may@segroup.ltd
