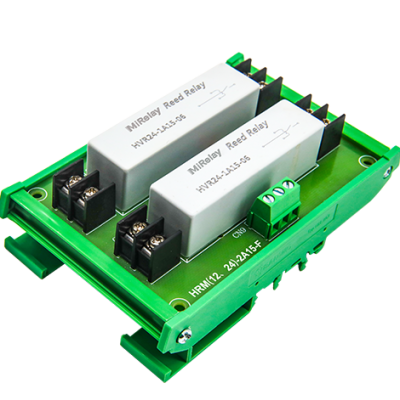

Mirelay Dry Reed Relays HRM Series
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Mirelay
Place of Origin:
China
Model Number:
HRM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mirelay High Voltage Direct Current Relays EVI SeriesNegotiableMOQ: 1 Piece -
Mirelay High Voltage Direct Current Relays EVM SeriesNegotiableMOQ: 1 Piece
-
Mirelay Dry Reed Relays SIP-HV SeriesNegotiableMOQ: 1 Piece
-
Mirelay Dry Reed Relays HVR SeriesNegotiableMOQ: 1 Piece
-
Dry Reed Relays SIP-1A05US$ 0.1 - 9.9MOQ: 1 Piece
Brand Name
Mirelay
Place of Origin
China
Model Number
HRM
Dry Reed Relays are highly suitable for applications with low stable contact resistance, low capacitance, high insulation resistance, long lifespan, and small size. For the special requirements of high-frequency switches, high-voltage switches, extremely low voltage and current switching, the use of Reed Relays can also achieve ideal results.
HRM24-2A15
| Contact form | 2A |
| Contact rating | 50W |
| Carry current (max) | 5.0A |
| Switching voltage (max) | 10000VDC |
| Contact resistance | 150 mΩ |
| Operate time (max) | 3.0ms |
| Release time (max) | 1.5ms |
Dielectric strength |
15000VDC |
HRM24-6A06
| Contact form | 6A |
| Contact rating | 100W |
| Carry current (max) | 2.5A |
| Switching voltage (max) | 1000VDC |
| Contact resistance | 300 mΩ |
| Operate time (max) | 1.0ms |
| Release time (max) | 0.1ms |
Dielectric strength |
6000VDC |
HRM12-12A04
| Contact form | 12A |
| Contact rating | 100W |
| Carry current (max) | 2.5A |
| Switching voltage (max) | 1000VDC |
| Contact resistance | 150 mΩ |
| Operate time (max) | 1.0ms |
| Release time (max) | 0.1ms |
Dielectric strength |
4000VDC |
HRM05-12A04
| Contact form | 12A |
| Contact rating | 100W |
| Carry current (max) | 2.5A |
| Switching voltage (max) | 1000VDC |
| Contact resistance | 150 mΩ |
| Operate time (max) | 1.0ms |
| Release time (max) | 0.1ms |
Dielectric strength |
4000VDC |
