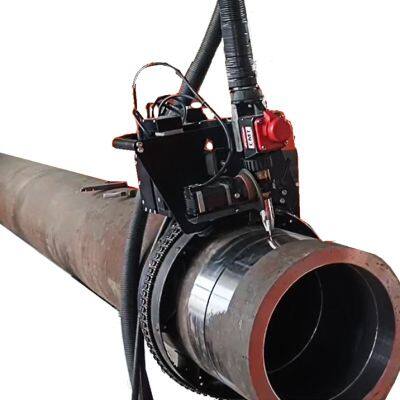

High Quality OD-Mounted pipe Cutting and Beveling Electric machine

Simple instruction:

The segmented pipeline cutting and beveling machine adopts a portable design and an open circular ring structure. It can be easily clamped and cut at any position of the pipe end or pipeline through disassembly and assembly. A total of 22 standard equipment are used for cutting and beveling various alloy pipe fittings such as carbon steel and stainless steel with an outer diameter of 4’’-62.’’' (102-1524mm), with a maximum processing pipe diameter of 1524mm and a maximum wall thickness of 120mm.

Product features and advantages:

1.Can process various grades of carbon steel, stainless steel, alloy steel pipes of various materials;

2.Can process U-shaped, V-shaped, double V-shaped, J-shaped, and composite bevels

3.Split structure, which can quickly install the external card to any position on the outer wall of the operating pipeline, taking up little space;

4.Hinged split fixed plate, can be installed at any position in the pipeline

The fixed plate is made of high-strength aviation aluminum, which is lightweight and strong;

5.The double guide rail design of the gear ring ensures even force distribution and stable operation;

6.Fully enclosed tool holder, single guide rail design, worm gear and trapezoidal thread screw transmission, stable and reliable;

Automatic return single point tool feeding, with infinitely adjustable feed amount;

7.Adopting ultra hard and wear-resistant cutting tools, with high efficiency and long service life;

8.Complete cold cutting method, no heat affected zone, and no change in pipe material;

9.Multi point and multi style clamping system: firmly fix the equipment on the pipeline;

10.Stepless variable speed feed system: low clearance operation, precise feed;

11.Low friction eccentric adjustment bearing system ensures equipment stability and extends equipment service life;

12.High strength adjustable support system, with no through holes or disconnections in the body, strong integrity, and uniform force distribution;

All event attachments are designed with user-friendly quick connect, making installation simple and efficient

13.Multiple functional accessories can be optional, including roundness compensation tool holder, drilling and milling accessories, outer circle cutting accessories, inner boring accessories, 3PE anti-corrosion layer removal accessories, bridge tool holder accessories, narrow gap installation accessories, reverse installation kit, high-speed groove positioning accessories, automatic centering and tensioning kit, etc.

14.Optional motor drive methods include electric, pneumatic, CNC, hydraulic, etc.
