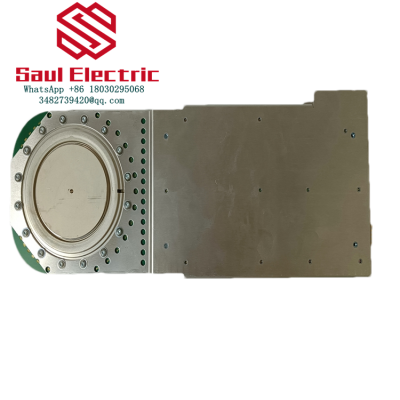

5SHY35L4512 3BHE014105R0001/5SXE08-0166 Asymmetric Thyristor IGCT

5SHY35L4512 3BHE014105R0001/5SXE08-0166 Asymmetric Thyristor IGCT

5SHY35L4512 3BHE014105R0001/5SXE08-0166

The working principle of IGCT is based on GTO technology, but by using hard drive technology and integrated gate drive circuit and anti-parallel diode, the absorption circuit is omitted, so that both the GTO on-loss is low and the IGBT turn-off is uniform. This design makes IGCT have a wide application space in the field of medium voltage and high power. In addition, the IGCT turn-off time is 30% lower than the GTO, the power consumption is 40% lower, and the absorption circuit is not required, it can be switched on like a thyristor, and shut off like an IGBT, with very low power loss

5SHY35L4512 3BHE014105R0001/5SXE08-0166

Comparison of IGCT and IGBT

● Chip structure and manufacturing process

● Working principle and packaging form

● Comparison of operating frequency, turn-off ability, etc

IGCT application areas

High voltage and large capacity modular multilevel converter (MMC)

● Medium and high voltage high power converter

● On-site localization application

IGCT technical characteristics

● Dynamic loss is reduced by about 50%

● Low on-state voltage drop, high blocking voltage

● Integrated continuous current diode to achieve stable switching characteristics of thyristors

IGCT design and optimization

● Crimping technology research, balance parameter matching design

● Power module re-optimization design research

● IGCT clamping and protection technology

IGCT testing and validation

● High pressure test bench development

● IGCT high voltage power module design

● Status detection and logic control function verification
