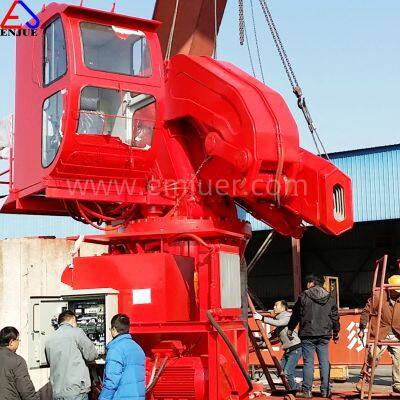

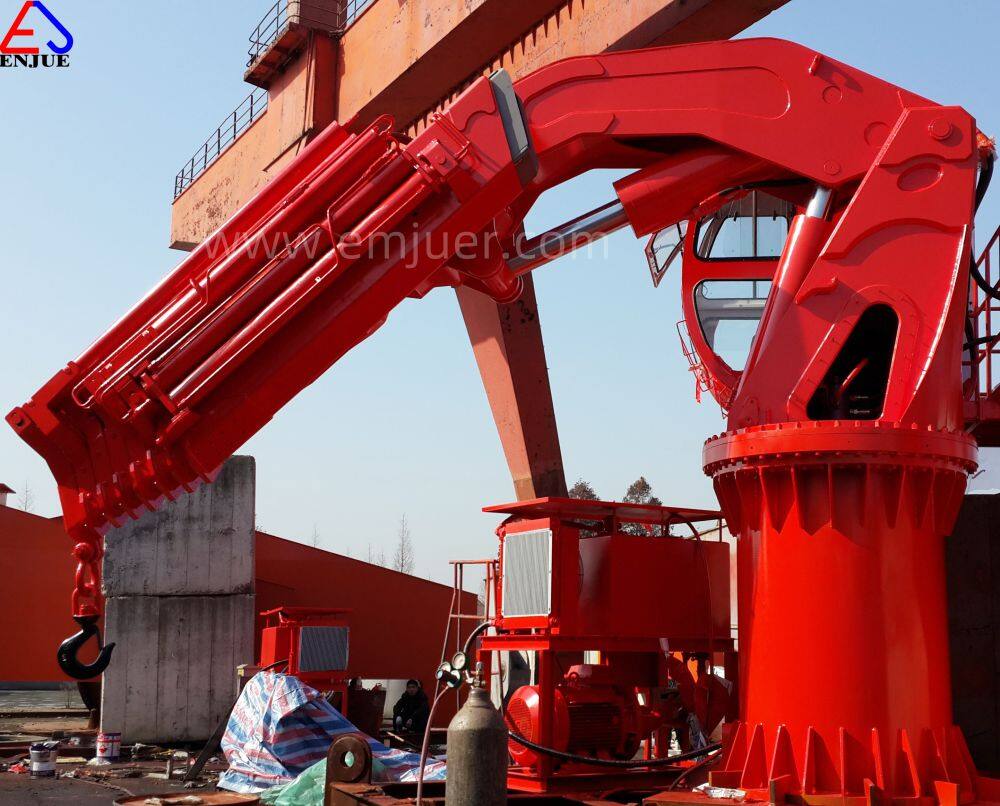

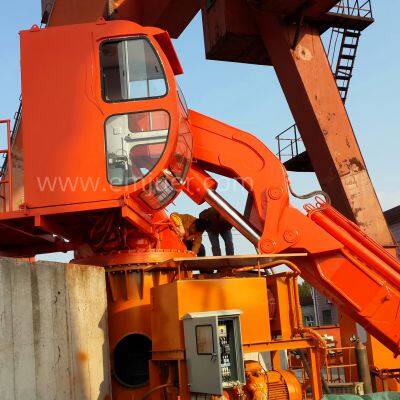

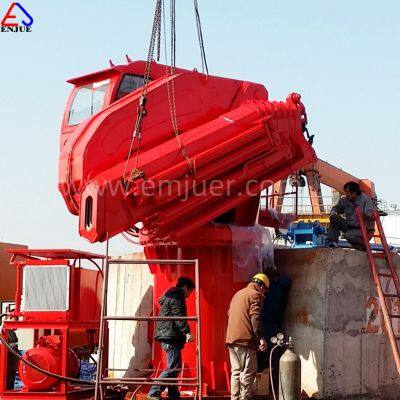

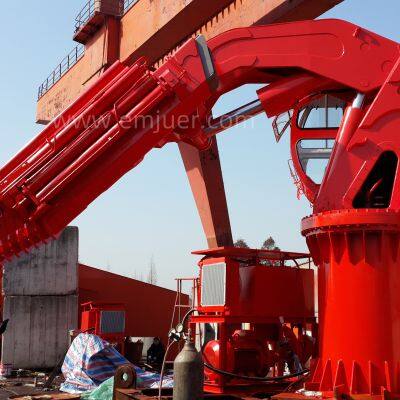

The5t20m telescopic knuckle boom crane is a versatile lifting machine equipped with telescoping and folding capabilities. Its boom structure, consisting of multiple sections, is capable of extending and retracting as per operational requirements, accommodating diverse lifting demands across varying heights, distances, and angles. Boasting a compact yet ingenious design, this crane excels in executing efficient lifting tasks within confined spaces.
Featrues:
1. High brightness
2. Durability
3. High Flexibility with Full Rotation Capability
4.Efficiency in Rapid Lifting and Handling
5.Safe and Reliable Operation
6.Versatile Application Range
8. Safety performance
Operational principle
The operational principle of the telescopic knuckle boom crane revolves around the synergetic interplay of its key components: the boom, hoisting mechanism, slewing unit, and electrical system. The boom, capable of telescoping and folding as dictated by job requirements, adapts seamlessly to diverse operational environments and spatial constraints. The hoisting mechanism, utilizing load-bearing elements such as steel wire ropes, efficiently handles the lifting, loading, unloading, and transportation of objects. The slewing unit endows the crane with 360-degree rotation capability, enabling precise adjustment of the lifted object's direction and position. Lastly, the electrical system serves as the central control hub, orchestrating all movements and operations of the crane to ensure precision and safety throughout the work process.
Key Technical Specifications
Safe Working Load (SWL): 2 tons
Lifting Height: Depending on the specific model and design, it can typically reach a considerable height, such as 25 meters or more.
Lifting Speed: Adjustable within the range of 0-10 meters per minute, ensuring versatility for various lifting tasks.
Slewing Speed: At 0.8 revolutions per minute, it offers smooth and agile rotation capabilities.
Slewing Angle: Generally capable of 360° rotation, with some models potentially limited to 300° for specific applications.
Luffing Time: For instance, within 50 seconds from 0° to 60°, facilitating rapid adjustment of the working radius.
Working Radius: Adjustable between 1.5 and 8 meters, enabling flexibility according to operational needs through telescoping capabilities.
Motor Specification: Utilizing models like Y132M-4-H, featuring a power output of 7.5 kW, a rotational speed of 1480 rpm, and operating on a 380V50Hz electrical system.
If you are interested in this crane, please provide more details with me,such as:
1. Crane SWL requested(__T__M).
2. Max. working radius and Min. working radius of the crane, lift weight at max work radius.
3. The crane will be used on ship, offshore plant form or fixed plant form (motor 380V or 440V)
4. If you have any other special request for the crane, please advise us
Please never hesitate contact with me! Your reliable partner!
