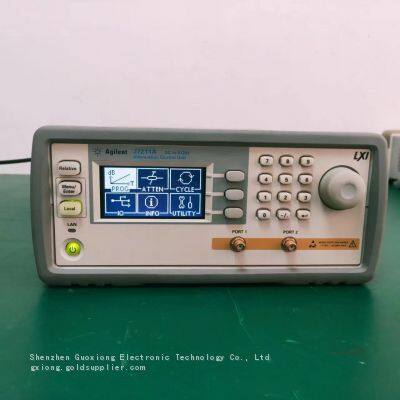

Help CenterJ7211A Attenuation Control Unit, 6 GHz, 121 DB, 1 dB Step
Related Products
-
4921 Aeroflex RF Shield ChamberCNY 7800 - 7800MOQ: 1 Box -
TC-5915A Tescom Shield BoxUS$ 7800 - 7800MOQ: 1 Box
-
Hioki 3275 500 Amp AC/DC Clamp On CT 2MHzCNY 18000 - 18000MOQ: 1 Case
-
Keysight 16089B Medium Kelvin Clip LeadCNY 5000 - 5000MOQ: 1 Case
-
KEYSIGHT 16334A Tweezers Contacts Test FixtureCNY 3800 - 3800MOQ: 1 Box
Attenuator Control Capability
Attenuation sweep function – define the sweep time, number of cycles and step size for your application
Relative attenuation step function - set attenuation relative to any value
Attenuation steps - 0 dB to 121 dB, 121 dB to 0 dB, or back and forth for the preset number of cycles (1 to 1000)
User selectable sweep time - 50 ms to 10 s; 50 ms incremental
Specifications
0.03 dB insertion loss repeatability per section for the entire 5 million cycles
Excellent attenuation accuracy and flatness
Remote Control and Programming
LXI Class C compliant for easy remote integration
An integrated attenuation solution for wireless communication
J7211A attenuation control units provide an integrated solution for R&D and manufacturing engineers in wireless communication, aerospace and defense and electronic component industries. Operating from DC to 6 GHz, the J7211A provides attenuation up to 121 dB with a 1 dB step size. A unique attenuation sweep function lets you select the start/stop attenuation, step size, dwell time, and number of cycles for your application. J7211A offers exceptional
Designed in a compact half-rack, 2 unit high-form factor, the Keysight J7211A ensures ease-of-use in benchtop applications and greater efficiency and throughput in ATE testing. GPIB, USB and LAN connectivity (LXI Class C Compliant) allow easy remote control and triggering.
Typical applications
J7211A attenuation control unit's attenuation sweep function makes it ideal for designing, validating and manufacturing WiMAX™ and WLAN components and for mobile handset base transceiver station (BTS) handover test.
Send Inquiry to This Supplier
