Home > Products > SMD bobbins > SMD EFD15 high-frequency transformer accessory. EFD15 Transformer Bobbin, EFD15 Transformer Core, EFD15 Transformer Clamp. Dongguan provides one-stop production services. Affordable prices.
SMD EFD15 high-frequency transformer accessory. EFD15 Transformer Bobbin, EFD15 Transformer Core, EFD15 Transformer Clamp. Dongguan provides one-stop production services. Affordable prices.
- SHENG ZHEN
- T/T L/C
- 7 days
You May Like
-
SMD EFD20 high-frequency transformer accessory. EFD20 Transformer Bobbin, EFD20 Transformer Core, EFD20 Transformer Clamp. Dongguan provides one-stop production services. Affordable prices.
-
Power adapter spring clip, adapter conductive spring clip, charger conductive spring clip terminal. Customization can be produced according to customer design specifications.
-
EI16EI19 audio transformer, EI16 audio isolation transformer, EI low-frequency transformer EI14-EI16-EI19, can be customized and shipped according to customer design parameters.
-
EI16 audio isolation transformer,EI16EI19 audio transformer, EI low-frequency transformer EI14-EI16-EI19, can be customized and shipped according to customer design parameters.
-
Tin plated copper terminals, connector joint terminals, and cold junction terminals for electronic components. You can choose copper or brass material, and customize the mold according to the customer's design size.
-
Chokes, current transformers, high-frequency transformers, power filters, and specialized transformers can be designed according to customer requirements. Fully meet the customer's circuit requirements.
Product Details
| Brand Name | LC | Place of Origin | China | |
| Model Number | SMD EFD15 high-frequency transformer accessory | Material | Other | |
| Usage | Other, transformer | Standard or Nonstandard | Other | |
| Structure | Other |
Product Description

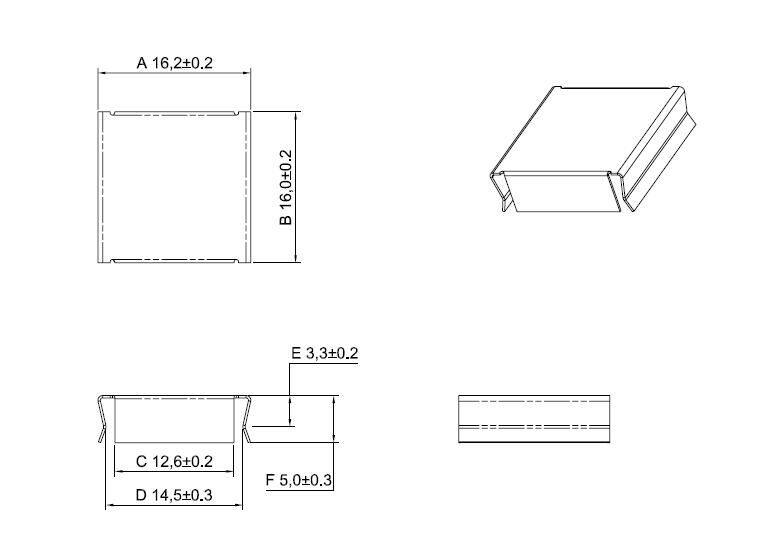

EFD15-1 Cover

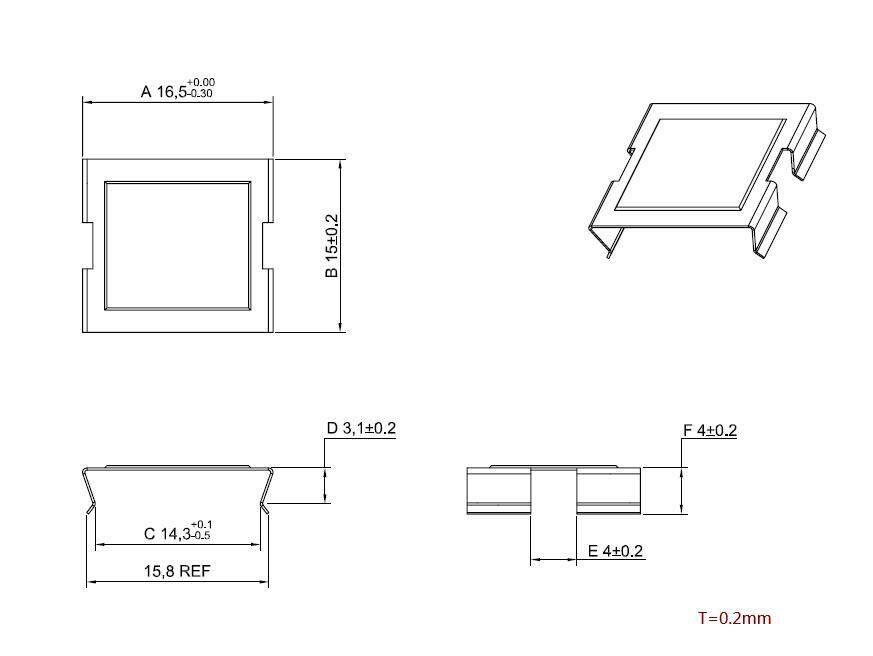

EFD15 COVER

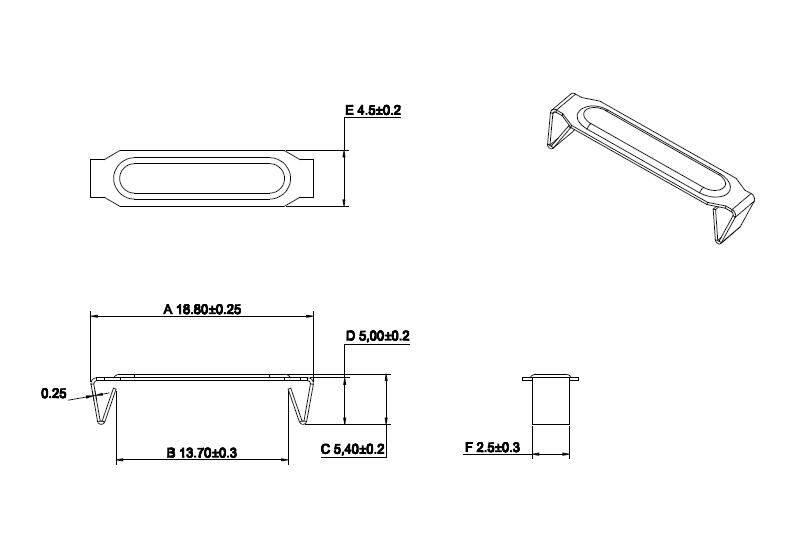

EFD15 Side Clips

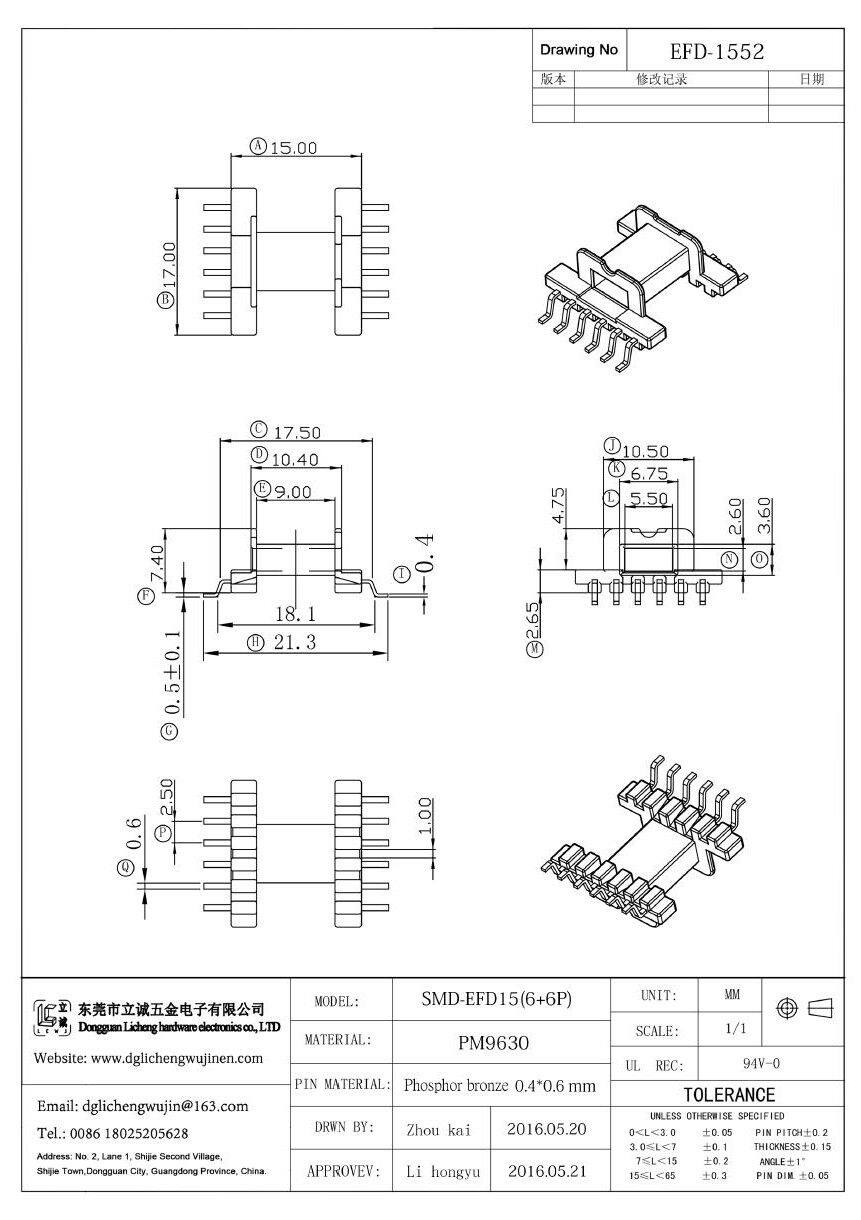

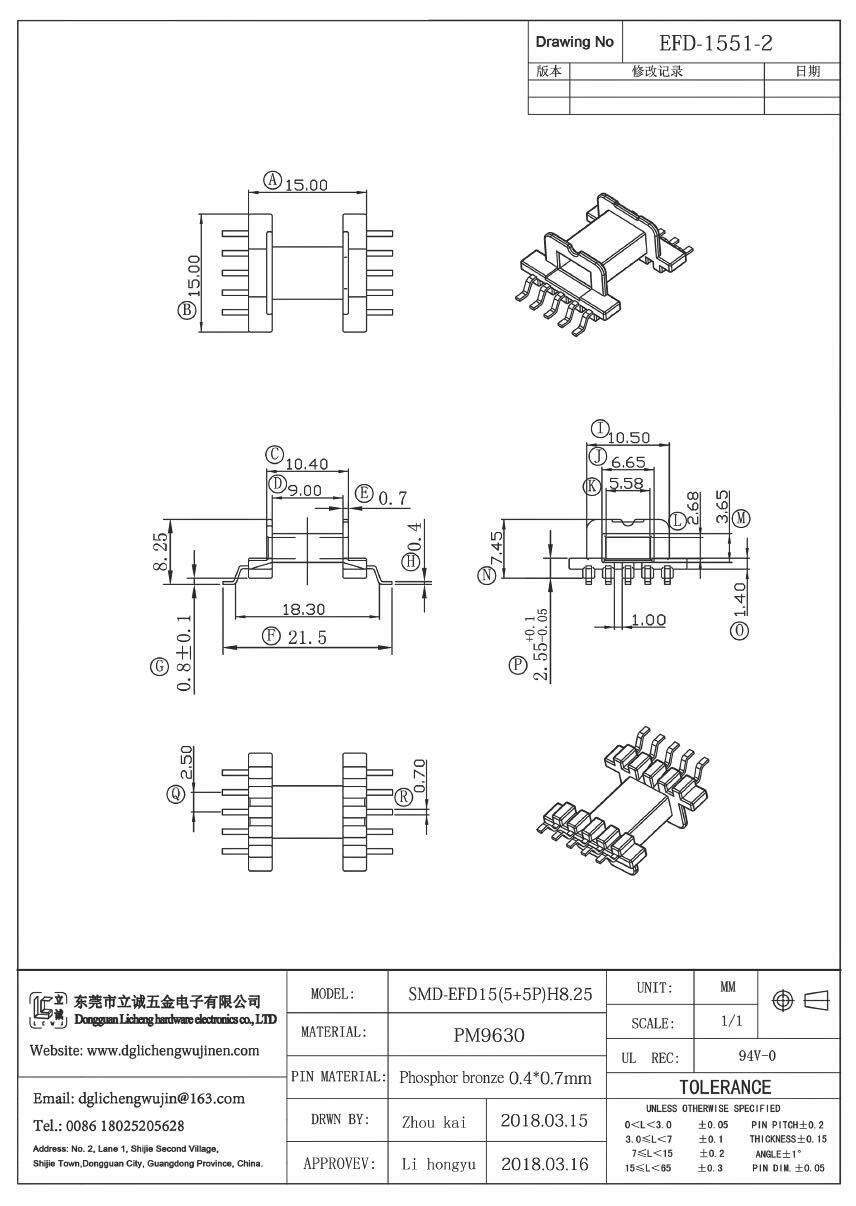

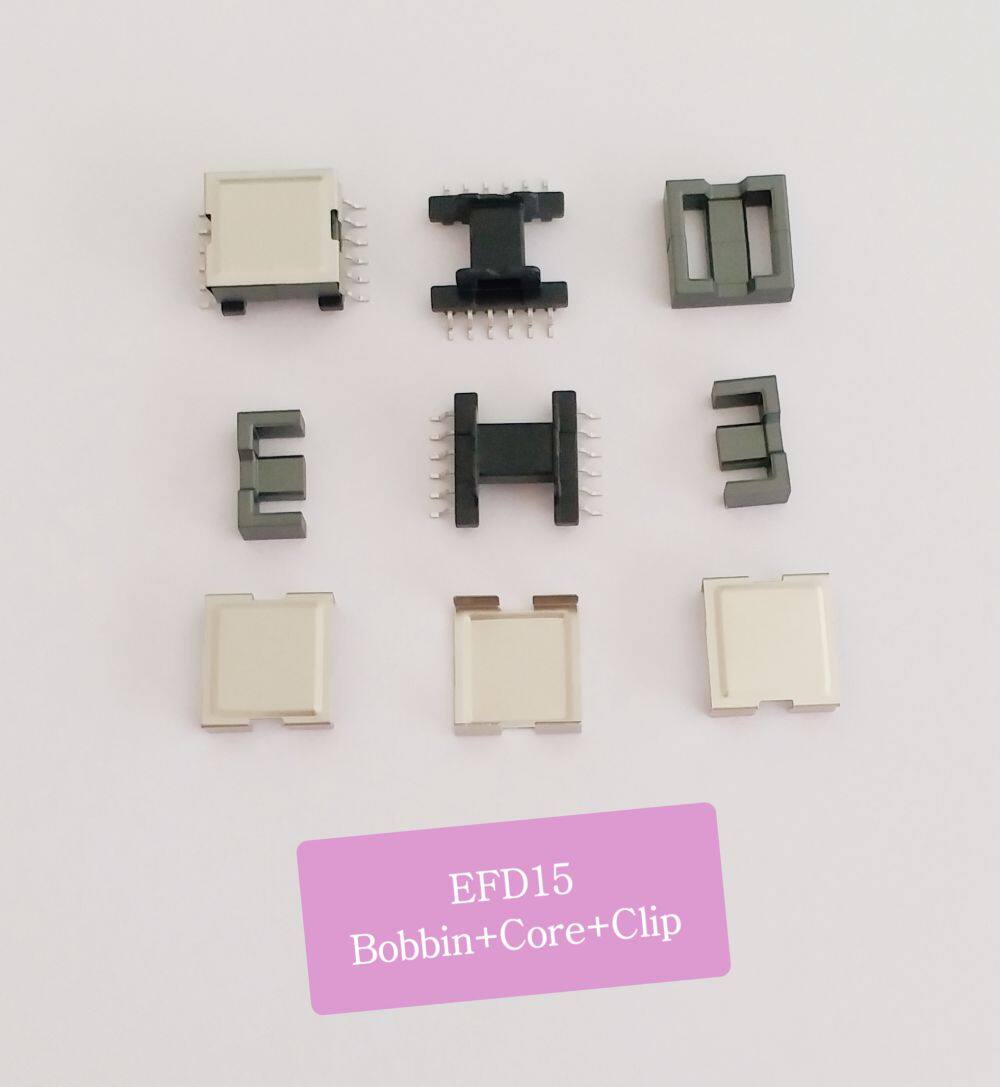

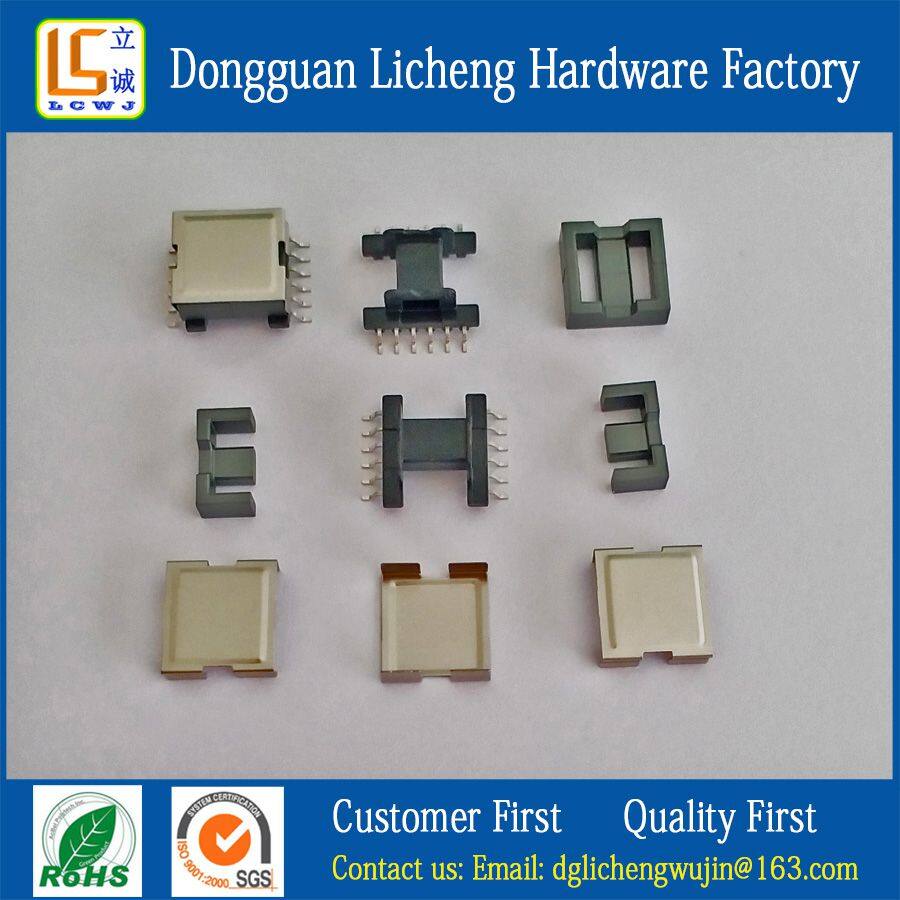

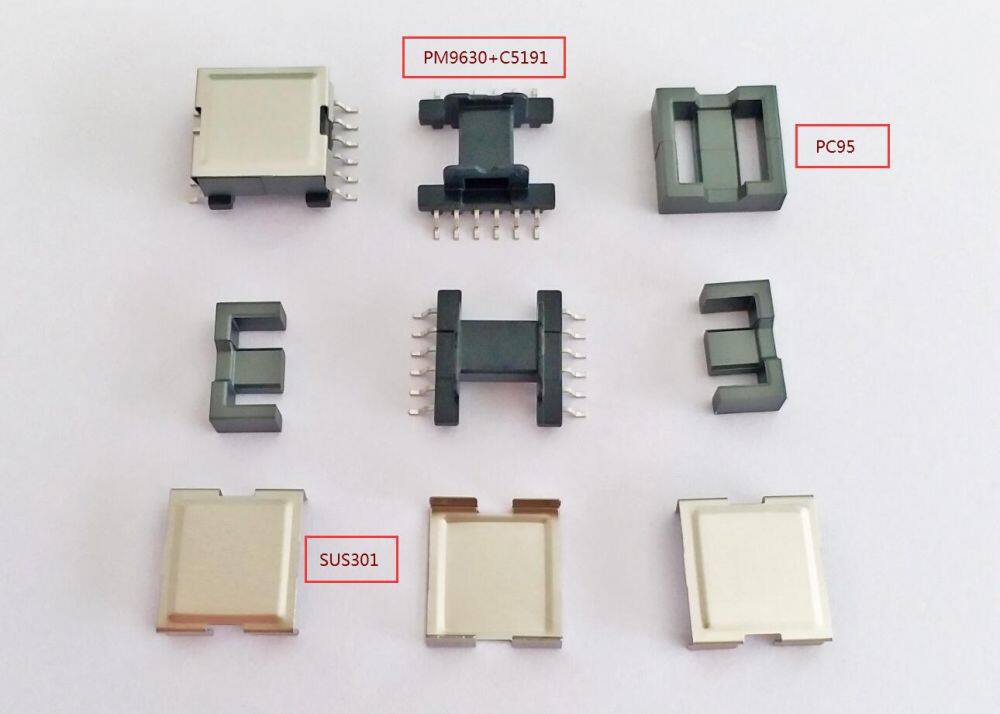

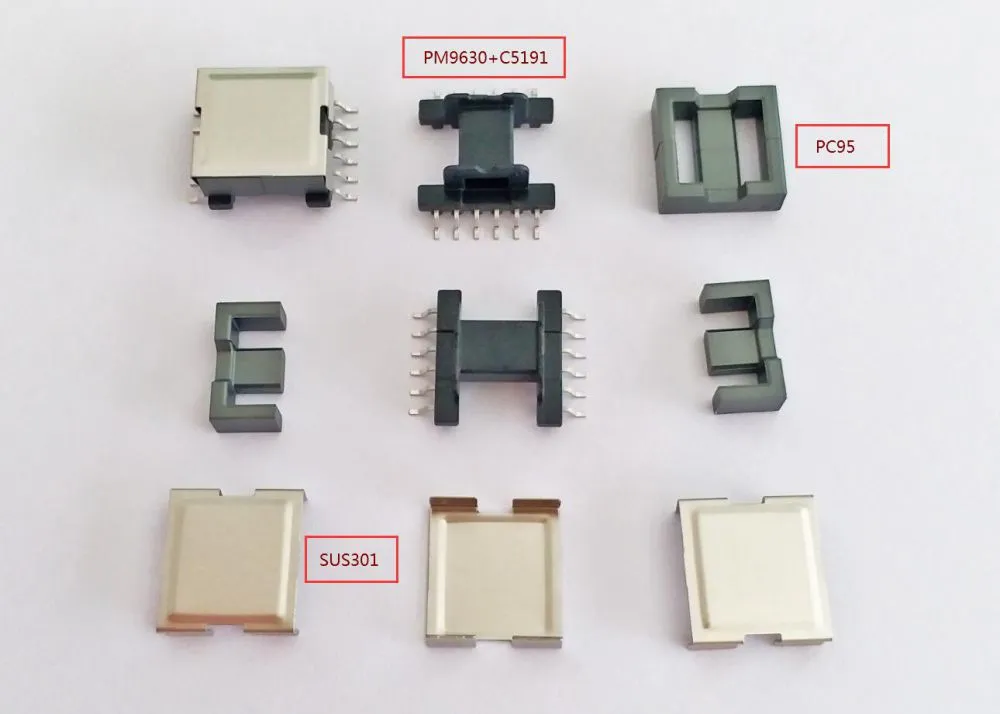

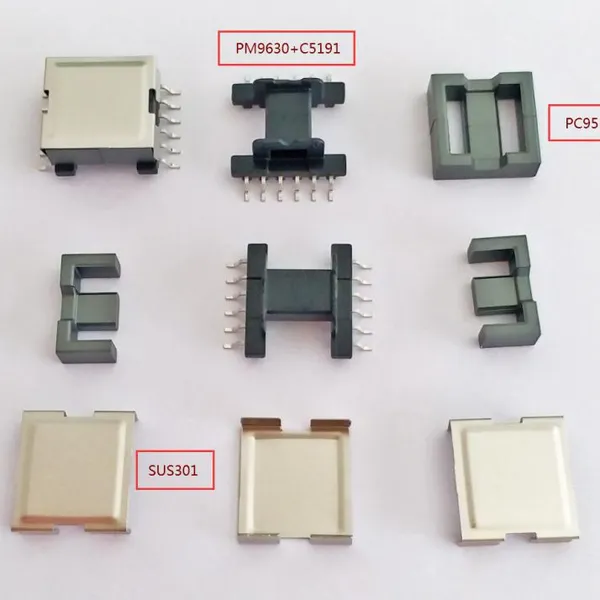

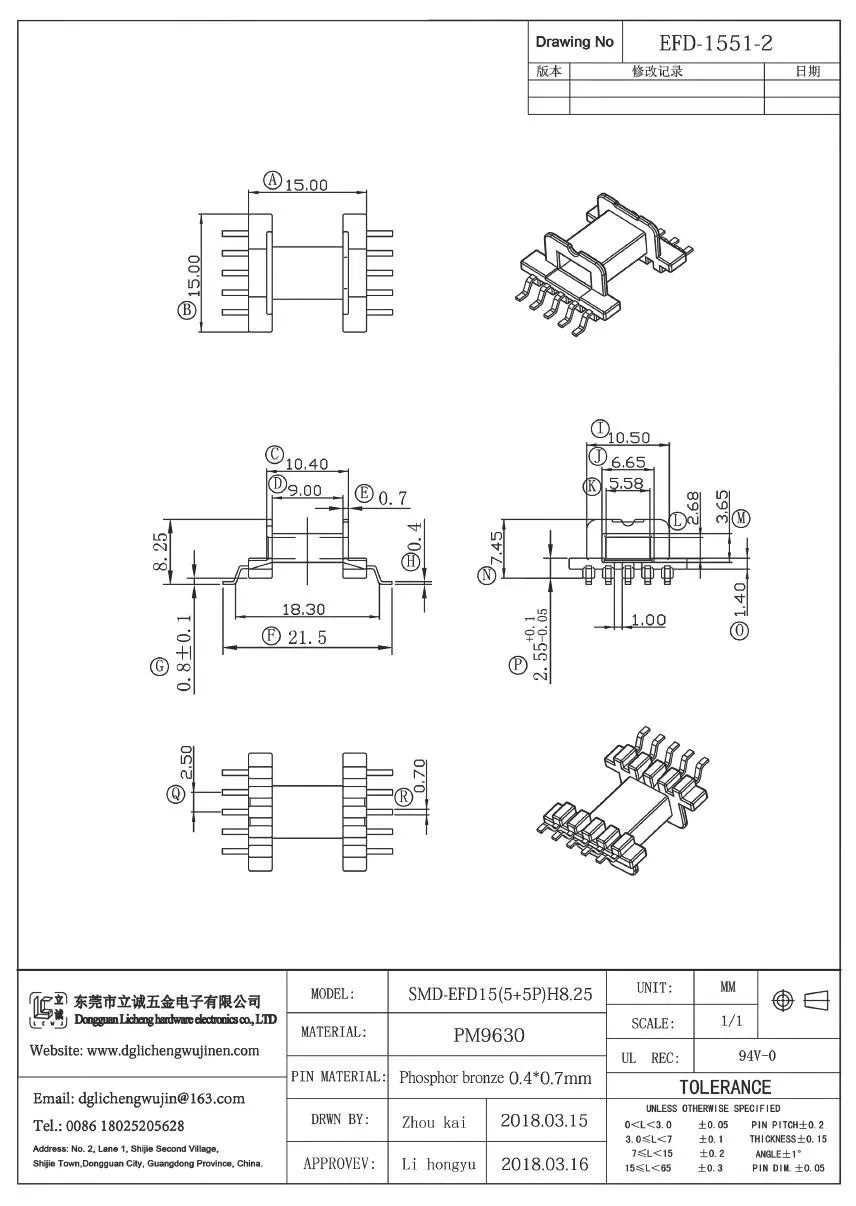

SMD EFD15 Core and Bobbin with Clamps. EFD15 high-frequency transformer matching materials. Dongguan provides one-stop production services. Beautiful price!
Material selection:
Clamp: T0.2 SUS301 stainless steel, surface cleaning.

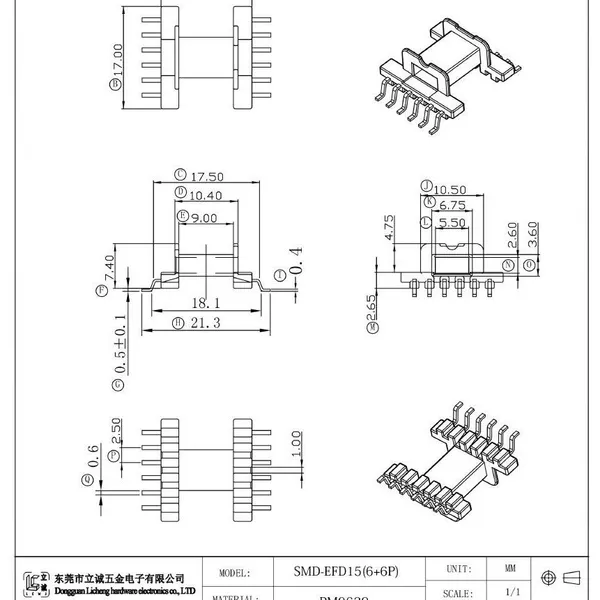

BOBBINS: PM9630+C5191

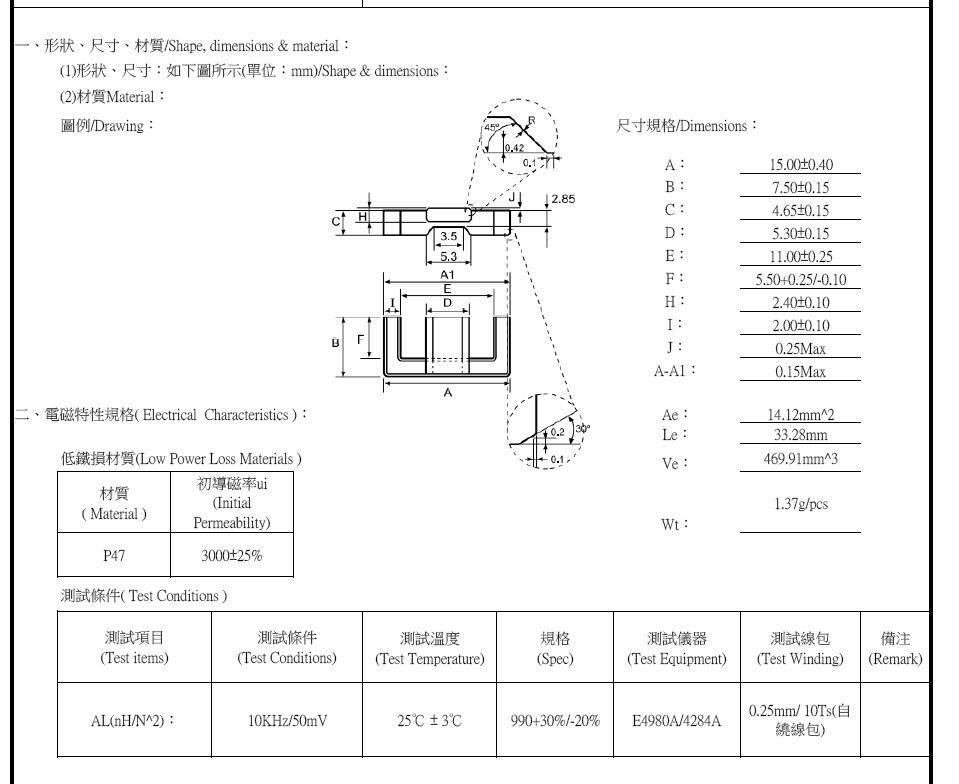

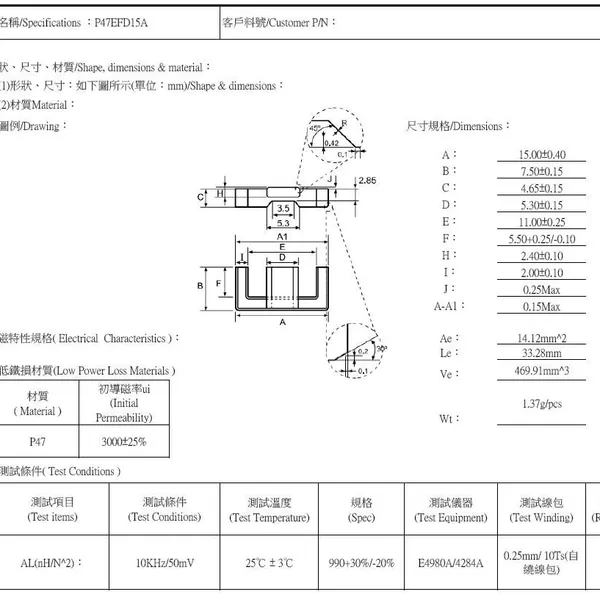

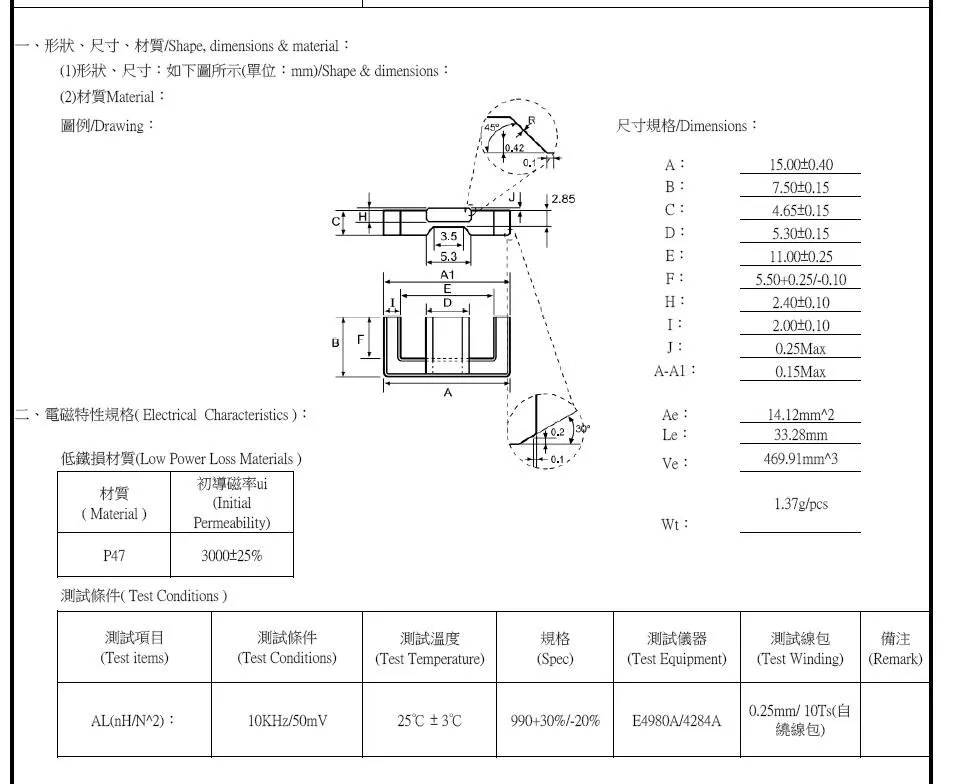

Core: PC95, AL=3000nh/N2
Common classification of transformer ：
RM Series (RM4, 5, 6, 7, 8, RM10, 12, 14)
ER Series (ER9.5, 11.5, 13.6, 14.5)
EF Series (EF20, 12.6, 16, 19, 25, 30)
EPC Series (EPC10, EPC13, EPC17, EPC19, EPC25, EPC30)
EE Series (EE5.0, EE5-1, EE5-2, EE5-3, EE5-4)
EFD series (EFD10-1 , EFD12-1 , EFD15, EFD15-1, EFD17,EFD20, ETD20-1, EFD25, EFD30)
EFD double-button (EFD15 double-button, EFD20 double-button, EFD25 double-button, EFD30 double-button)
ETD Series (ETD29, 34, 39, 44, ETD49, 54, 59)
EP Series (EP7 Button, EP7-1, EP13, EP17, EP20)
PQ series (PQ2020, PQ4040, PQ5050, PQ34)
FK series (FK-ETD29,FK-ETD34, FK-ETD39, FK-ETD44, FK-ETD49, FK-ETD54)

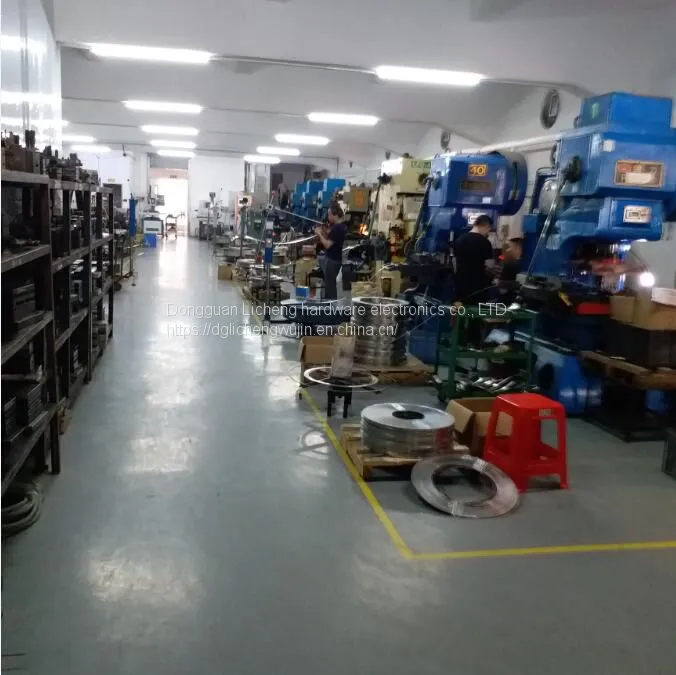

Dongguan Licheng Hardware and Electronics Co., Ltd. was founded in 2010, the company is located in the beautiful Dongjiang River, with the name of China's famous electronic town - Shijie Town, Dongguan City.
The company specializes in the production of metal stamping parts, electrical hardware spare parts, transformer clamps, electronic connector terminals, precision die manufacturing and other main business. Its products are widely used in modern communication equipment, digital technology, electronic transformers and household appliances. The company has first-class quality concept, super-strong mold research and development team, efficient and sophisticated equipment and production team, closely following the forefront of electronic and electrical development.
