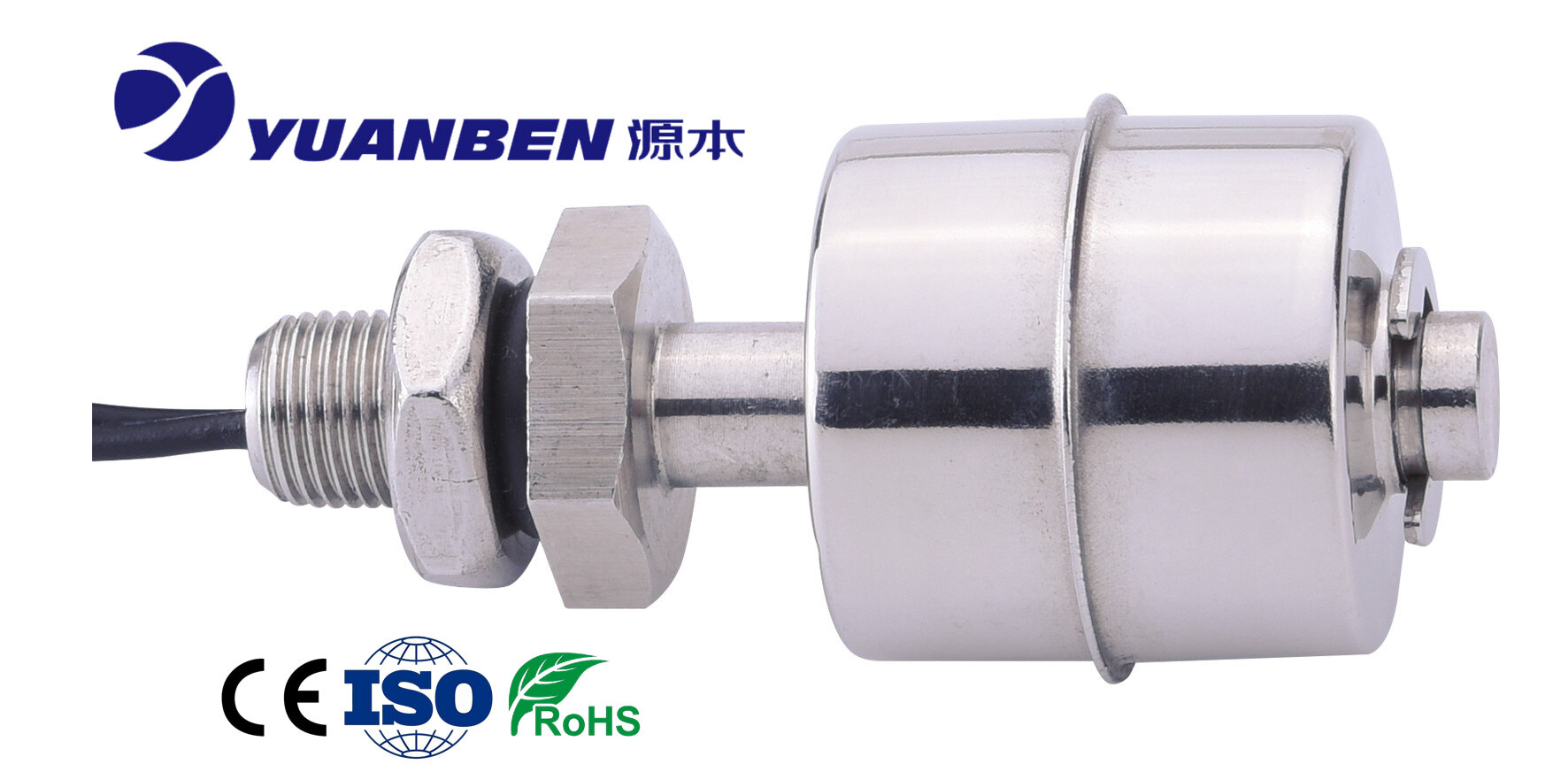

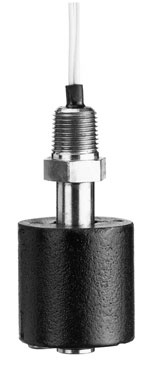

Help CenterMagnetic Float Level Switch
Related Products
-
Magnetic Temperature SensorUS$ 5 - 24MOQ: 10 Pieces -
Magnetic Level ControllerUS$ 1.5 - 3MOQ: 20 Pieces
-
SS Vertical Mount Magnetic Level Controller Float Type Level SwitchNegotiableMOQ: 25 Pieces
-
Magnetic Float Level SwitchUS$ 9 - 22MOQ: 1 Piece
-
Magnetic Flap Level Gauge for Boiler Water Fuel Liquid Level MeasurementNegotiableMOQ: 100 Pieces
Applications
The float level switch is used for monitoring and measuring of various liquids such as water,oil,diesel.Available with various choices of mountings,3A and 5A level switches can be provided. In addition, the switch integrated with level and temperature control is also available upon request.
Technical Parameters
Mounting options:Top mount,Bottom Mount and side Mount
Connection size:1/8”,NPT,1/4”,NPT,1/2”NPT
Rod material: SUS304 or 316L
Float material: SUS316
Accuarcy:±3mm in water
Operation Voltage:250Vac,200Vdc
Contact Power: 70VA,30VA
Switch Connections: N.O./N.C.
Operation life: 1million times
Control point:1~5 points.
Vessel pressure:1.8Mpa
Media Temperature:-40~150℃
Liquid Specific Gravity:0.55~1.0
Mounting orientation: vertical ±20°
IP rating: IP55
Mounting Options: Top Mount
Connection size: 1/8” NPT, 1/4” NPT
Rod material: SUS 304 or 316
Float Material: SUS316
Operation Voltage: 24 Vdc
Operation life: 1 million times
Control Point: continous
Vessel pressure: 1.8 Mpa
Media Temperature：-40~150℃
Liquid Specific Gravity: 0.55~1.0
Mounting orientation:vertical ±20°
Output Signal: DC 4~20mA or -5V
Continuous Resolution:10mm.
IP Rating: IP55/IP65
Note: Measuring length and lead wire length can be customized according to customer needs.The switch connection can be easily switched between N.O. and N.C. by turning the float upside down.
Yuanben designs,manufactures and supplies industrial sensors for a wide range of application worldwide. Over the years,our portfolio range of magnetic sensors and expertise in offering custom sensing solutions has significantly expanded. As a specialist sensor manufacturer,we pride ourselves in our knowledge of sensing technology for developing custom solutions for your industrial applications. We strive for constant improvement in the field of sensor engineering,allowing our experienced team to provide our customers with high quality sensors.
