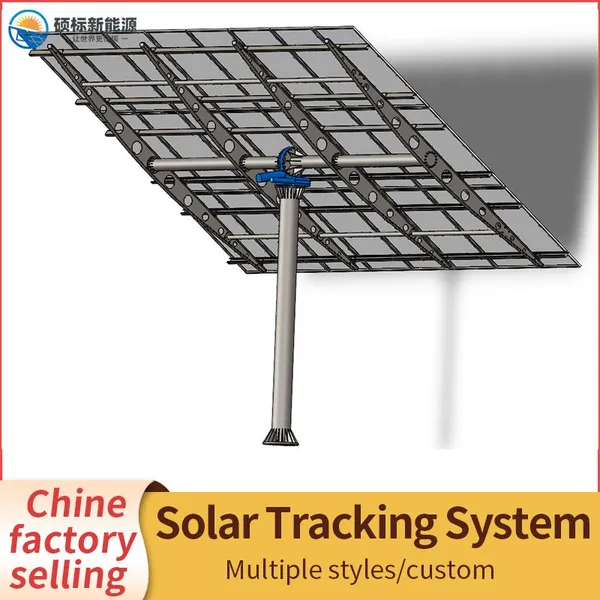

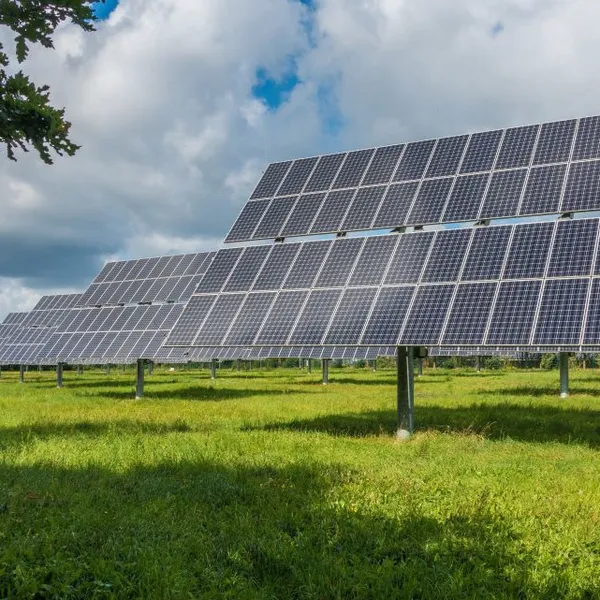

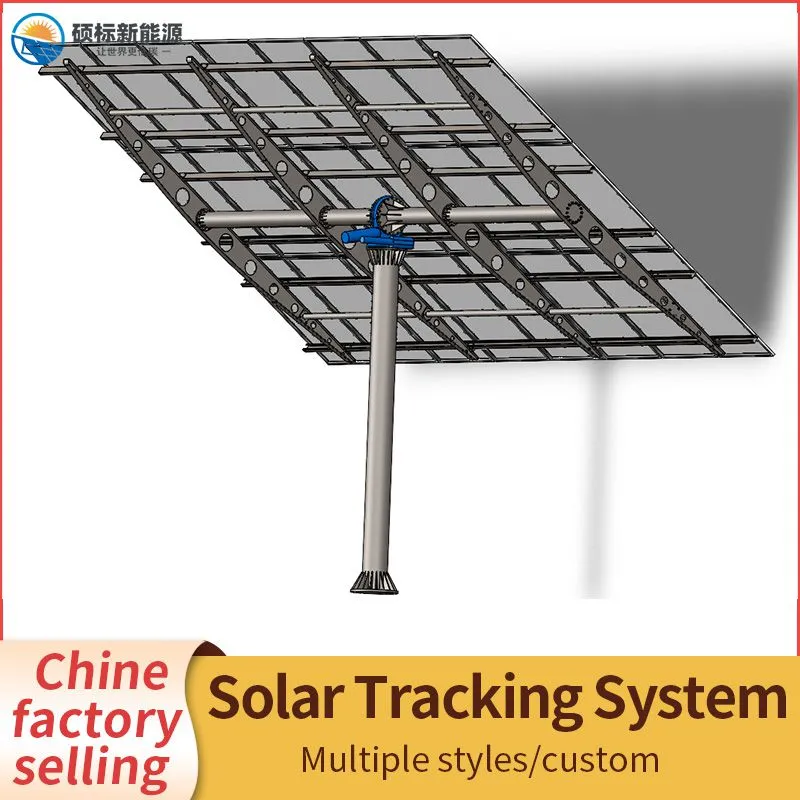

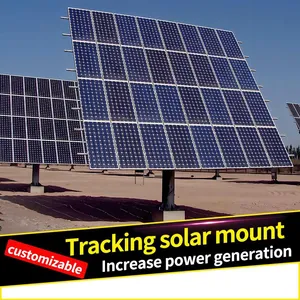

The bidirectional tracking solar bracket (that is, the two-axis tracking bracket) is an important part of the solar photovoltaic power station, which tracks the trajectory of the sun through the rotation of two axes, so as to ensure that the solar panel can always face the sun to maximize the capture of solar energy. The components of the bidirectional tracking solar bracket mainly include the following aspects:
1. Support body
The main structure of the bidirectional tracking solar bracket is usually designed to be able to rotate around both horizontal and vertical axes at the same time to achieve a tracking system where the photovoltaic module plane is always perpendicular to the sunlight.
Function: Fix the photovoltaic panel and ensure that the panel maintains the best Angle and position during normal use to receive the maximum amount of sunlight.
Classification: Although collectively referred to as the dual-axis tracking bracket, according to the specific design may be divided into flat dual-axis tracking system, concentrating dual-axis tracking system, etc.
2. Drive system
Core components: including motor, reducer, drive and controller, etc.
Function: The drive system is responsible for providing power so that the body of the bracket can follow the trajectory of the sun. The motor is the core of the drive system, usually driven by AC or direct current to meet different design requirements and operating conditions. The reducer is used to reduce the motor speed and change the power, and the driver is responsible for transferring the rotating force to the main body of the support.
Control: The controller is responsible for receiving and processing data from other systems, such as sun position information, and sending instructions to the drive system to adjust the Angle and position of the bracket.
3. Foundation support system
Composition: including fixed column, foundation concrete, etc.
Function: Ensure that the two-way tracking solar bracket can be firmly installed on the ground and withstand the test of external factors such as natural disasters. The fixed column is the main supporting part of the main body of the support, usually made of reinforced concrete, steel or other hard metal materials to ensure that it is strong and durable. The foundation concrete is used to caulk the soil area around the fixed posts, providing additional stability and protection.
4. Other auxiliary components
Sensor: Used to monitor the sun position, wind speed, wind direction and other environmental parameters, in order to timely adjust the Angle and position of the support.
Safety devices: such as wind and snow protection devices to improve the safety performance of the power station.
Monitoring system: The network monitoring function is realized, and the data is transmitted to the console or corresponding equipment of the monitoring center, which is convenient for remote monitoring and management.
