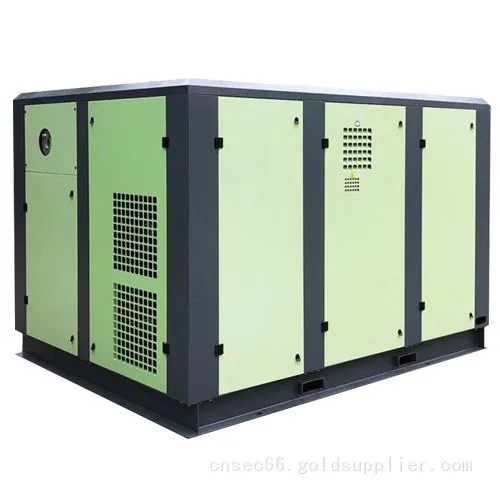

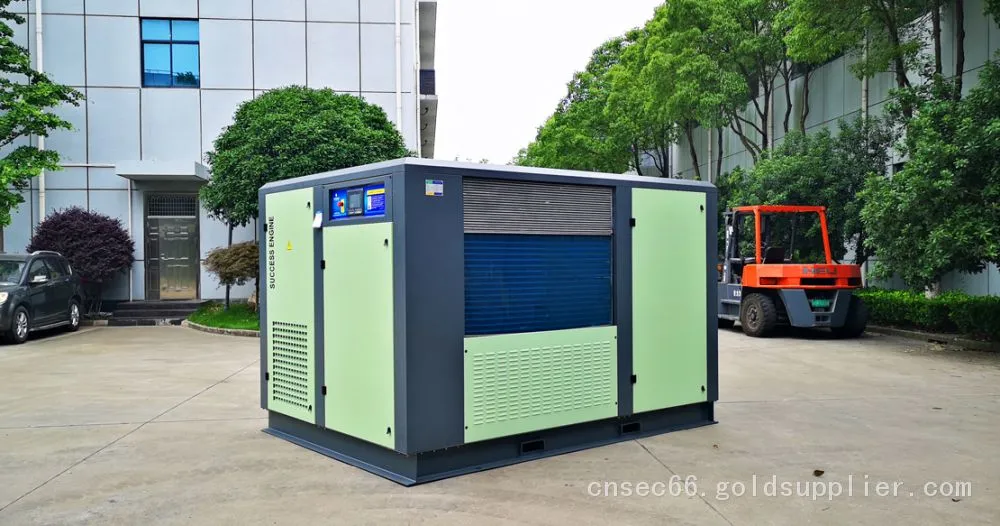

Dry Type Oil Free Air Compressor

SUCCESS ENGINE

Dry Oil-free Compressor (blower)

Dry type oil-free compressors (working pressure: 1.5 ~ 10 bar) are used in special processing fields, such as electric power, metallurgy, electronics, aviation, chemical, papermaking, Pharmaceutical, food, bottle blowing and cap making.

Dry type oil-free air blowers (working pressure: 0.4 ~ 1.5 kPa) are used in sewage treatment, oxidation desulfurization, pneumatic conveying and other fields. In the field of aeration, the pressure can be automatically adjusted according to the change of water depth, and due to the wide range of working pressure adjustment, strong dust resistance, high efficiency and stability performance. It has become the most economical blower for the transformation of roots blowers.

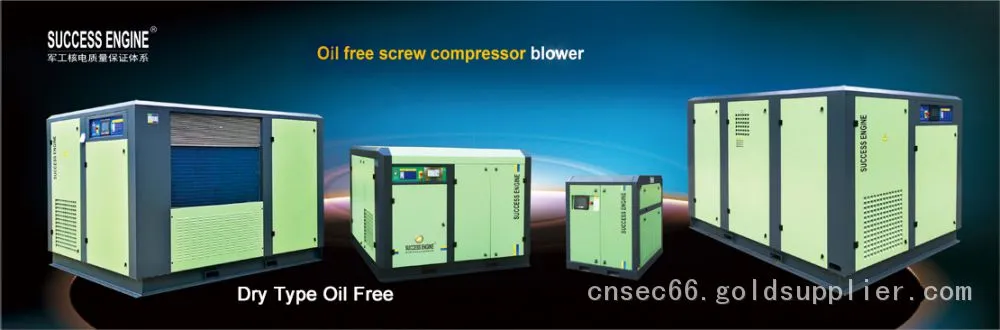

Oil-free Screw Compressor & Air Blower

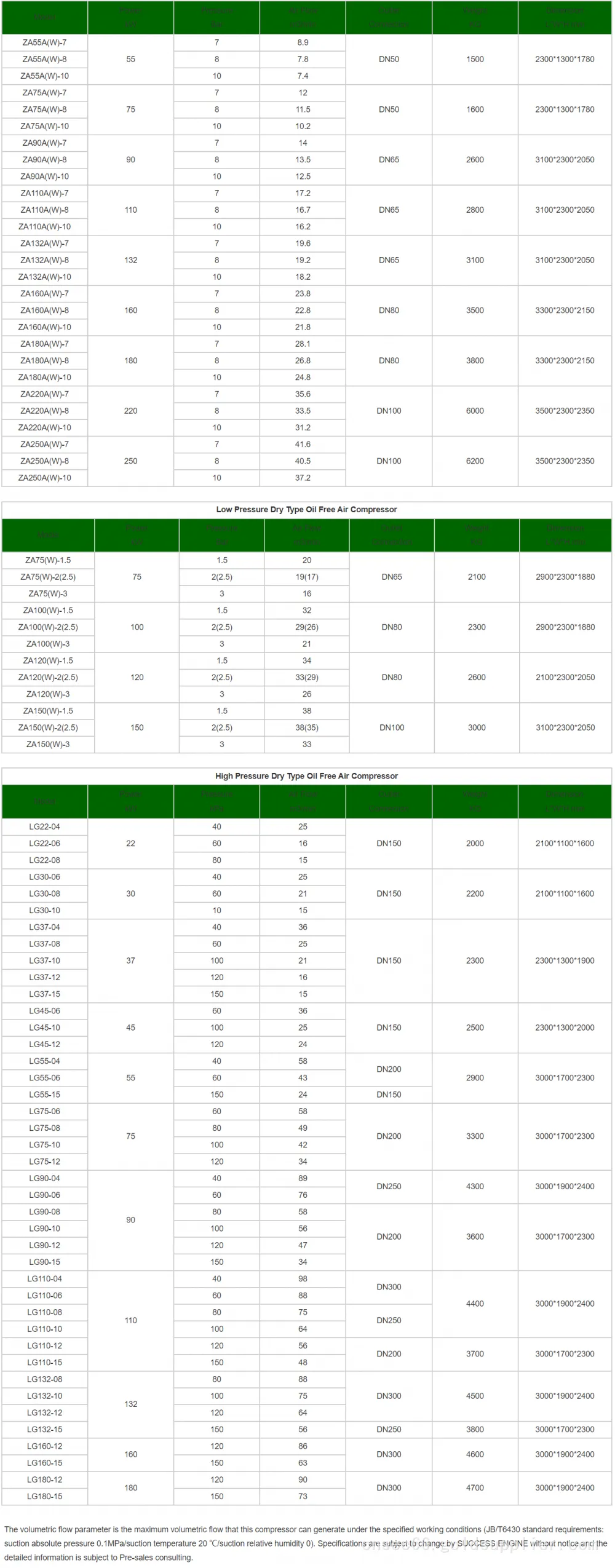

F.A.D: 3.0~60 m3/min working pressure: 5~30 bar.

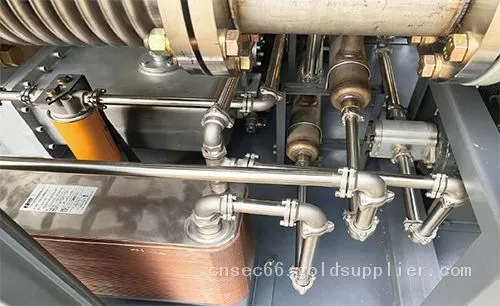

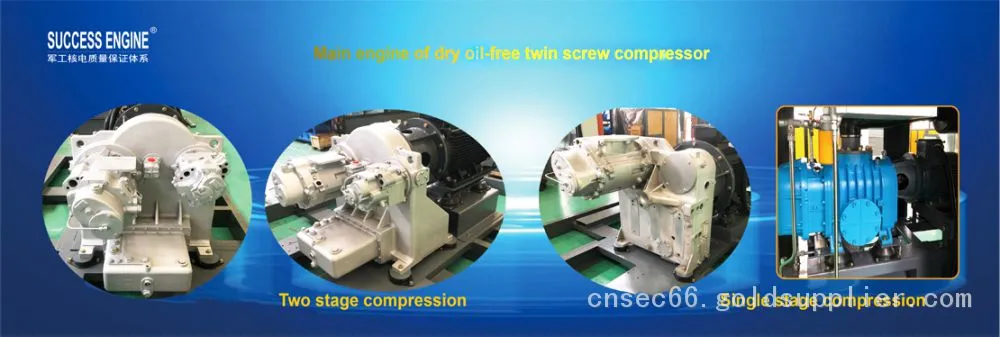

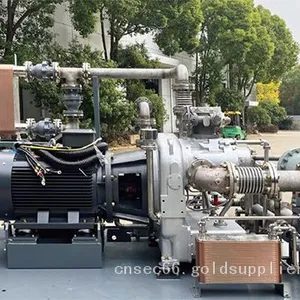

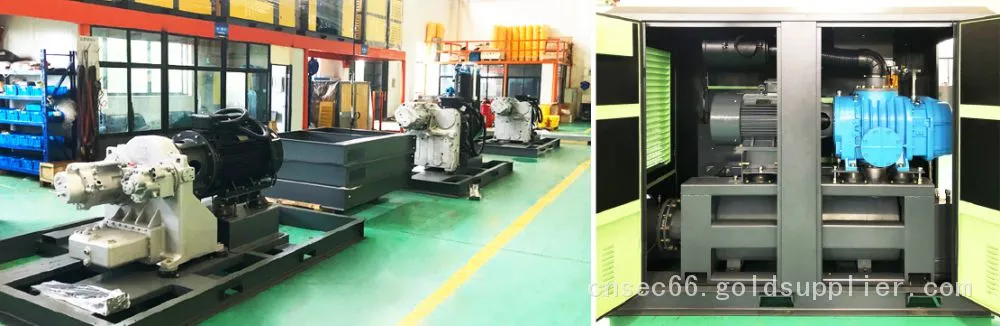

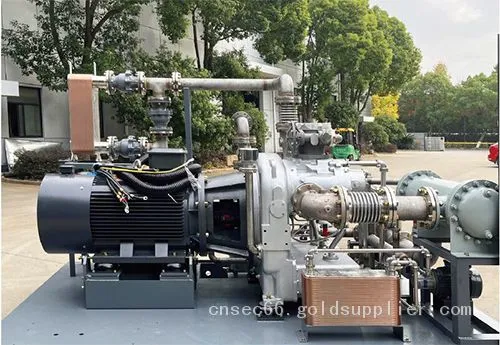

SUCCESS ENGINE oil-free screw compressor and air blower adopts dry type single-stage or double-stage compression, and the main airend is rotated by the coupling, in the compression chamber, there is no other liquid involved, so the compressed air is clean and oil-free.

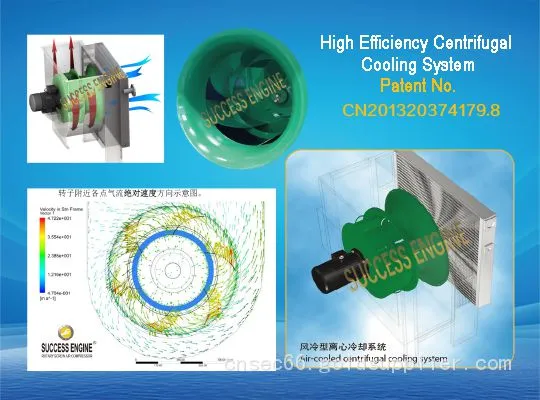

High Efficient Centrifugal Cooling System

(Patent No.:CN201320374179.8)

The high-power unit adopts side-entry & top-discharge closed frequency conversion fan cooling structure. Equip with centrifugal fan, the frequency conversion automatically adjusts the fan speed according to the system temperature change.

The low-power unit adopts a low-speed axial fan with special angle blades, which is combined with a cooler to form a closed cooling system structure. The fan speed is low and with stable wind pressure.

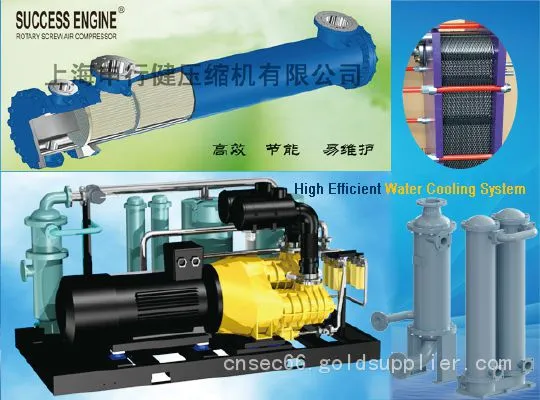

High Efficient Water Cooling System

For high-power unit, unique shell-and-tube baffle and tube-column was designed and installed, effectively improves the heat exchange rate between compressed air and water, and reduces the water consumption.

For low-power unit, the plate corrugated superimposed structure can be selected, so that the fluid can form turbulent flow, size is small but with good heat dissipation effect.

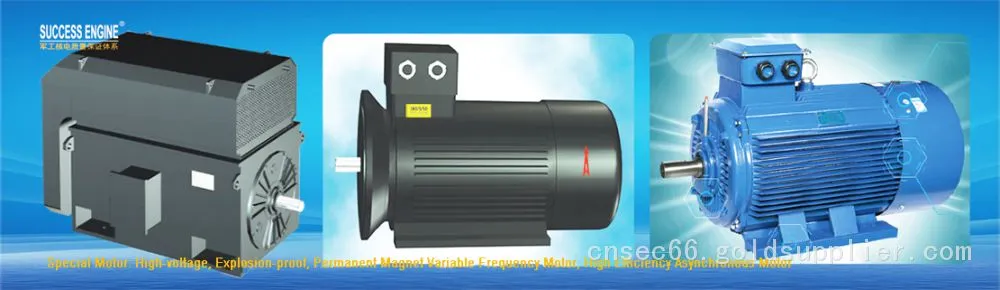

High-efficiency Electric Motor

Use special high output efficiency motor with high-quality bearings according to the site power supply and process conditions, and available for different voltage, frequency, protection level, insulation level, service factor, VFD, explosion-proof and other required types.

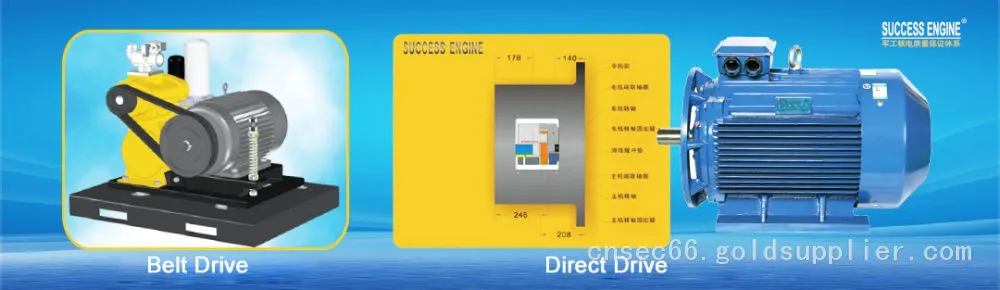

Stable and Efficient Transmission Structure Design

The low-power unit adopts belt drive structure, with specially designed automatic tensioning device, easy for maintenance. The high-power unit adopts a high-strength intermediate coupling combined with a high-load elastic coupling device. This structure has the advantage of high transfer efficiency, noise reduction and easy maintenance.
