Description：

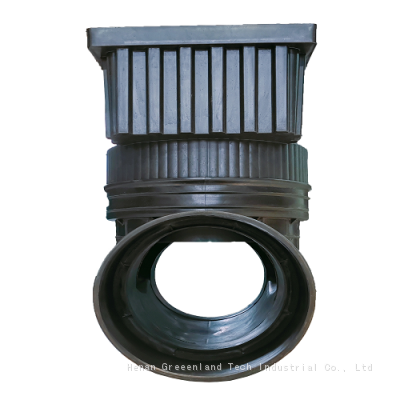

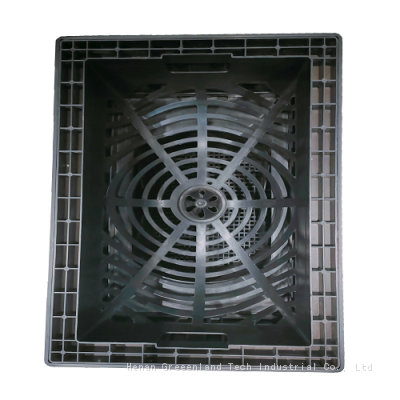

Multi-Layer Filtration provides initial filtration of rainwater, making the rest of the purification easier and more effective.Rainwater purifiers are used for neighborhood roads, and rainwater collection outlets on both sides of municipal roads. They provide primary filtration of rainwater, removal of suspended solids, disinfection and odor control.
Technical Data：
Material | HDPE | Size(mm) | 620×420×710 |
Load Capacity | 20KN/M² | Suspended sediment removal rate | 90%-95% |
structures | The rain perforated strainer、Arc interceptor frame、Receiver、filtration chamber、Filter cartridge、Rainwater Outlet Base | ||
Features：
1、Enhanced Water Permeability & Anti-Clogging.
2、Chamber-Supported Filter Packs for Elevated Water Pressure & Multi-Function Filtration.
3、Microbe Inhibition & Odor Control with Pressure-Activated Drainage.
Working Principle：
Gravity is used in this product, to separate the garbage and water automatically, and get clean rainwater.
Rainwater gravity is fully considered in this product, to achieve automatic shunt and filtration. It consists of a coarse net filter, filtering material that can absorb impurities, and a fine filter. Garbage will be sorted out and suspensions will be absorbed, so the water is clean and clear. It’s easy to cleanup, by taking out the internal component, and remove the garbage, to achieve an ideal purification.
Application:
neighborhood roads, and rainwater collection outlets on both sides of municipal roads.
