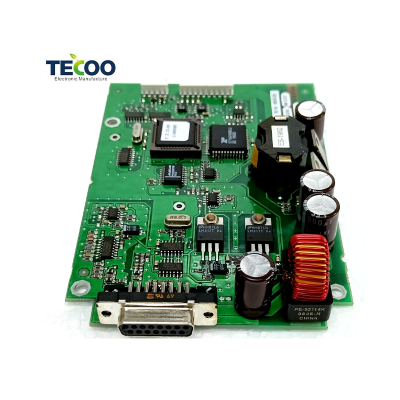

Digital Thermostat Control Board

Digital thermostat control boards are used in a variety of technologies across numerous industries. With our years of contract manufacturer experience, we bring high-end design, engineering and manufacturing services to a wide range of industries. With over 20 years of experience in this very special market, TECOO is an expert in electronics manufacturing solutions for this industry.

Basic parameters

Temperature range: -50-110℃

Control accuracy: 0.1℃

Refresh rate: 0.5S

High temperature protection: 0-110℃

Supply voltage: DC 12V

Quiescent current: ≤35MA, attracting current ≤65MA

Output voltage: DC 12V

Output power: 20A relay

Measurement input: NTC (10K 0.5%) waterproof sensor

Environmental requirements: -10~60℃, humidity 20%-85%

Digital Thermostat Control Board Function

◆ High current: Our digital temperature control board adopts high-density PC board mounting technology, although the size is small, the switching capacity can reach 10A.

◆ The controller automatically performs relay ON/OFF. The output of the thermostat is 10A relay, which can meet various high-power loads

◆ LCD Display: With a bright LCD display design, people can clearly check the temperature from any angle.

◆ User-friendly functions: The temperature control module has real-time temperature reporting, temperature correction function, high temperature alarm, emergency stop function, and supports UART settings, making the module reliable and easy to use.

Scope of application

With a digital thermostat control board, it can be widely used in household appliances, office machines, audio, equipment, automobiles, etc.

TECOO as a expert electronic manufacturing service provider for digital thermostat control board, from printed circuit board assembly (PCBA) to complete product assembly and testing, it means handling complex electronic circuit boards (may have additional mechanical enclosures - sheet metal Gold, CNC, Plastic) to achieve perfect results for our customers.
