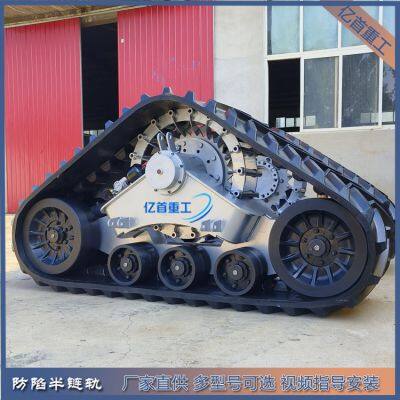

Help CenterThe Installation of 762 Anti Sinking Half Chain Rail on the Deere Harvester Has a Good Effect
Related Products
-
Converting a Harvester Into a Triangular Half Track Anti Sinking Vehicle is Also UsefulUS$ 2800 - 28000MOQ: 1 Pair -
The Anti Slip and Anti Sinking Effect of the Agricultural Triangular Track Chassis is Good for Half Track Muddy Land OperationsUS$ 2800 - 28000MOQ: 1 Pair
-
Replacing the Tires of Agricultural Harvesters With Triangular Track Assembly to Prevent Sinking and SlippingUS$ 2800 - 28000MOQ: 1 Pair
-
Converting a Harvester to a Triangular Track Semi Chain Track to Prevent Sinking and Prevent SlippingUS$ 2800 - 28000MOQ: 1 Pair
-
Tractor Modification With Triangular Track Semi Chain Track Has Good Passability and Compaction RateUS$ 2800 - 28000MOQ: 1 Pair
Crawler walking mechanisms are widely used in field work vehicles such as construction machinery and tractors. The walking conditions are harsh, requiring the walking mechanism to have sufficient strength and stiffness, as well as good walking and turning capabilities. The tracks are in contact with the ground, while the drive wheels are not in contact with the ground. When the motor drives the driving wheel to rotate, the driving wheel continuously rolls up the track from the rear through the meshing between the teeth on the driving wheel and the track chain under the action of the driving torque of the reducer. The grounded part of the track exerts a backward force on the ground, while the ground correspondingly exerts a forward reaction force on the track, which is the driving force that propels the machine forward. When the driving force is sufficient to overcome the walking resistance, the supporting wheels roll forward on the surface of the track, causing the machine to move forward. The front and rear tracks of the whole machine's track walking mechanism can turn independently, thus making its turning radius smaller.
(1) Lightweight and replaceable
(2) Low noise, low vibration, low impact
(3) High passability and stability
(4) Low grounding voltage, high maneuverability

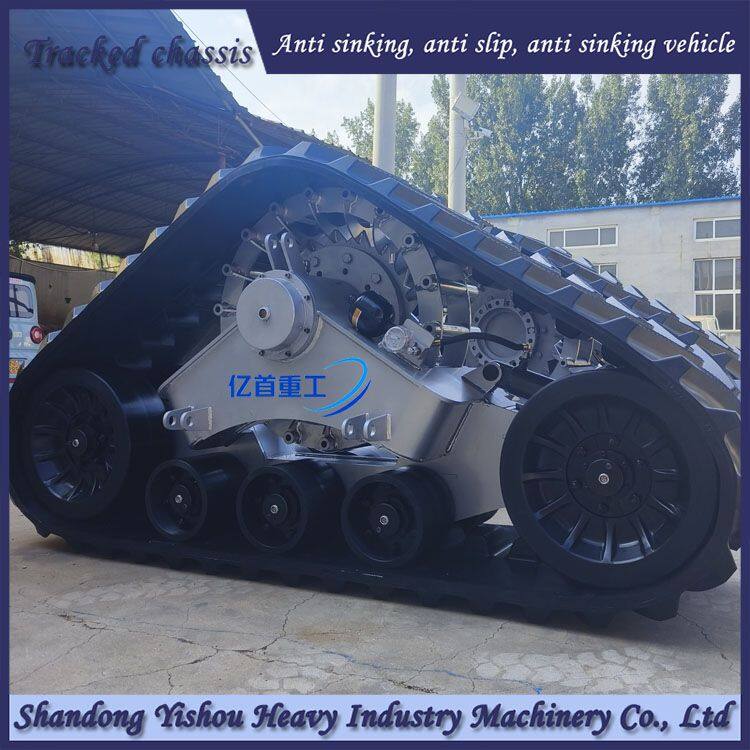

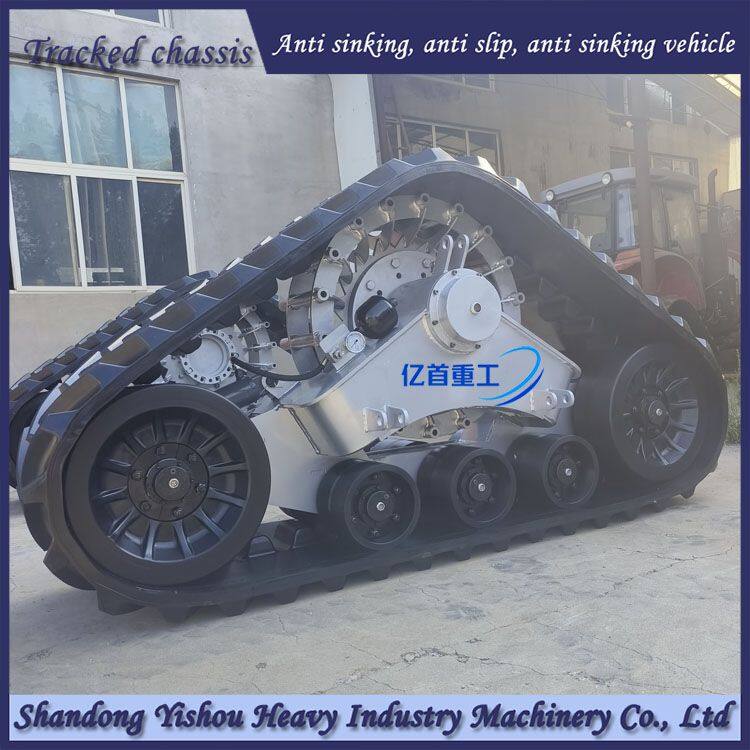

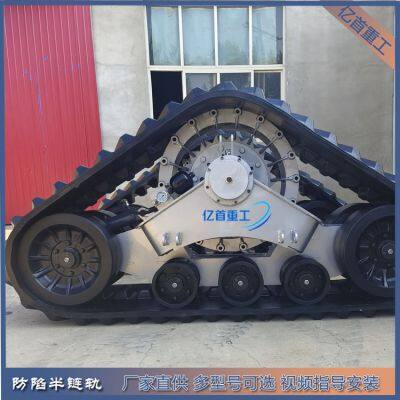

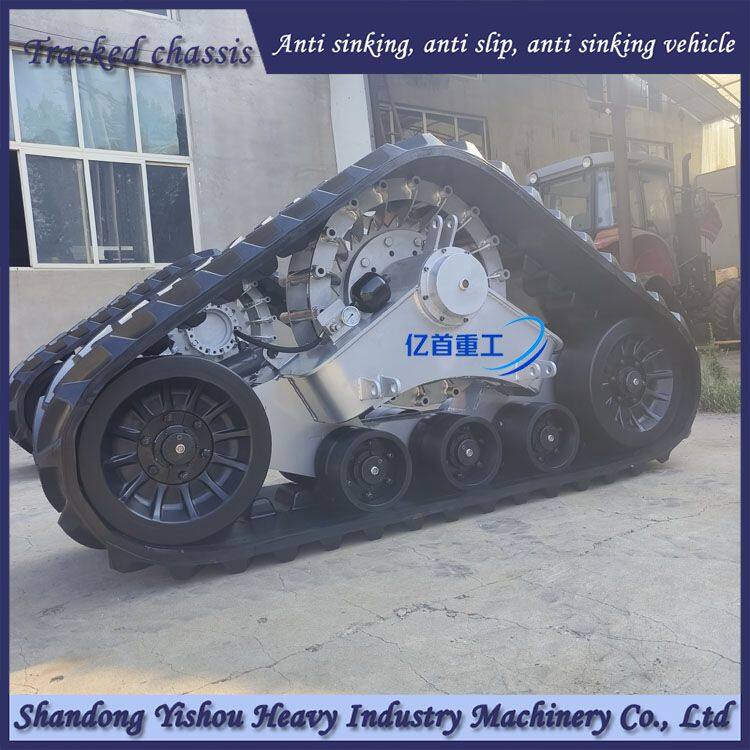

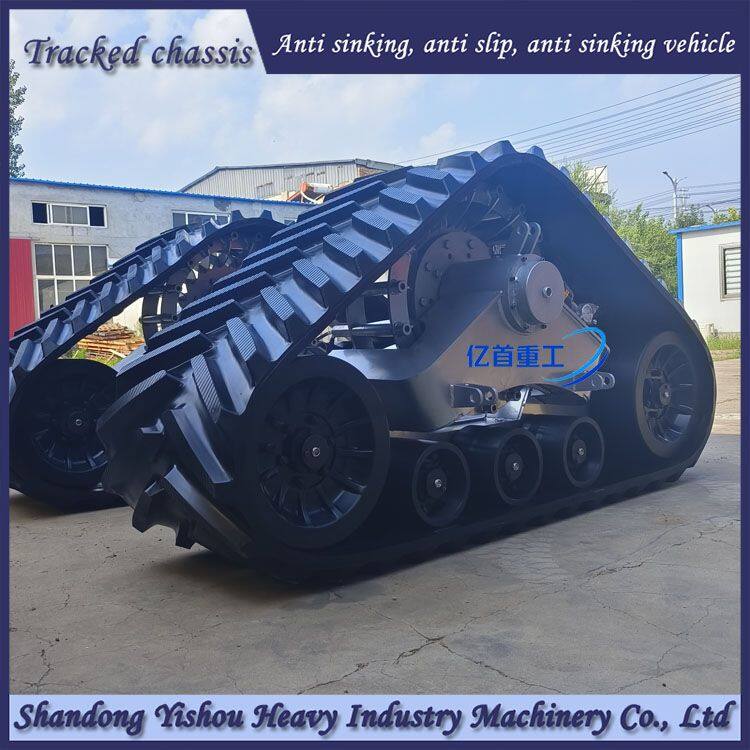

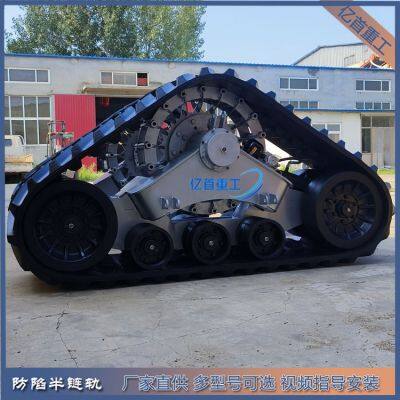

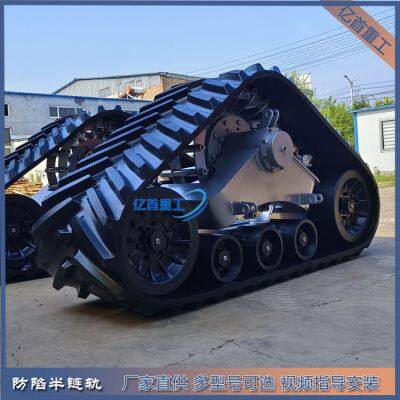

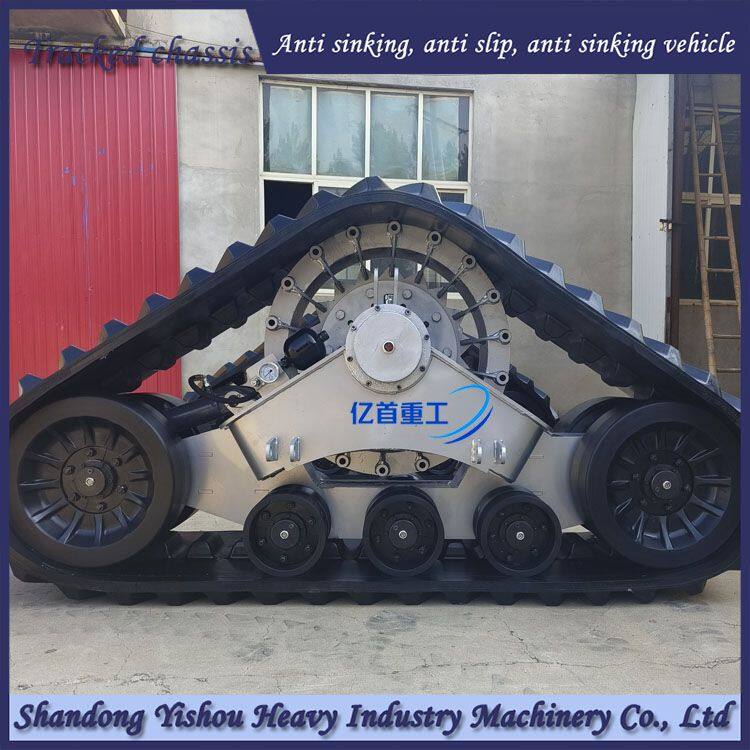

Triangle rubber track wheels are used for oil and gas exploration in soft surface areas such as deserts, ice and snow, with strong adaptability and high reliability. The technical solution adopted by this utility is a triangular rubber track wheel, including a driving wheel, a tensioning wheel, a tensioning wheel axle, a tensioning oil cylinder, a front swing beam, a support swing arm axle, a swing frame, a support wheel, a support swing arm, a rear swing beam, a guide wheel, a guide wheel axle, a rubber track, a main frame, an axle, a frame, axle connecting bolts, axle housing bolt connecting pairs, and a support axle; The driving wheel is installed in the original position of the tire on the axle; Its characteristic is that the main frame is installed at one end of the axle connected to the frame, and the triangular track can be used for agricultural, construction, and transportation machinery. The difference from triangular tracks is that ordinary engineering tracks cannot meet the requirements of use in terms of internal structure and material application.
The characteristics of triangular tracks are light weight and high strength
